Exploring the Differences Between SMD and DIP Outdoor LED Displays

Introduction:

Outdoor LED displays have revolutionized the world of advertising, entertainment, and information dissemination. Their vivid colors, dynamic content, and high visibility make them ideal for outdoor applications such as billboards, digital signage, sports arenas, and more. Two prominent technologies used in outdoor LED displays are Surface-Mount Device (SMD) and Dual In-line Package (DIP). In this article, we will delve into the key differences between these two technologies, exploring their pros and cons to help you make an informed choice for your outdoor LED display needs.

Chapter 1: Understanding SMD Outdoor LED Displays

1.1 What is SMD technology?

Surface-Mount Device (SMD) technology is a relatively newer development in the LED display industry. SMD LEDs are smaller and more compact than traditional DIP LEDs. They are manufactured by mounting tiny LED chips directly onto the surface of a printed circuit board (PCB) and sealing them with epoxy.

1.2 Advantages of SMD Outdoor LED Displays:

1.2.1 High Resolution: SMD displays can achieve higher pixel density, resulting in better image clarity and sharpness, making them suitable for applications that require detailed graphics or text.

1.2.2 Wide Viewing Angles: SMD LEDs offer improved viewing angles, ensuring that the display remains visible from various perspectives, even in bright sunlight.

1.2.3 Energy Efficiency: SMD technology is more energy-efficient, as it consumes less power to produce the same brightness levels as DIP displays.

1.2.4 Lightweight and Slim Design: SMD displays are thinner and lighter, making them easier to install and transport. This is especially beneficial for large-scale outdoor installations.

1.3 Limitations of SMD Outdoor LED Displays:

1.3.1 Durability: SMD LEDs are more fragile than DIP LEDs, making them less suitable for rough outdoor conditions where they may be exposed to impact or environmental stress.

1.3.2 Cost: Initially, SMD displays tend to be more expensive than DIP displays, although their lower energy consumption can result in long-term cost savings.

Chapter 2: Examining DIP Outdoor LED Displays

2.1 What is DIP technology?

Dual In-line Package (DIP) technology has been a staple in the LED display industry for several years. DIP LEDs are characterized by their individual encapsulated bulbs, which are mounted onto the PCB through holes.

2.2 Advantages of DIP Outdoor LED Displays:

2.2.1 Robust and Weather-Resistant: DIP LEDs are known for their durability, making them suitable for outdoor applications where the display may be exposed to harsh weather conditions.

2.2.2 Brightness: DIP displays are capable of producing high brightness levels, making them visible even in direct sunlight.

2.2.3 Longevity: DIP LEDs have a longer lifespan compared to SMD LEDs, which can result in reduced maintenance costs over time.

2.3 Limitations of DIP Outdoor LED Displays:

2.3.1 Lower Resolution: DIP displays typically have lower pixel density, which can result in reduced image quality and readability, especially for fine details and text.

2.3.2 Limited Viewing Angles: DIP LEDs have narrower viewing angles, which may lead to decreased visibility from certain angles, affecting the overall viewing experience.

2.3.3 Bulkier Design: DIP displays are thicker and heavier, making them more challenging to install and maintain, particularly for large installations.

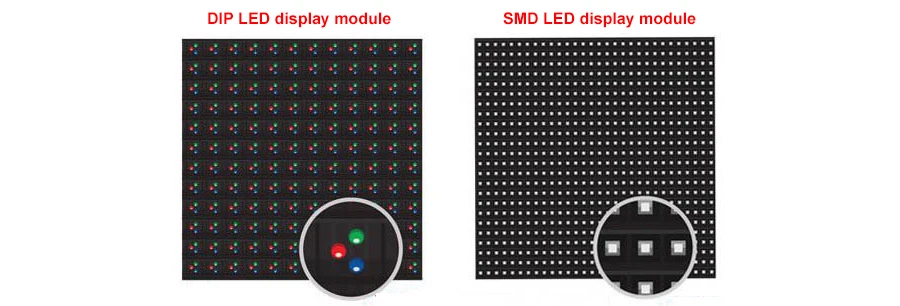

Chapter 3: Comparing SMD and DIP Outdoor LED Displays

3.1 Resolution and Image Quality:

SMD displays excel in terms of resolution and image quality due to their higher pixel density. They are well-suited for applications where clarity and fine details matter, such as close-distance viewing.

DIP displays, on the other hand, may have lower resolution, which could affect image quality and legibility, particularly when viewed up close or with small text.

3.2 Viewing Angles:

SMD displays offer wider viewing angles, ensuring that the content remains visible from various perspectives. This is advantageous for outdoor installations where viewers may approach from different angles.

DIP displays have more limited viewing angles, which may require careful consideration of the display’s placement to ensure optimal visibility.

3.3 Durability and Weather Resistance:

SMD displays are generally less durable than DIP displays. They are more susceptible to damage from impact and may not be as suitable for extreme outdoor conditions with heavy rain, snow, or strong winds.

DIP displays are renowned for their robustness and weather resistance. They can withstand harsh outdoor environments, making them a preferred choice for long-term outdoor installations.

3.4 Energy Efficiency:

SMD displays are more energy-efficient, consuming less power to achieve the desired brightness levels. This can result in lower operating costs over time, especially for large-scale displays.

DIP displays may consume more power to achieve similar brightness levels, leading to higher energy costs.

3.5 Installation and Maintenance:

SMD displays are easier to install and maintain due to their lightweight and slim design. This can translate into lower installation costs and reduced maintenance efforts, particularly for large displays.

DIP displays, being bulkier and heavier, require more substantial mounting structures and may incur higher installation and maintenance expenses.

Chapter 4: Choosing the Right Technology for Your Needs

4.1 When to Choose SMD Outdoor LED Displays:

For applications requiring high resolution and image quality, such as advertising with detailed graphics or close-distance viewing.
When energy efficiency and long-term cost savings are a priority.
In situations where wide viewing angles are crucial for audience engagement.
For projects where a sleek, lightweight design is preferred.

4.2 When to Choose DIP Outdoor LED Displays:

In extreme outdoor environments with harsh weather conditions.
For applications requiring high brightness levels, such as outdoor sports stadiums or direct sunlight exposure.
When durability and long lifespan are essential to minimize maintenance costs.
When budget constraints are a concern and initial cost savings are a priority.

Conclusion:

In the world of outdoor LED displays, the choice between SMD and DIP technology depends on various factors, including your specific requirements, budget, and the intended application. Each technology has its own set of advantages and limitations, and understanding these differences is crucial for making an informed decision. Whether you prioritize image quality, energy efficiency, durability, or cost-effectiveness, there is a suitable LED display technology to meet your needs.
