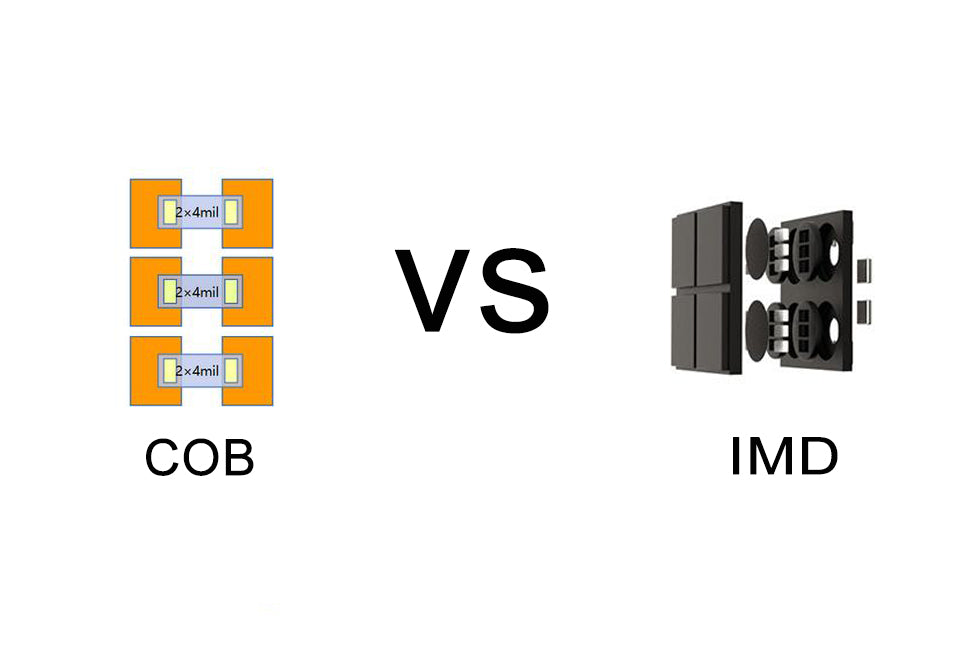

IMD vs COB Encapsulation: Key Differences Explained

The evolution of LED technology has led to remarkable advancements in display solutions, with LED encapsulation methods playing a crucial role in defining performance, durability, and efficiency. Among the most prominent encapsulation technologies are IMD (Integrated Matrix Device) and COB (Chip-on-Board). Both encapsulation techniques offer unique advantages and cater to specific applications, but understanding their differences is vital for making informed decisions when choosing an LED display solution. In this post, we will delve into the key distinctions between IMD and COB encapsulation, their features, applications, and the advantages they bring to the table.

What is IMD Encapsulation?

IMD, or Integrated Matrix Device, is an advanced encapsulation method primarily used in LED display manufacturing. In IMD encapsulation, multiple LED chips are integrated into a single package or unit. Typically, four LED chips are combined within one encapsulated structure, forming a pixel or sub-pixel cluster. This innovative design optimizes space utilization and enhances the structural stability of the display.

Key Features of IMD Encapsulation:

1. Integrated Pixel Design: IMD encapsulation integrates multiple LED chips into a single package, creating a compact and efficient structure.
2. High Precision: The integration process ensures precise alignment of LED chips, resulting in superior display uniformity and reduced color aberrations.
3. Improved Durability: The encapsulation process protects the LEDs from external damage, improving the display’s overall durability.
4. Cost-Effectiveness: By combining multiple chips into a single unit, IMD reduces the overall material and manufacturing costs.

Advantages of IMD Encapsulation:

• Enhanced Stability: The compact structure reduces the risk of individual chip failures, ensuring consistent performance.
• High Refresh Rates: IMD encapsulation supports faster refresh rates, making it ideal for applications requiring smooth motion, such as sports arenas and live events.
• Ease of Maintenance: The modular design simplifies maintenance and repair, as entire units can be replaced without affecting neighboring components.
• Improved Contrast Ratio: The precise placement of chips enhances the display’s contrast and brightness uniformity.

Applications of IMD Encapsulation:

• Indoor LED Displays: IMD is commonly used in fine-pitch indoor displays for conference rooms, retail spaces, and command centers.
• Rental LED Screens: Its durability and ease of maintenance make IMD ideal for rental applications.
• Broadcast Studios: High refresh rates and precise color rendering make IMD suitable for broadcast environments.

What is COB Encapsulation?

COB, or Chip-on-Board, encapsulation is a cutting-edge technology where LED chips are directly mounted and bonded onto a printed circuit board (PCB) without the need for traditional individual packaging. The chips are then encapsulated with a layer of epoxy resin, creating a seamless and robust protective layer.

Key Features of COB Encapsulation:

1. Direct Mounting: LED chips are mounted directly onto the PCB, reducing the overall size and weight of the display.
2. Seamless Surface: The epoxy resin encapsulation creates a smooth, uninterrupted surface that enhances the display’s visual appeal and durability.
3. High Reliability: The direct bonding process eliminates wire bonding, reducing the risk of connectivity issues.
4. Superior Heat Dissipation: The design facilitates efficient heat transfer, improving the longevity and performance of the LEDs.

Advantages of COB Encapsulation:

• Enhanced Durability: The seamless encapsulation protects the LEDs from physical damage, moisture, and dust.
• Wide Viewing Angles: COB displays offer excellent viewing angles, ensuring consistent visuals from various perspectives.
• Superior Waterproofing: The epoxy resin layer provides exceptional waterproofing, making COB suitable for outdoor applications.
• Reduced Pixel Pitch: COB encapsulation supports ultra-fine pixel pitches, enabling the creation of high-resolution displays.

Applications of COB Encapsulation:

• Outdoor LED Displays: The robust and waterproof design makes COB ideal for outdoor advertising, sports stadiums, and digital billboards.
• High-Resolution Displays: COB technology is used in applications requiring ultra-high-definition visuals, such as control rooms and high-end retail.
• Interactive Displays: The smooth surface of COB displays makes them suitable for touch-enabled applications.
• Public Spaces: Its durability and wide viewing angles make COB a preferred choice for airports, railway stations, and shopping malls.

Key Differences Between IMD and COB Encapsulation

Which Encapsulation Technology Should You Choose?

The choice between IMD and COB encapsulation depends on your specific requirements and application:

• Choose IMD if you need a cost-effective solution for indoor environments where precise color rendering and high refresh rates are critical. IMD is ideal for applications such as conference rooms, rental displays, and broadcast studios.
• Choose COB if durability, seamless design, and ultra-high resolution are priorities. COB encapsulation is perfect for outdoor displays, high-resolution control rooms, and interactive or public-facing displays.
