Description

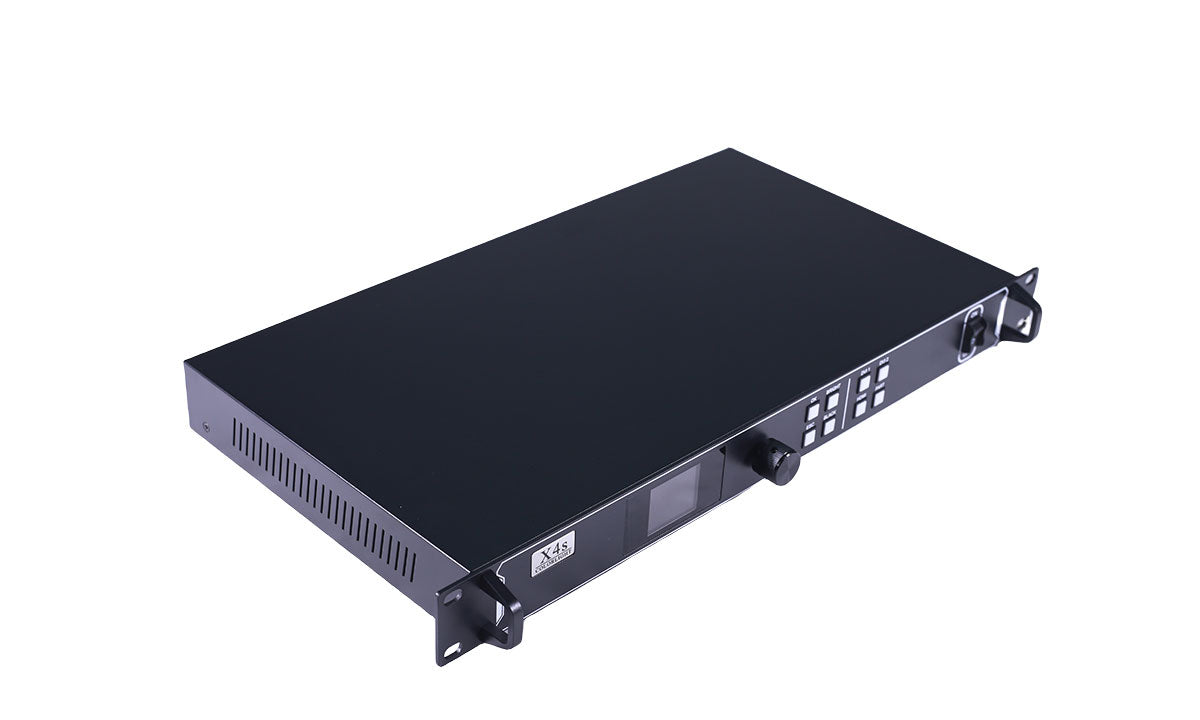

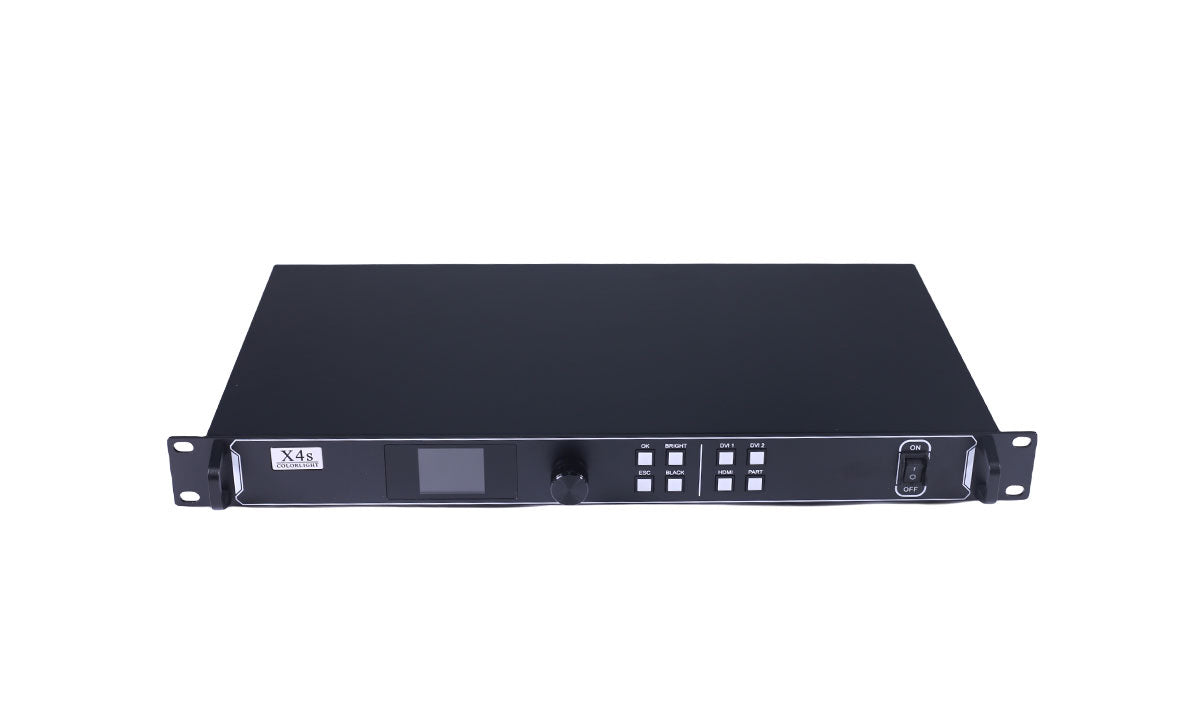

The X4s professional master is a professional LED display control device with powerful video signal reception and processing capability, receiving high-definition digital signals up to 1920*1200 pixels; supporting HDMI and DVI HD digital interface, seamless switching between multiple signals; supporting arbitrary scaling and cropping of video sources.
The X4s has four Gigabit Ethernet outputs and supports LED displays up to 4096 pixels and 2560 pixels on its own.
Colorlight X4s Colorlight Professional LED Display Panel Controller Features:
The -X4s has Class 2 video input interfaces, including 1 HDMI, 2 DVI.
-Input resolution: up to 1920*1200@60Hz, support any resolution setting.
-Video output carrying capacity: 2.6 million pixels, up to 4096 dots wide and up to 2560 dots.
-Supports arbitrary switching, scaling and cropping of video sources.
-Supports screen shifting.
Dual USB2.0 high-speed communication interfaces for computer debugging and arbitrary cascading between the main controller.
-Supports brightness and color temperature adjustment.
-Supports low light and high grey.
-Supports HDCP1.1.
-Supports the full range of Carlite receiver cards, multifunction cards, fiber optic transceivers.
Colorlight X4s Colorlight Professional LED Display Panel Controller Parameter:

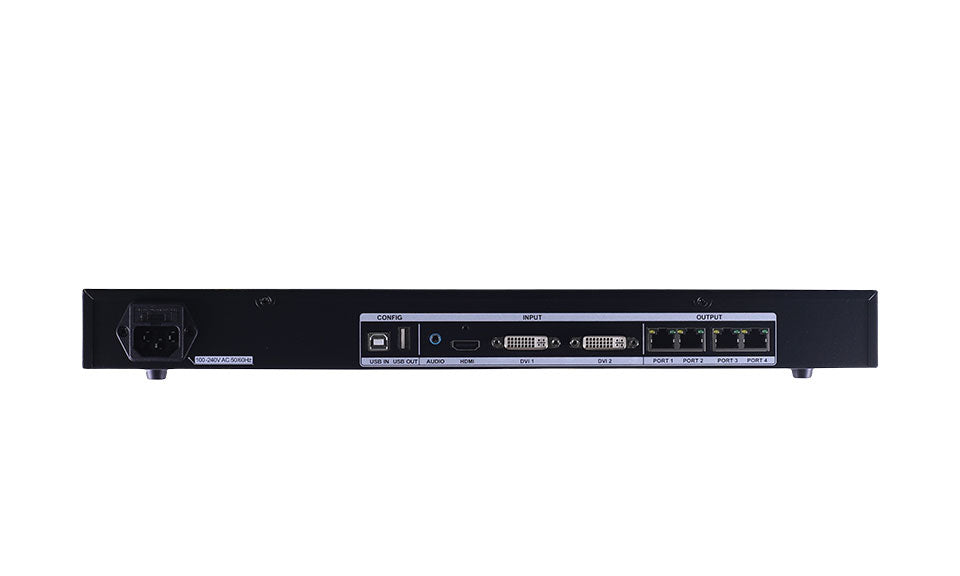

| Input Interface | |
| HDMI | HDMI |
| DVI 1 | DVI 1 |
| DVI 2 | DVI 2 |
| Output Interface | |
| Port1/2 | RJ45，2 Gigabit Ethernet ports |
| Controlling Interface | |
| USB_OUT | USB Used for cascading between x2s |
| USB_IN | USB input, connected to PC, used to debug parameters |
| Input index | ||
| Interface | Qty | Resolution |
| HDMI | 1 | HDMI 1.4 standard，Support 1920*1200@60Hz，Support HDCP |
| DVI 1 | 1 | DVI 1.0 standard，Support 1920*1200@60Hz，Support HDCP |
| DVI 2 | 1 | DVI 1.0 standard，Support 1920*1200，60Hz，Support HDCP |
| Specification | |
| Size | 1U standard |
| Input voltage | AC100~240V |
| Rated Power Consumption | 8W |
| Working Temperture | -20~60℃ |
