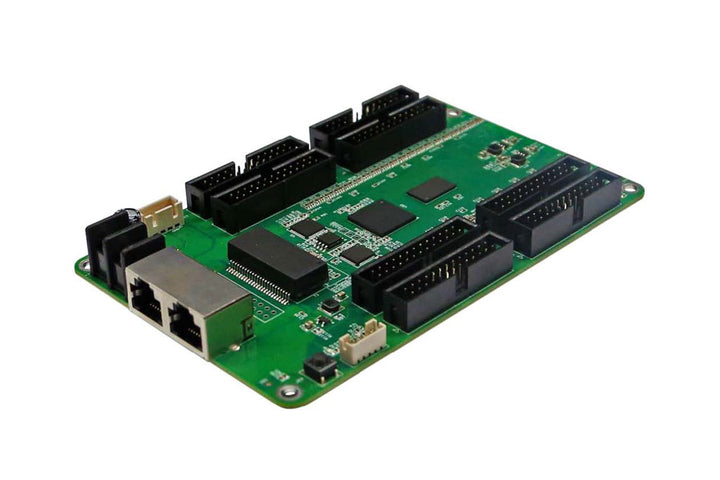

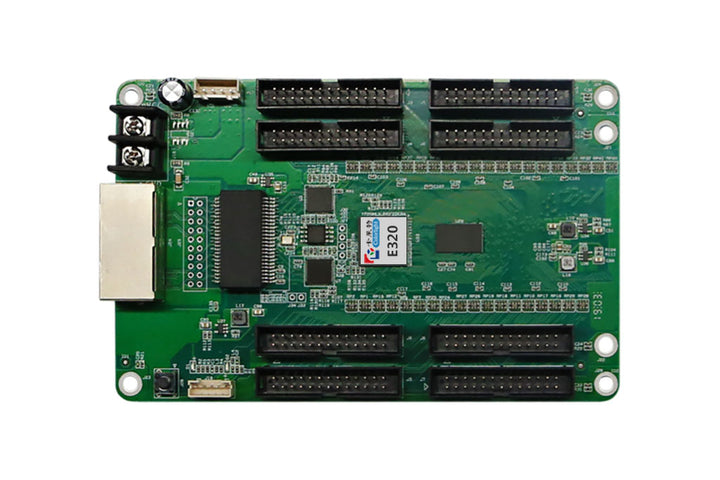

E320 LED Receiving Card

The E320 receiver card, is a cost-effective product launched by Carlite to better help customers save costs and reduce failure points, E320 has the functions of the current mainstream receiver card, but also for the development of a series of high-end display screen practical and powerful features, to bring customers value-added point, enhance the added value of the product.

• Single card supports 32 groups of RGB signal parallel output
• Max. 512*384 dots per card
• Support chroma and brightness integrated point-by-point correction
• Supports low light and high gray and color temperature adjustment
• Support for sewing technology
• Support arbitrary row, column and dot draws
• Fast upgrade and fast delivery of correction factors
• Network cable detection support
• Support any scan type between 1~1/64 sweeps, support 595 and other serial decoding scans.
• Support arbitrary sampling, support for data offset, can easily realize the shaped screen, spherical screen and other creative displays
• Support DC 3.3V~6V ultra-wide operating voltage.
• Supports the full range of Carlite sending devices
