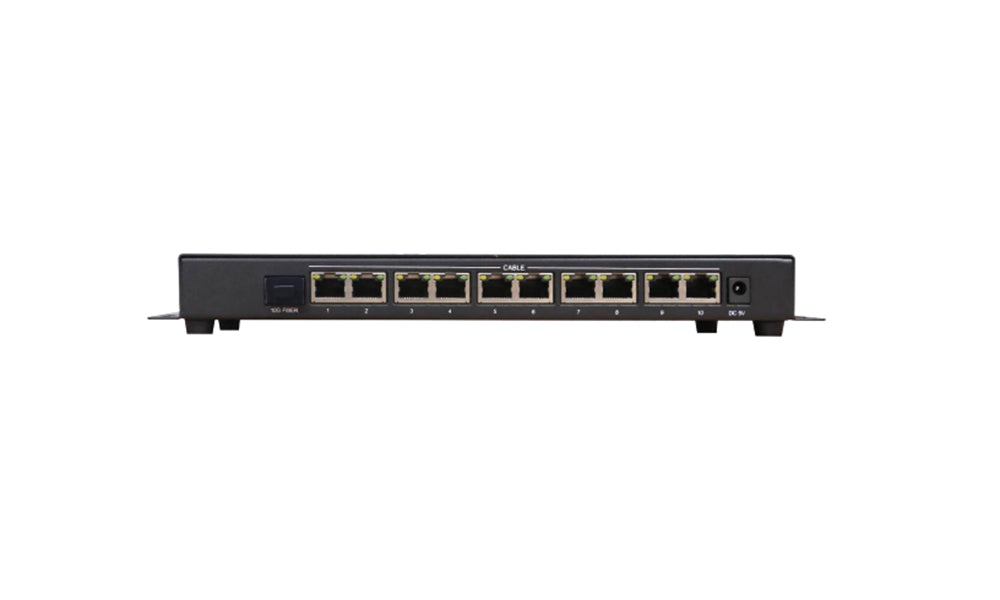

H10Fix is a fiber optic converter specially designed for large LED fixed display walls. It is small in size and light in weight and can be easily installed on the back or inside of the screen. At the same time, all its interfaces are on the same side of the body for easy wiring. . H10Fix has long transmission distance, high working stability, supports photoelectric two-way conversion, can be used without setting, and can be widely used in different fields such as radio and television, data centers, and monitoring centers.

Colorlight H10Fix Fiber Transceiver Features:

A.1 10G optical fiber port, the data transmission rate is 10Gb/s
B. 10 RJ45 Gigabit Ethernet ports, each data transmission rate is 1Gb/s
C. The standard optical module with a transmission distance of 2km
D. Specially designed for LED control system, high synchronization and stability
E. Photoelectric mutual conversion, self-adaptive bidirectional working mode
F. Support hot-swapping, no need for any drivers and settings, just connect and use
G. Single-mode dual-core working mode

Specification Download:

Colorlight H10Fix Fiber Transceiver Specification
