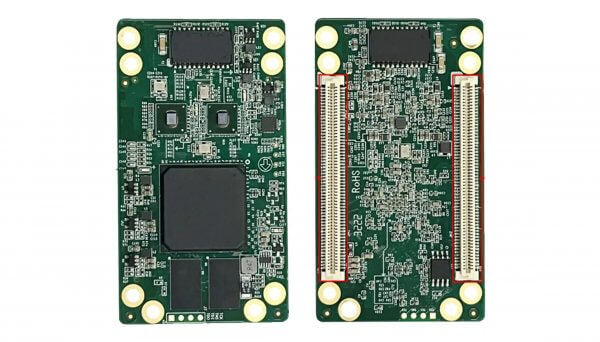

HC5 is a 5G high-end receiving card designed for the fine-pitch screens in high-end fixed display and flexible rental scenarios. lt adopts high-density connector interface and its network signal transmission rate is 5Gb/s, Compared with the conventional Gigabit Ethernetsystem, it effectively supports features such as high frame rateand deep color depth, dramatically increases the load capacity through one single network cable,which in turn, increases the number of cabinet cascades, simplifying cabling between the LED screen and the controller. The benefit of the wiring promotes solid LED cabinet structural design and improves overall stability.

Features

 Display effect
8bit/10bit/12bit video source input.
HDR.
Full gamma independent adjustment.
Infi-bit color extension.
Color temperature adjustment.
Grayscale refinement.
Better gray at low brightness.
 Calibration
Low-grayscale calibration.
Multi-layer calibration.
High precise per-pixel calibration in brightness and chromaticity
 Easy maintenance
Seam correction.
Highlight and OSD.
Color gamut adjustment.
Screen rotation.
Prestore picture.
Firmware upgrade without power restart.
5Gb/s high-capacity and high-speed data transmission.
Up to 16 intelligent modules.
Quick firmware upgrade and calibration coefficients download.
Cabinet temperature, humidity,voltageand power monitoring.
 Stable and reliable
Loop redundancy.
Dual receiving card hot backup.
PSU redundancy.
Configuration parameter redundancy.
Calibration coefficient redundancy.
Firmware redundancy and readback.
Ethernet cable status monitoring.
7x24h uninterrupted work.

Specification Download:
Colorlight HC5 LED Display Screen Receiving Card Specification
