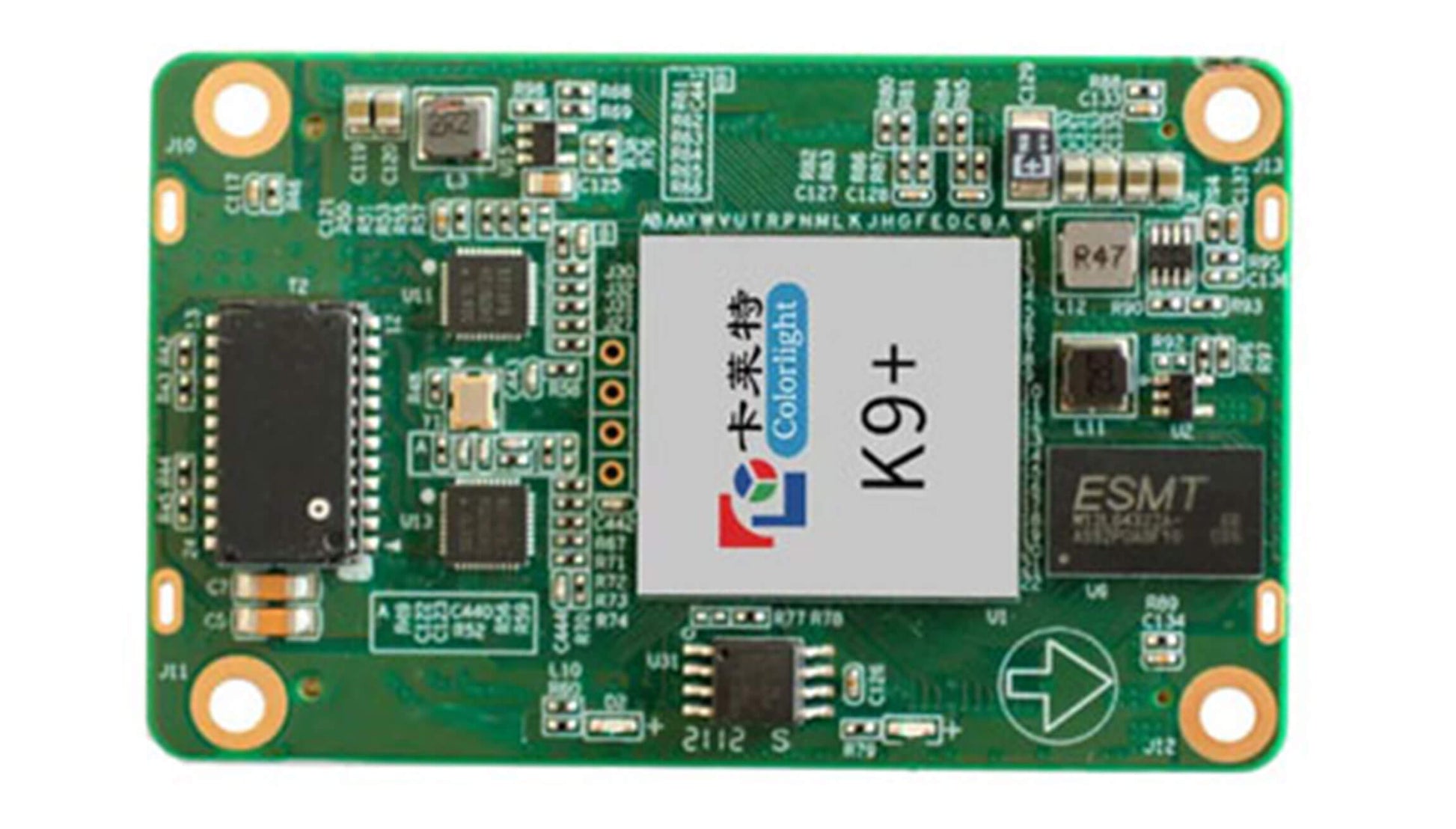

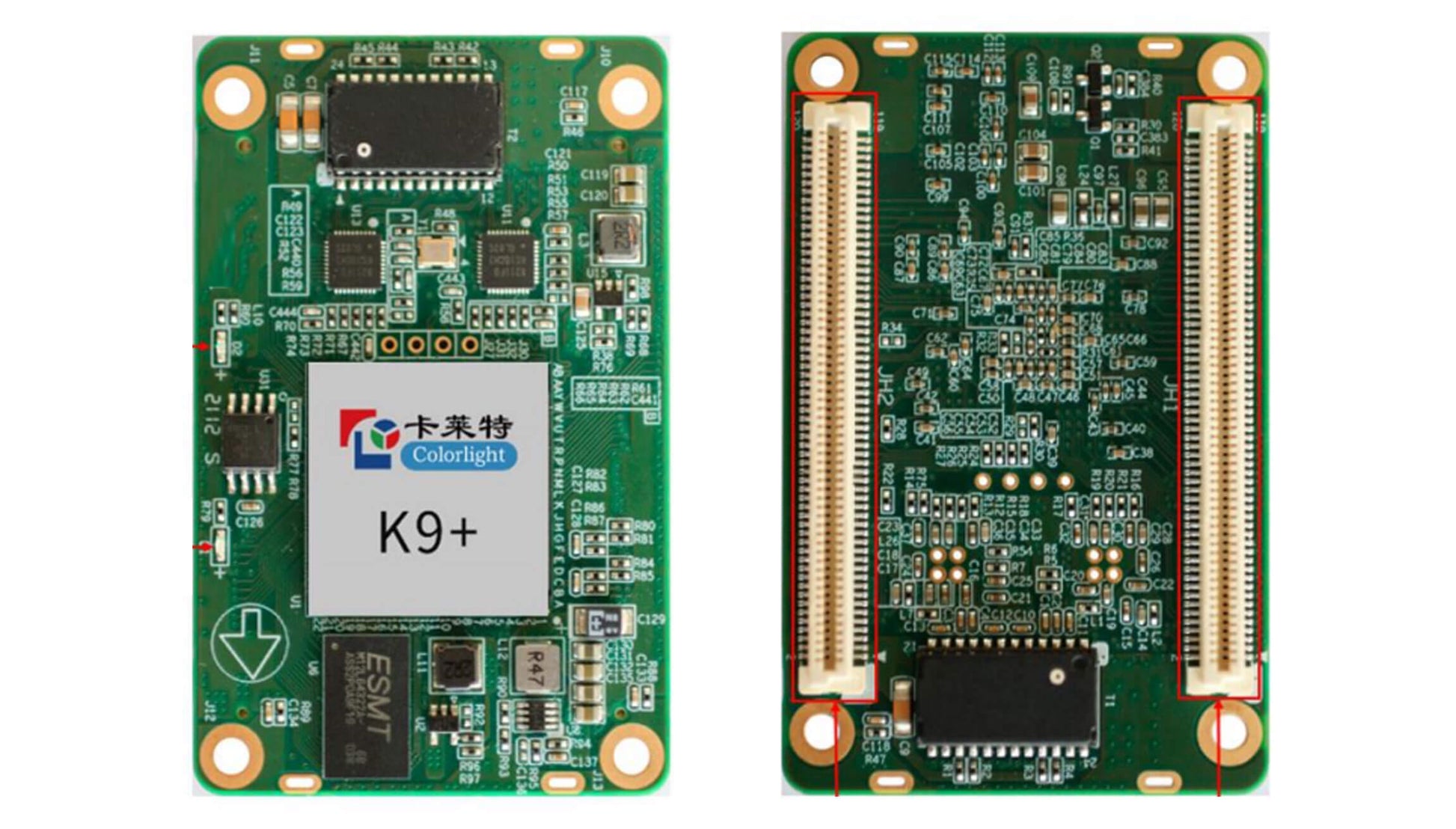

K9+ is a high-end receiving card developed for fine-pitch LED screens featuring large load capacity and up to 32 parallel data groups or 64 serial data groups. Due to its small form factor, K9+ is best fit into concise cabinets. With high-density connectors, it can achieve dustproof and shockproof effect, result in its high stability and reliability.K9+ not only has all the functions of mainstream receiving cards, but also a series of practical and powerful features helping high-end displays to maximize video performance with stunning clarity. K9+ can be perfectly used in high-end rentals as well as fine-pitch fix-installed LED screens.

Features

 Display effect
8bit/10bit/12bit video source input.
HDR10 and HLG.
Full gamma independent adjustment.
Infi-bit color extension.
Low latency.
Color temperature adjustment.
Grayscale refinement.
Better gray at low brightness.
 Calibration
Low-grayscale calibration.
Multi-layer calibration.
High precise per-pixel calibration in brightness and chromaticity
 Easy maintenance
Seam correction.
Highlight and OSD.
Color gamut adjustment.
Screen rotation.
Firmware upgrade without power restart.
Up to 16 intelligent modules.
Quick firmware upgrade and calibration coefficients download.
Cabinet temperature, humidity,voltageand power monitoring.
 Stable and reliable
Loop redundancy.
Dual receiving card hot backup.
PSU redundancy.
Firmware redundancy and readback.
Ethernet cable status monitoring.
7x24h uninterrupted work.

 Specification Download:
Colorlight K9+ LED Display Screen Receiving Card Specification
