Description

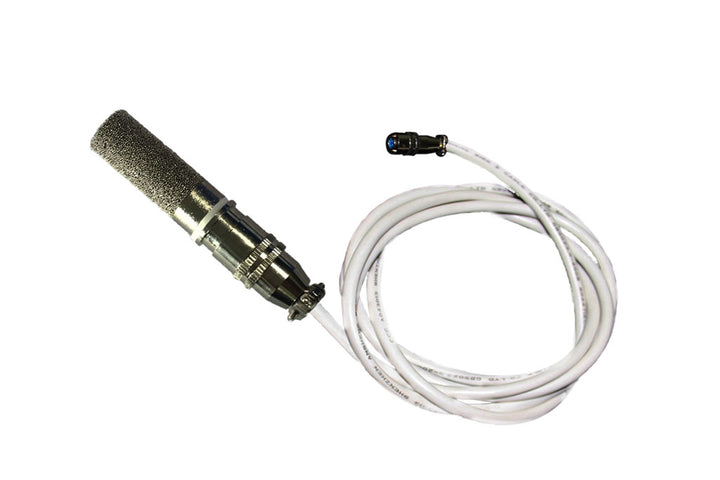

SSR-TEMP is a high-precision temperature and humidity sensor with good-looking and small appearance, it is designed with standard guide rail structure and it has easy wire connection and simple installation. SSR-TEMP adopts imported high-precision probe and ensures excellent measurement performance;
·RS485 interface, communication distance up to 1200 meter;
·Imported probe, high precision, wide range, good consistency;
·Designed with standard guide rail structure, easy installation;
·High stability and anti-interference ability;
·Input voltage: DC5~12V;
·MODBUS RTU standard communication protocol;
·Strong barrier property, first-class lightning protection.
| Specification | |
|---|---|
| Rated voltage | DC5V-12V |
| Measuring range | Temperature:-40℃~120℃ Humidity:0~100%rh |
| Measuring accuracy | Temperature: ±0.3℃ Resolution: 0.1℃ Humidity:±3%rh Resolution: 0.1rh |
| Output interface | RS485 |
| Communication protocol | MODBUS RTU |
| Communication address | 1-247 |
| Baud rate | 1200 bit/s,2400 bit/s, 4800 bit/s, 9600 bit/s, 19200 bit/s |
| Average power consumption | ＜0.1W |
| Wire length | 5 meter (standard) |
| Installation | Guide rail mounting, walls mounting indoors, ceilings mounting |
