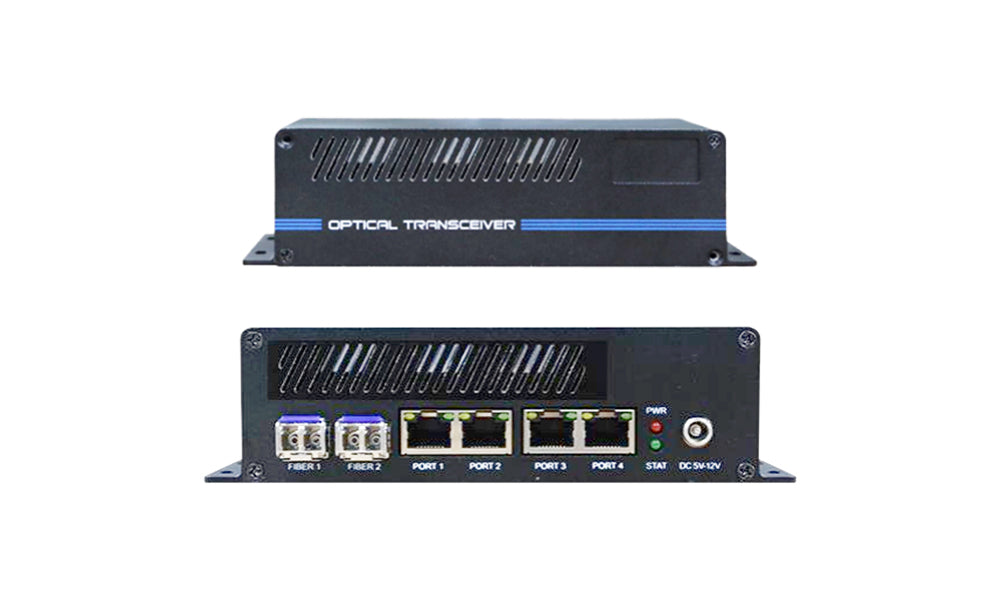

OP4 is a fiber optic transceiver specially designed to meet the long-distance transmission occasions of LED displays. It is small in size and light in weight, and can be easily installed on the back or inside of the screen. At the same time, all its interfaces are on the same side of the body, which is convenient for wiring. . OP4 has long transmission distance, high working stability, supports photoelectric two-way conversion, can be used without setting, and can be widely used in different fields such as radio and television, data centers, and monitoring centers.

Colorlight OP4 Fiber Transceiver for LED Control System Features：

1.2 optical fiber ports, the data transmission rate is 2.5Gb/s
2.4 RJ45 Gigabit Ethernet ports, each data transmission rate is 1Gb/s
3. Standard single-mode dual-core LC optical fiber module, transmission distance 2km
4. Specially designed for LED control system, high synchronization and stability
5. Photoelectric mutual conversion, self-adaptive two-way working mode
6. Support hot-swapping, no need for any drivers and settings, just connect and use
7. Single-mode dual-core working mode
8. Support paired use or use with a master controller with an optical fiber output interface
9. Front and rear ventilation design, excellent heat dissipation performance, suitable for closed high temperature working environment
