Description

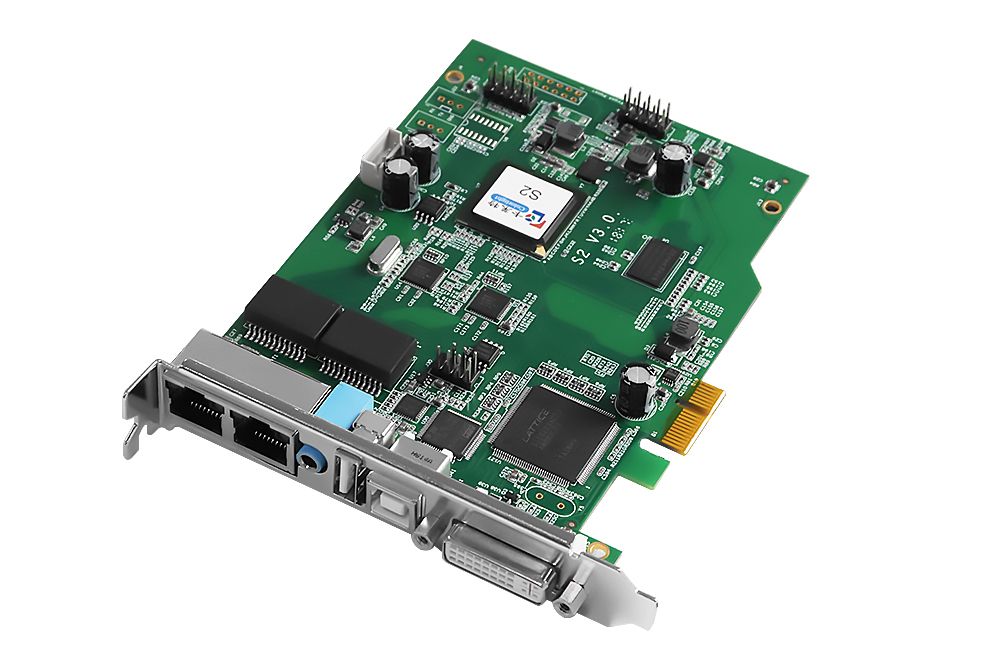

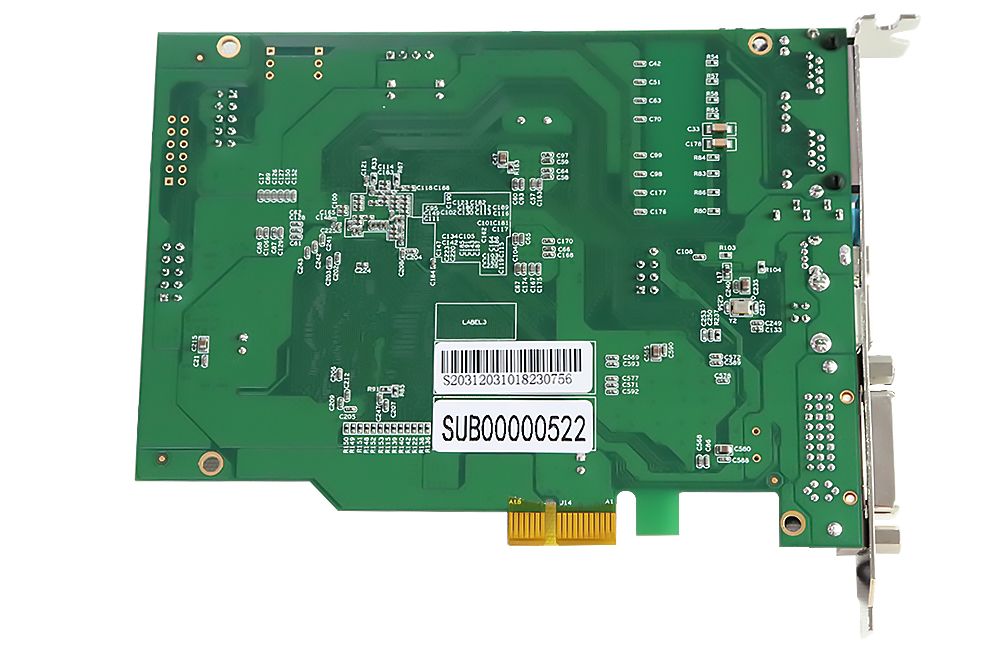

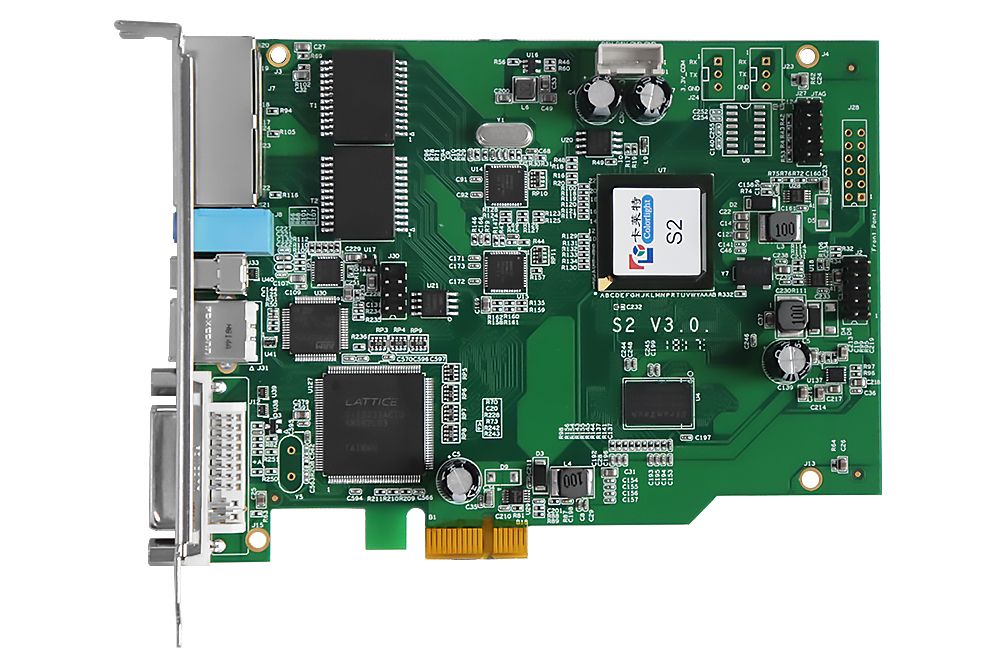

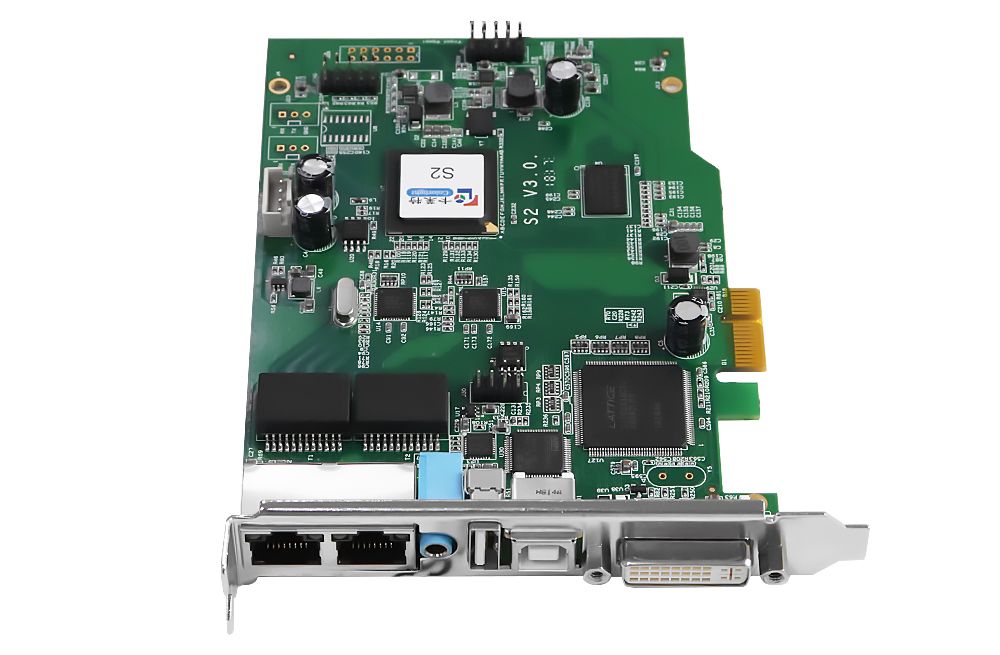

Colorlight S2 LED Display Sender Card is a new generation of sending card, S2 has improved its core chips, and the performance significantly improved. It adopts dual USB2.0 as the communication interface to achieve high speed communication between the PC and sending cards. S2 realizes cascading between multiple cards and much more convenient. Moreover, it equips PCI-E 1X interface, which is more versatile.
Colorlight S2 LED Display Sender Card Instead Colorlight IT7 LED Controller Card Features:
1) Support DVI signal input
2) Support audio input, synchronous transmission through the network cable
3) Maximum input resolution: 1920*1200 pixels.
4) Loading capacity: 1.31 million pixels. Max in Width: 2560 pixels, Max in Height: 2560 pixels.
5) 2 Gigabit Ethernet port outputs support screen arbitrary splicing
6) Dual USB ports for high speed configuration and easy cascading
7)Improved grayscale performance at low brightness
8) Equip with 1X PCI-E interface, more versatile
9) Wide working voltage with DC 3.8~12V
10) Compatible with all series of Colorlight receiving cards
Colorlight S2 LED Display Sender Card Parameter:
|
Video source interfaces
|
||
| Type | DVI | |
| Receiving Resolution | 1920*1080 in max | |
| Frame Rate | Standard 60Hz, and auto adjustment | |
|
Gigabit Ethernet Outputs
|
||
| Quantity | 2 ports | |
| Net Port Control Area | Each net port is 1280*512 pixels (or equivalent area). 2 net ports are 1280*1024 pixels (or equivalent area)
Single card max width up to 2560 pixels, and 2560 pixels in height |
|
| Transmission distance | CAT5≤140M；CAT6≤170M；Optical fiber: No limitation | |
| Splicing | Arbitrary | |
| Transmission Mode | Frame mode (Gigabit Ethernet) with CRC | |
| Connecting Device |
Connecting Device
|
|
| Receiving card | All series | |
| Peripheral Device | Multifunction cards, fiber optic transceivers, Gigabit switches | |
| Parameters |
Parameters
|
|
| Size | 140*105 mm | |
| Input Voltage | DC 3.8V-12V | |
| Power Consumption | 6W | |
| Weight | 100g | |
| External Interface |
External Interface
|
|
| Configuration Port | USB | |
| Real-time Configuration | Support | |
| Brightness and Chromaticity Adjustment | support | |
| Smart Detection System | DVI interface | |
| Real-time Clock | Support | |
| More Functions |
More Functions
|
|
| Multi Screen Control | Multiple screens with different sizes can be controlled at one time | |
| Background Playing | Support (Extended mode) | |
| Audio Transmission | Support | |
| BER Detection | Net cable quality and malfunction detection | |
