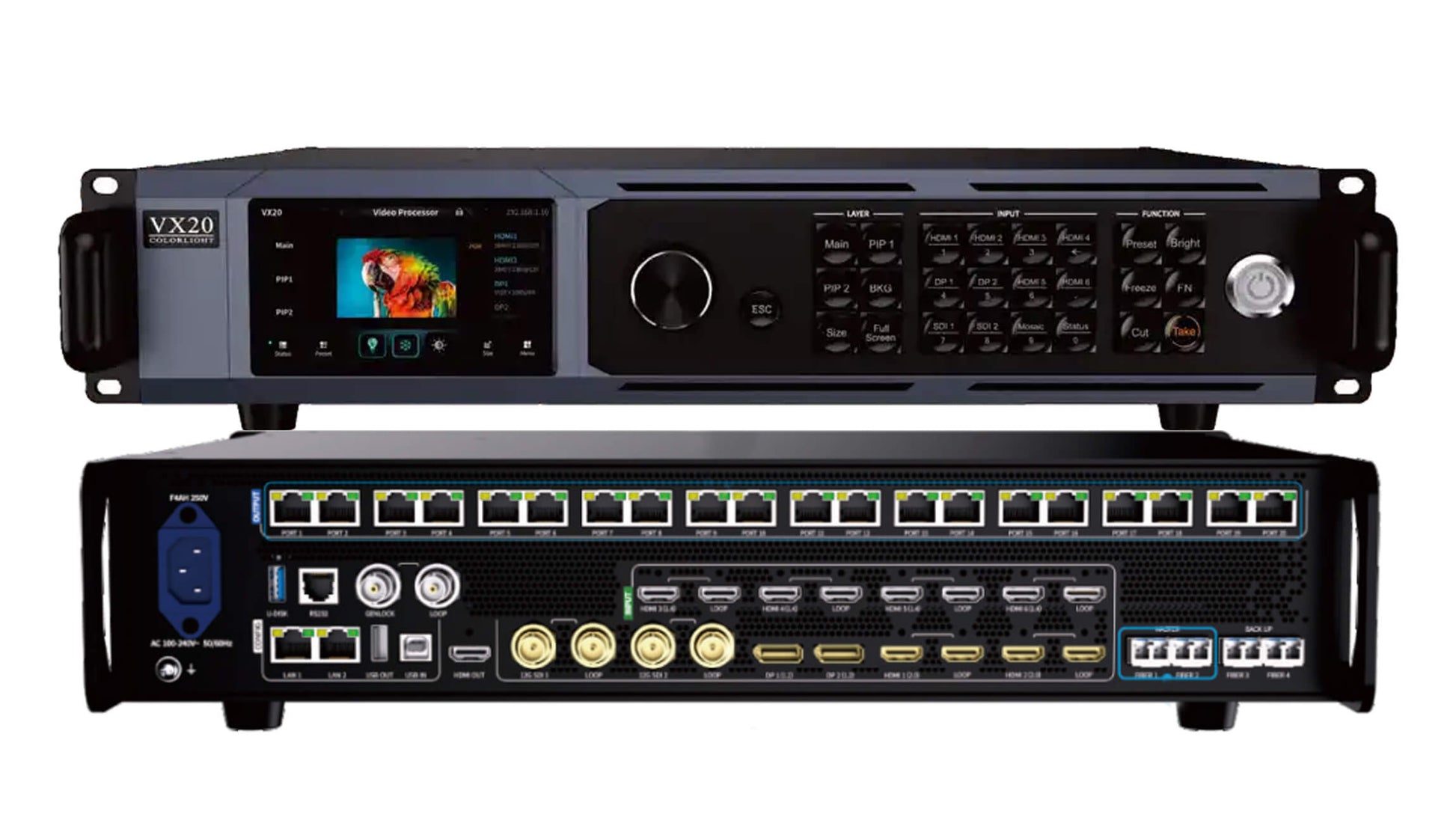

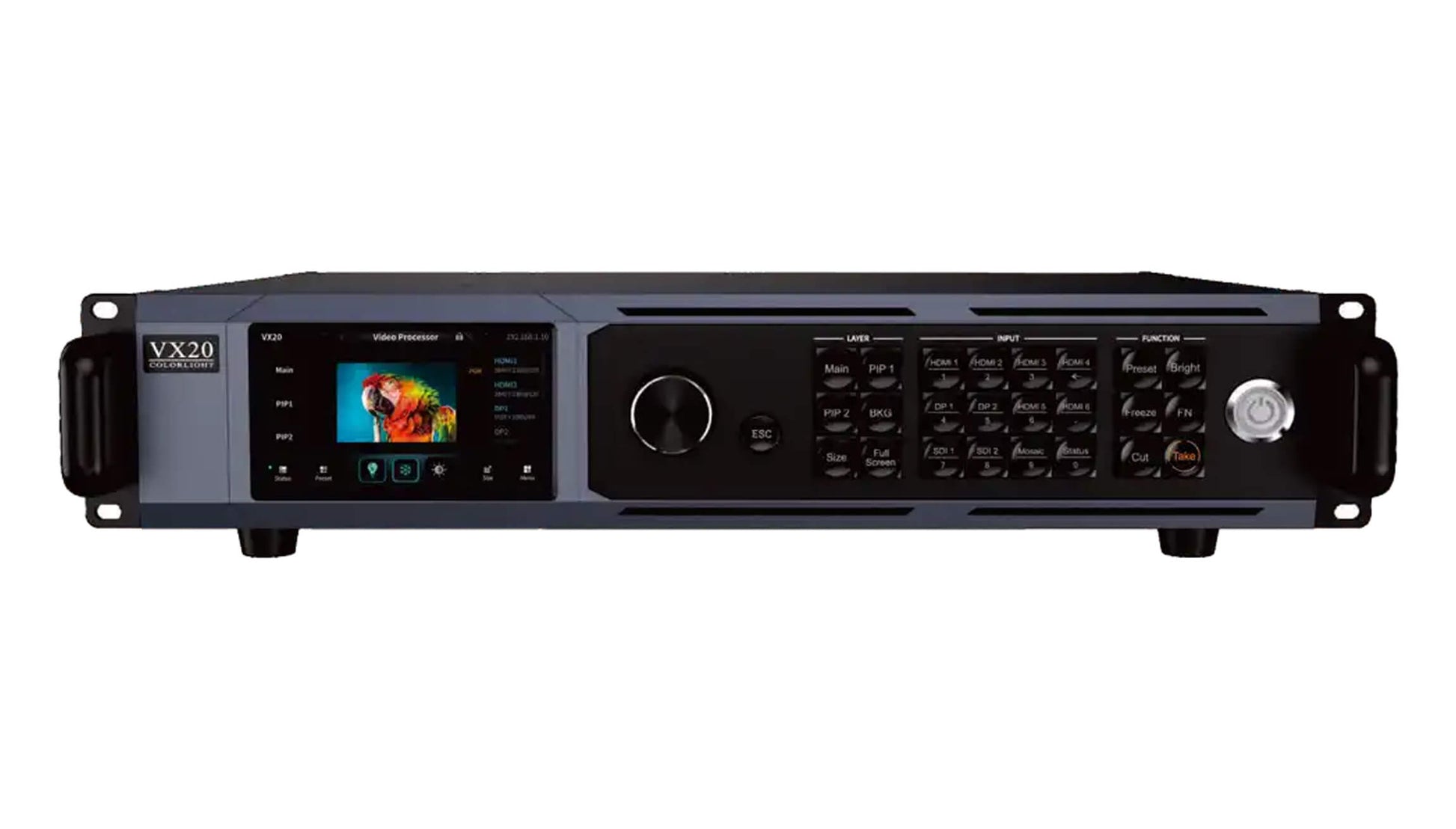

VX20 is a versatile video processor developed by Colorlight, succeeding the VX10 in the VX series. It excels in controlling and processing video display, and provides 3 operational modes Video processor mode, Fiber optic transceiver mode, and Bypass mode – making it ideal for diverse scenarios like stage rentals, grand performances and commercial exhibitions.
VX20 is capable of handling up to 13.1 million pixels, and features HDMI 2.0, DP 1.2, 12G-SDI, and HDMI 1.4 input ports for 4K video input. It can also transmit processed video content to LED displays via 1G Ethernet or 10G fiber ports. It supports 8/10/12-bit video input and 8/10-bit video output at super high definition, and allows for scaling and cropping of videos while maintaining high visual fidelity. Moreover, the device supports the display of BKG, OSD, and logos, and provides Multiviewer at high resolution.

Features

 Multiple ports

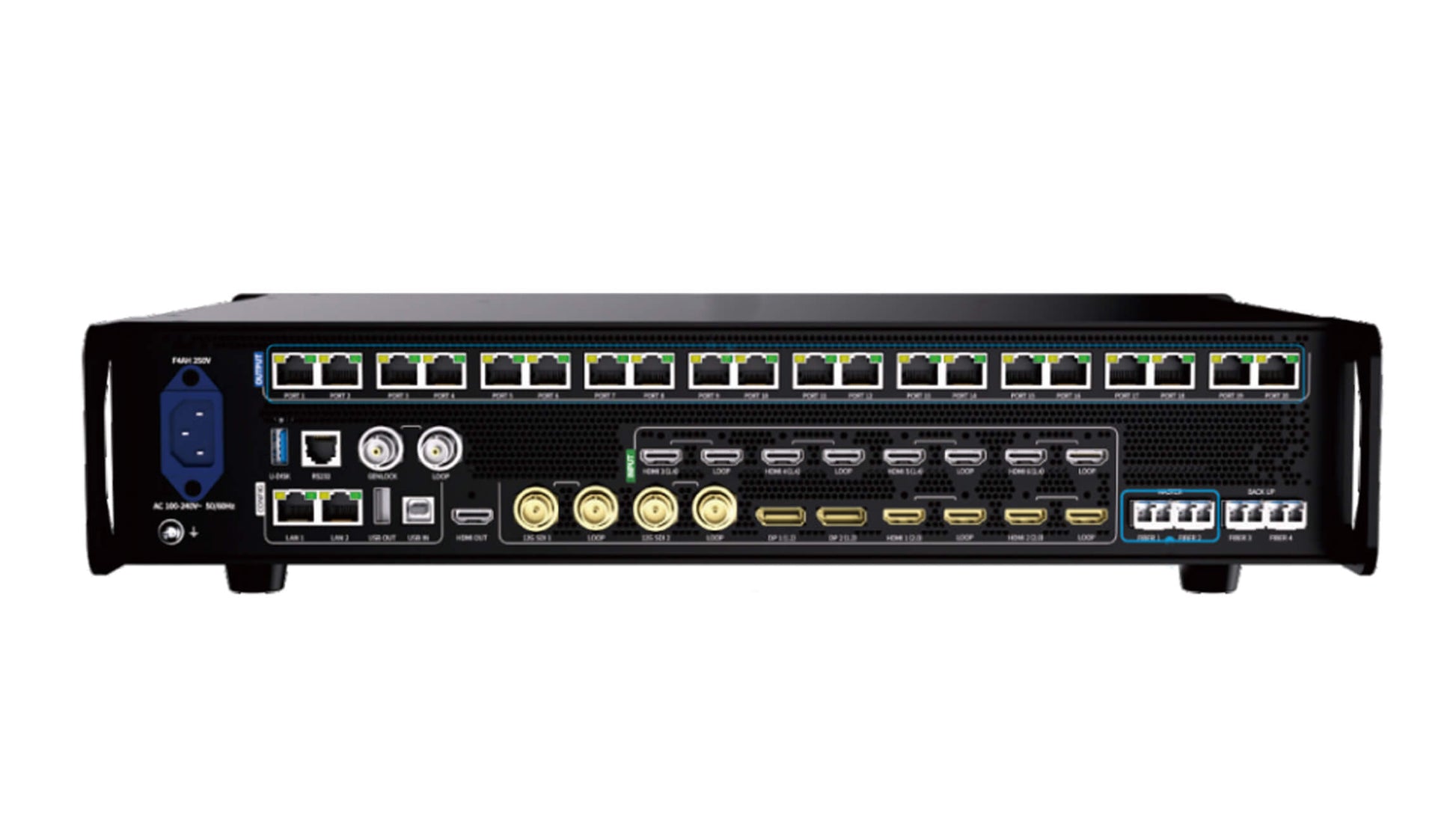

Provides multiple ports for inputting and looping out various signals, including:
2× HDMI 2.0+2× HDMI 2.0_LOOP
2X DP 1.2
2× 12G-SDI+2× 12G-SDI_LOOP
4X HDMI 1.4*+4× HDMI 1.4_LOOP
 Large load capacity
Total capacity: up to 13.1 million pixels
Max. width: 16,384 pixels; Max. height: 8192 pixels
20× Gigabit Ethernet ports for output
4x 10G fiber ports for output
1× HDMI 2.0 port for output
 High image quality, true 4K
True 4K: 4096×2160@60Hz
True HDR
Input color depth: 8/10/12 bit
Output color depth: 8/10 bit
Frame rate: up to 240Hz
 Powerful video processing
Canvas view: PVW&PGM/PGM Only
Multi-layer display: supports displaying 3 layers (all at 4K resolution) at a time, and allows for image splicing and Picture-in-Picture (PiP).
Supports scaling and cropping of video sources.
Supports opacity settings for overlays.
Supports fade in/out.
Supports precise color management.
Multiple supported color formats: RGB, YCbCr444, and YCbCr422.
 Versatile,Supports multiple working modes
 Customizable display
 All-round preview and monitoring
 Intuitive UI interaction, easy operation
 Multiple redundancy solutions, stable and reliable

Specification Download:
Colorlight VX20 LED Display Video Processor Specification
