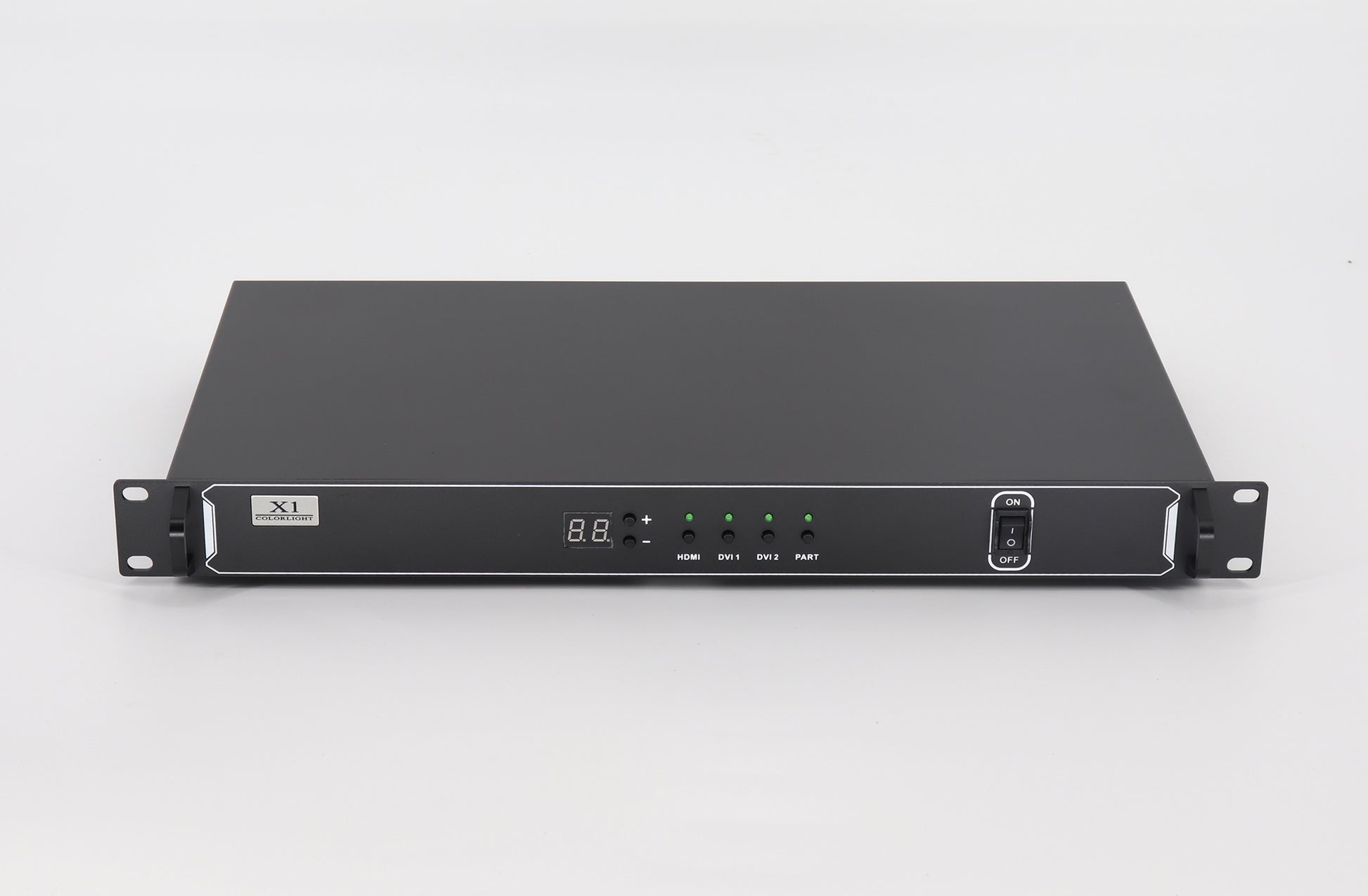

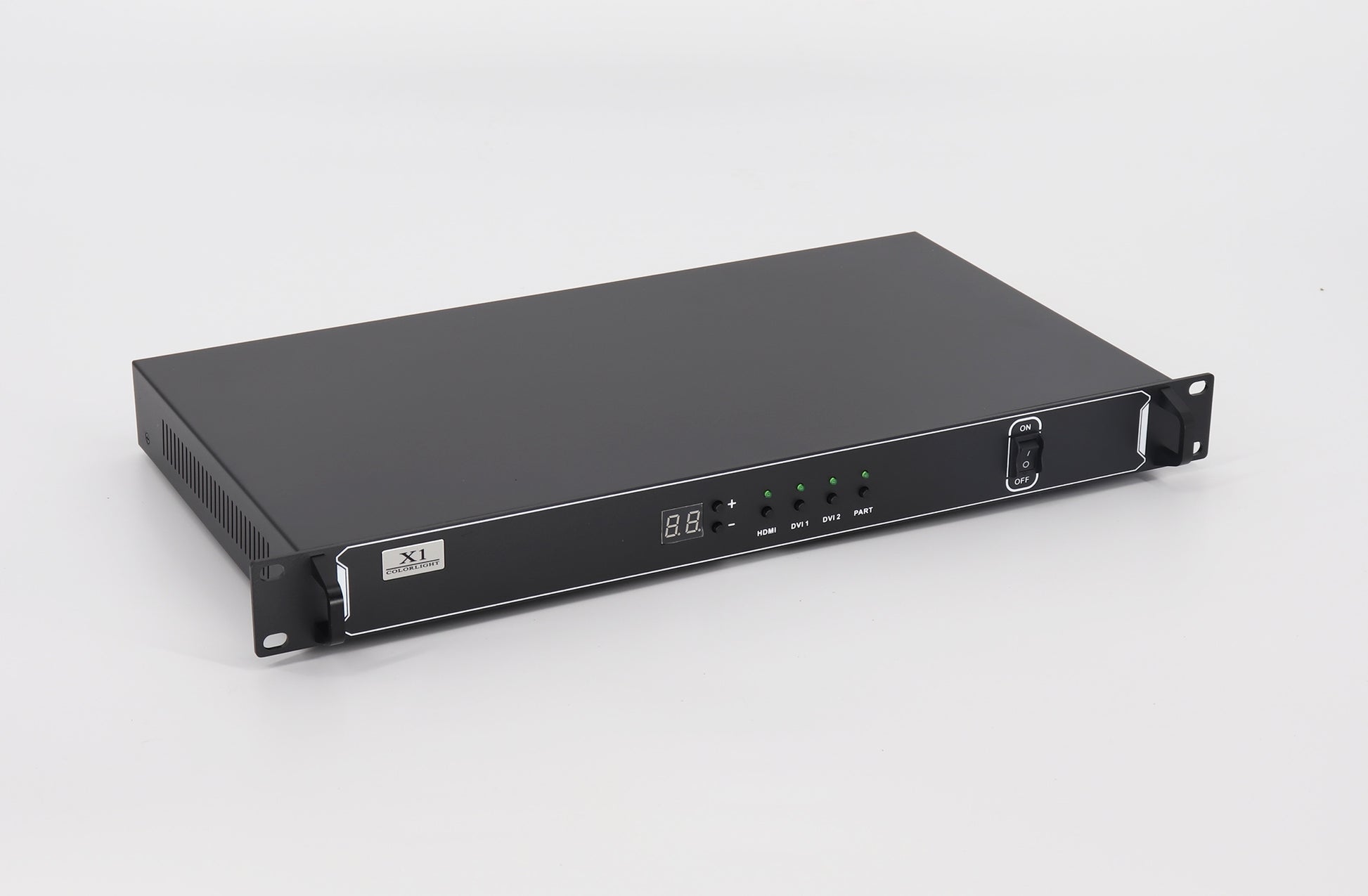

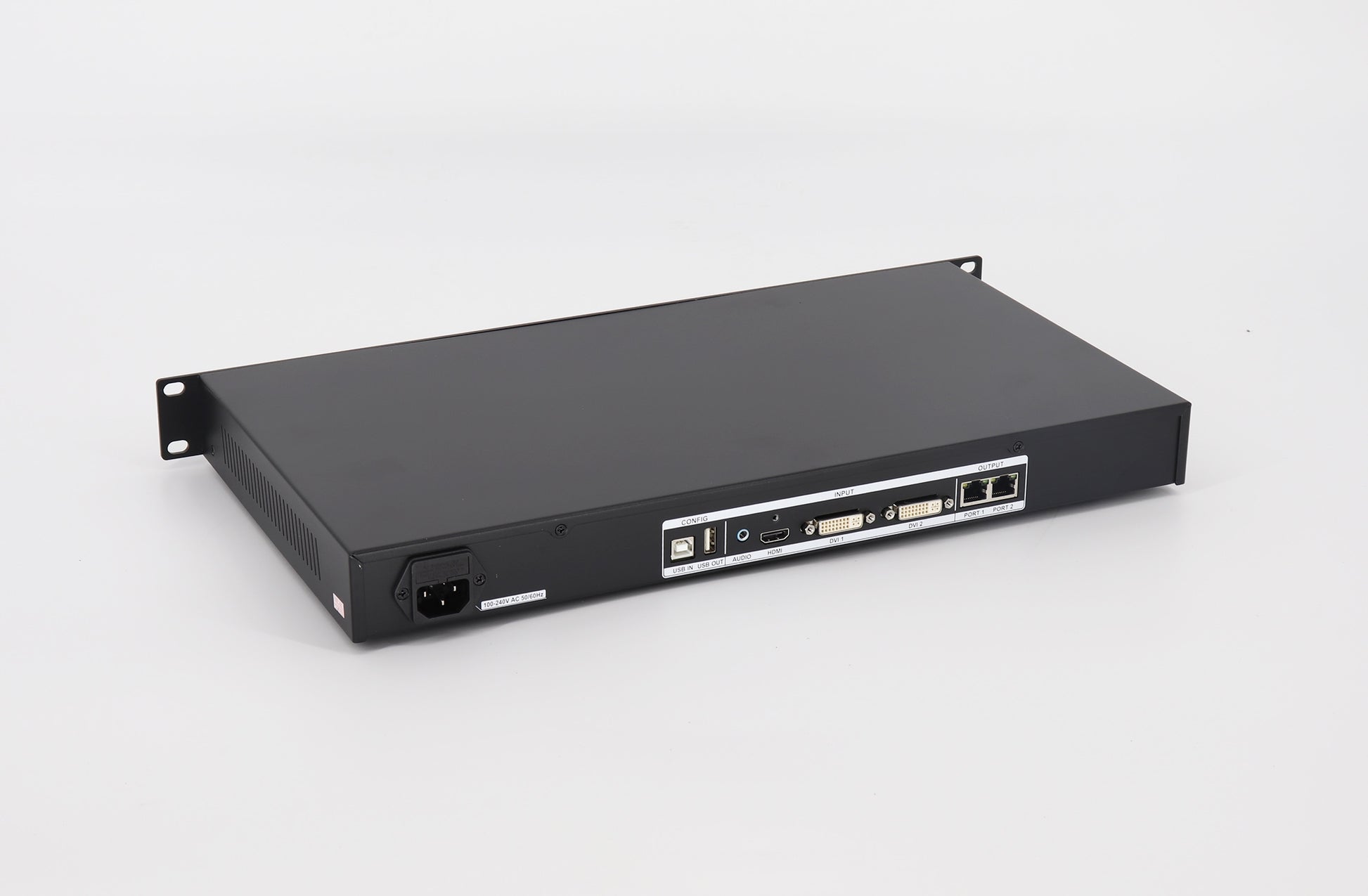

X1 is a professional LED display controller. It possesses powerful video signal receiving and processing capacities, and supports HD digital signals, in which the maximum input resolution is 1920×1200 pixels. It supports HD digital ports including HDMI and DVI, and seamless switching between signals. It supports arbitrary scaling and cropping of video sources.

X1 adopts 2 Gigabit Ethernet outputs, and it supports LED displays of 4096 pixels in maximum width or 2560 pixels in maximum height. Meanwhile, X1 is equipped with a series of versatile functions which can provide flexible screen control and high-quality image displays. It can be perfectly applied to small LED displays.

Colorlight X1 Professional LED Display Screen Controller Features:

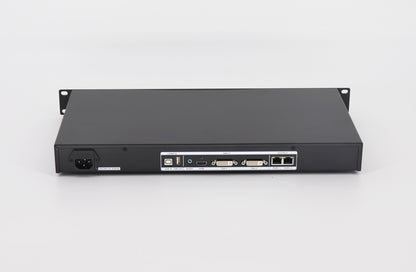

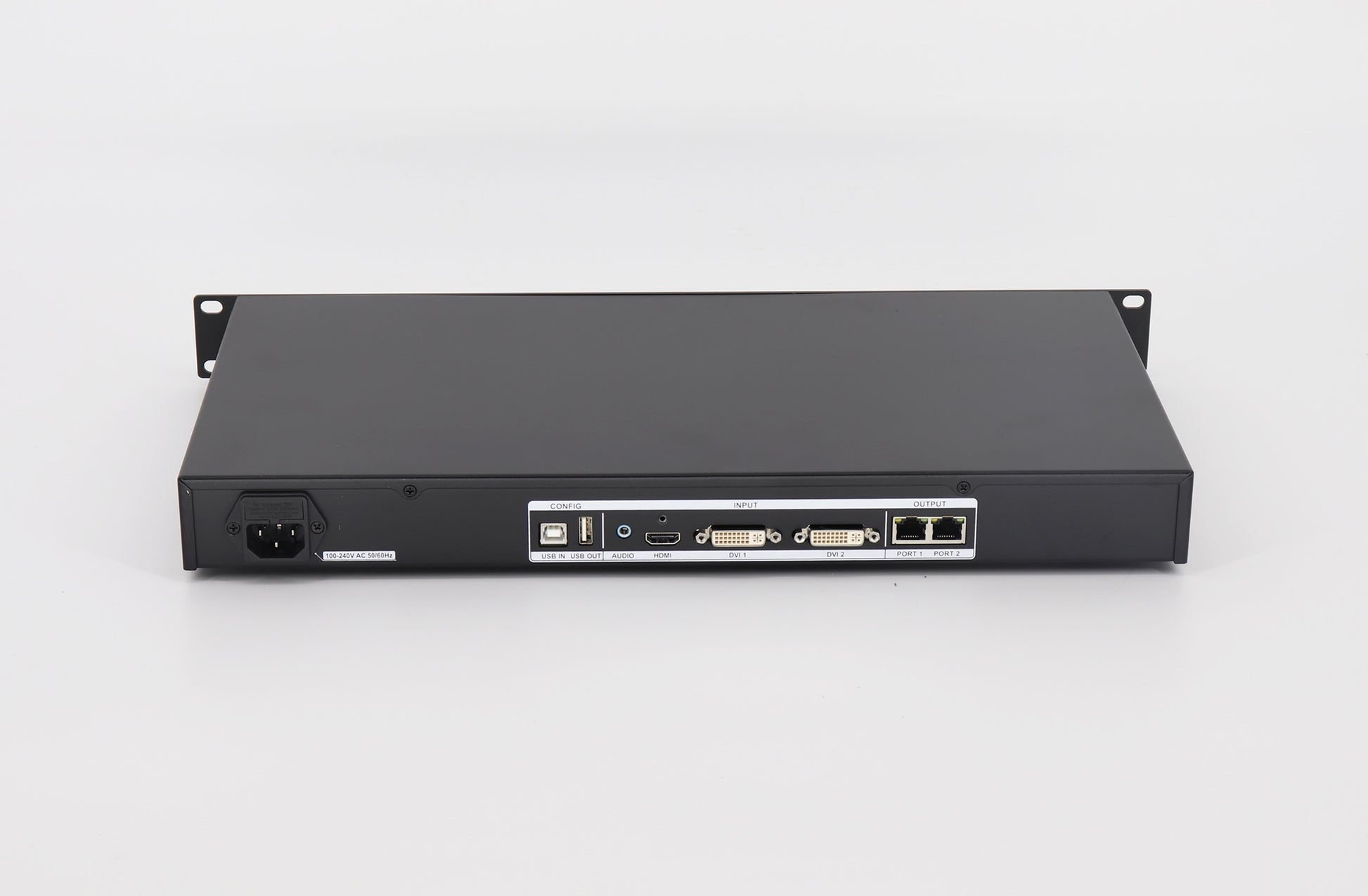

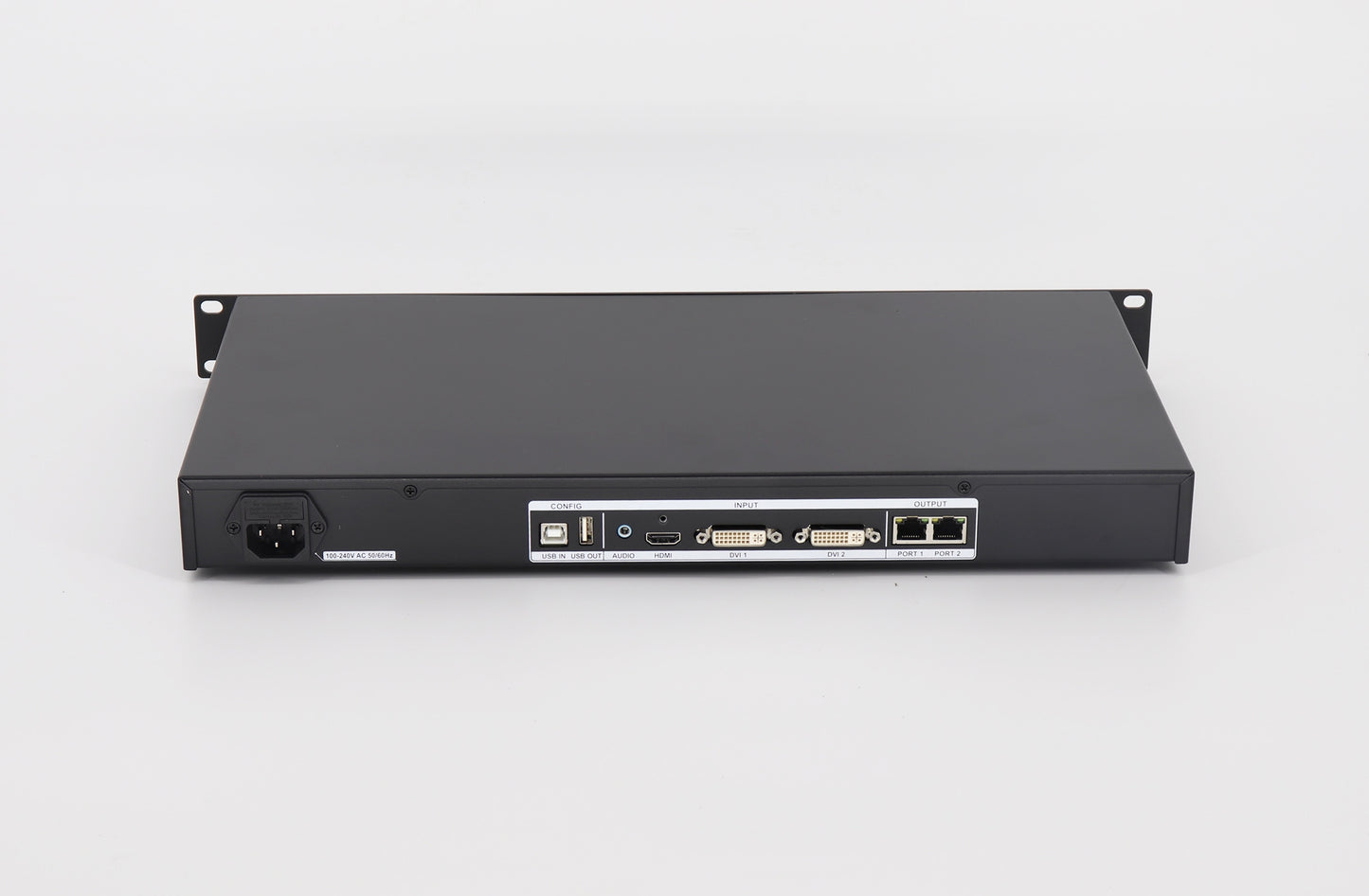

·Video input ports including  1×HDMI×1, 2×DVI;

·Supports input resolution up to 1920×1200@60Hz;

·Loading capacity:1.31 million pixels,Maximum Width/Height: 4096 pixels/2560 pixels;

·Supports arbitrary switching of video input, and the image can be zoomed freely;

·Dual USB2.0 for high speed configuration and easy cascading;

·Supports splicing and cascading among several controllers with synchronization strictly;

·Supports brightness and chromaticity adjustment;

·Supports improved gray-scale at low brightness;

·Supports HDCP1.4；

·Compatible with all receiving cards, multifunction cards, optical fiber converters of Colorlight.
