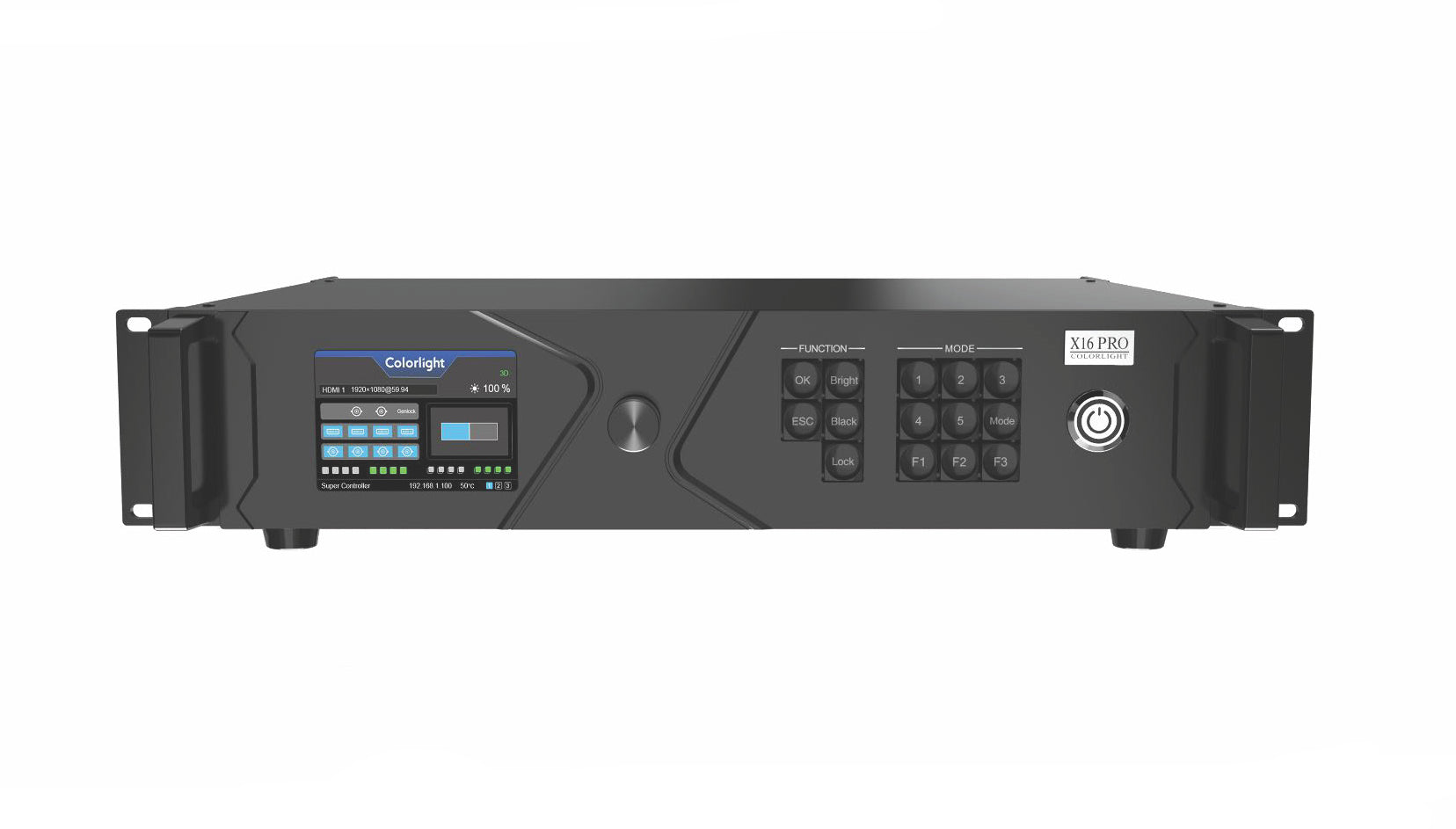

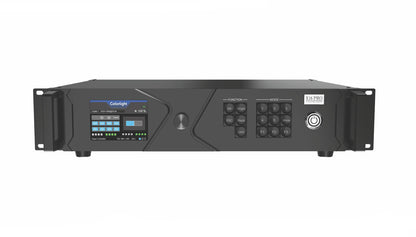

Colorlight X16 Pro Professional Large LED Screen Display Processor

Colorlight X16 Pro Professional Large LED Screen Display Processor

Colorlight X16 Pro Professional Large LED Screen Display Processor is a professional grade LED display control device, with powerful video signal reception, splicing and processing capabilities, the maximum reception 4096 × 2160 pixels 4K digital signal; support for HDMI, DP, DVI, SDI and other digital interfaces, seamless switching between multiple signals; support for splicing, broadcast level scaling, maximum support for 7-screen display.



With 16 Gigabit Ethernet outputs, the X16 PRO can support LED displays up to 8192 pixels wide and 4096 pixels high in a single unit. The X16 PRO also offers a wide range of features for flexible screen control and high quality image display, making it perfect for high-end rental displays and small pitch LED displays.

Colorlight X16 Pro Professional Large LED Screen Display Processor Features:

-Supports a wide range of digital signal interfaces, including HDMI 2.0, DP1.2, SDI, DVI.

-Maximum input resolution 4096×2160@60Hz, supports arbitrary resolution settings.

-Up to 10.4 megapixels with a maximum bandwidth of 8192 pixels and up to 4096 pixels.

-Support arbitrary switching of video sources, according to the display resolution of the input image stitching, scaling.

Supports 7-screen display with free adjustment of position and size.

-Support for HDCP 2.2.

-Supports 3D functionality (optional).

Dual USB 2.0 high-speed communication interfaces for computer debugging and arbitrary cascading between the main controller.

-RS232 serial port, used by computers to send serial commands.

-Supports brightness and color temperature adjustment.

-Supports low light and high grey.

-Support for handheld terminal control (app).

-Supports the full range of Carlite receiver cards, multifunction cards, and fiber optic transceivers.

Colorlight X16 Pro Professional Large LED Screen Display Processor Parameter:

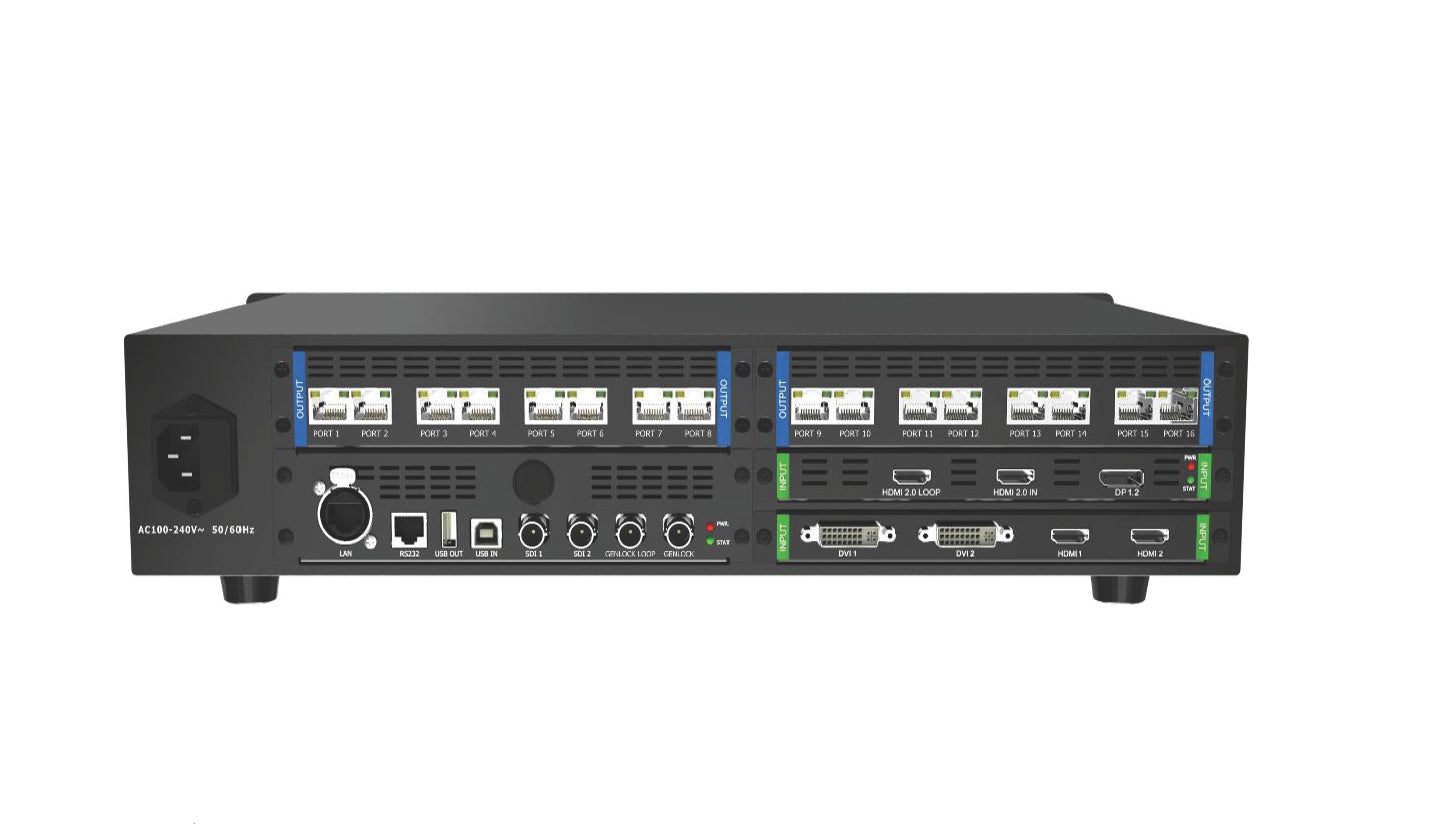

Input Interface
HDMI 2.0

1，with LOOP

HDMI 2.0&DP 1.2Either one, not both at the same time
DP 1.2 1
DVI 2
HDMI 1.4

2
SDI

2



Output Interface
Port1-16

RJ45，16-channel Gigabit Ethernet output, 16 Ethernet ports can be arbitrarily spliced up and down, left and right.



Specification
Size 2U standard box
Input voltage AC100~240V
Rated Power Consumption 70W
Working Temperature – 20℃ ~ 60℃

X16 is a professional LED display controller. It possesses powerful video signal receiving, splicing and processing capacities, and supports multiple signal inputs, in which the maximum input resolution is 4K@4096×2160 pixels. It supports digital ports (HDMI, DVI, SDI), and seamless switching between signals. It supports splicing, broadcast quality scaling, and seven-pictures displays.

Colorlight X16 Professional LED Wall Panel Controller Box Parameter:

Input Interface
HDMI 2.0 HDMI 2.0 Input
EIA/CEA-861 Standard, in accordance with HDMI 2.0 standard, supports 4096×2160@60Hz, supports HDCP
DVI 4 DVI inputs
VESA Standard (support 1920×1200@60Hz), supports HDCP
SDI 2 SDI-3G inputs, 1920×1080P
Output Interface
Port1-16 RJ45, 16 Gigabit Ethernet outputs
Controlling Interface
LAN Network control (communication with PC, or access network)
USB_OUT USB output, cascading with the next controller
USB_IN USB input, which connects with PC to configure parameters
Genlock Genlock signal input ensures synchronism of display image
Genlock Loop Genlock synchronous signal loop output
4K Input Boards (Optional)
X16 (Standard) 1×HDMI 2.0 + 4×DVI
X16B (Customized) 8×DVI
X16C (Customized) 2×HDMI 2.0
Specifications
Size 2U standard box
Input voltage AC 100~240V
Rated Power Consumption 80W
Working Temperature -20~60℃

•Supports various digital signal ports, including 1×HDMI 2.0, 4×DVI, 2×SDI

•Supports input resolutions up to 4096×2160@60Hz

•Loading capacity: 8.88 million, maximum width/height: 8192 pixels

•Supports arbitrary switching of video sources; the input images can be spliced and scaled according to the screen resolution

•Supports seven-pictures displays, the location and size can be adjusted freely

•Supports HDCP 2.2

•Dual USB2.0 for high speed configuration and easy cascading among controllers

•Supports brightness and chromaticity adjustments

•Supports improved gray-scale performance at low brightness

•Compatible with all receiving cards, multifunction cards, and optical fiber transceivers of Colorlight

$1,700.00 USD
$1,700.00 USD
Sale Sold out
Taxes included.

Colorlight X16 Pro
View full details
