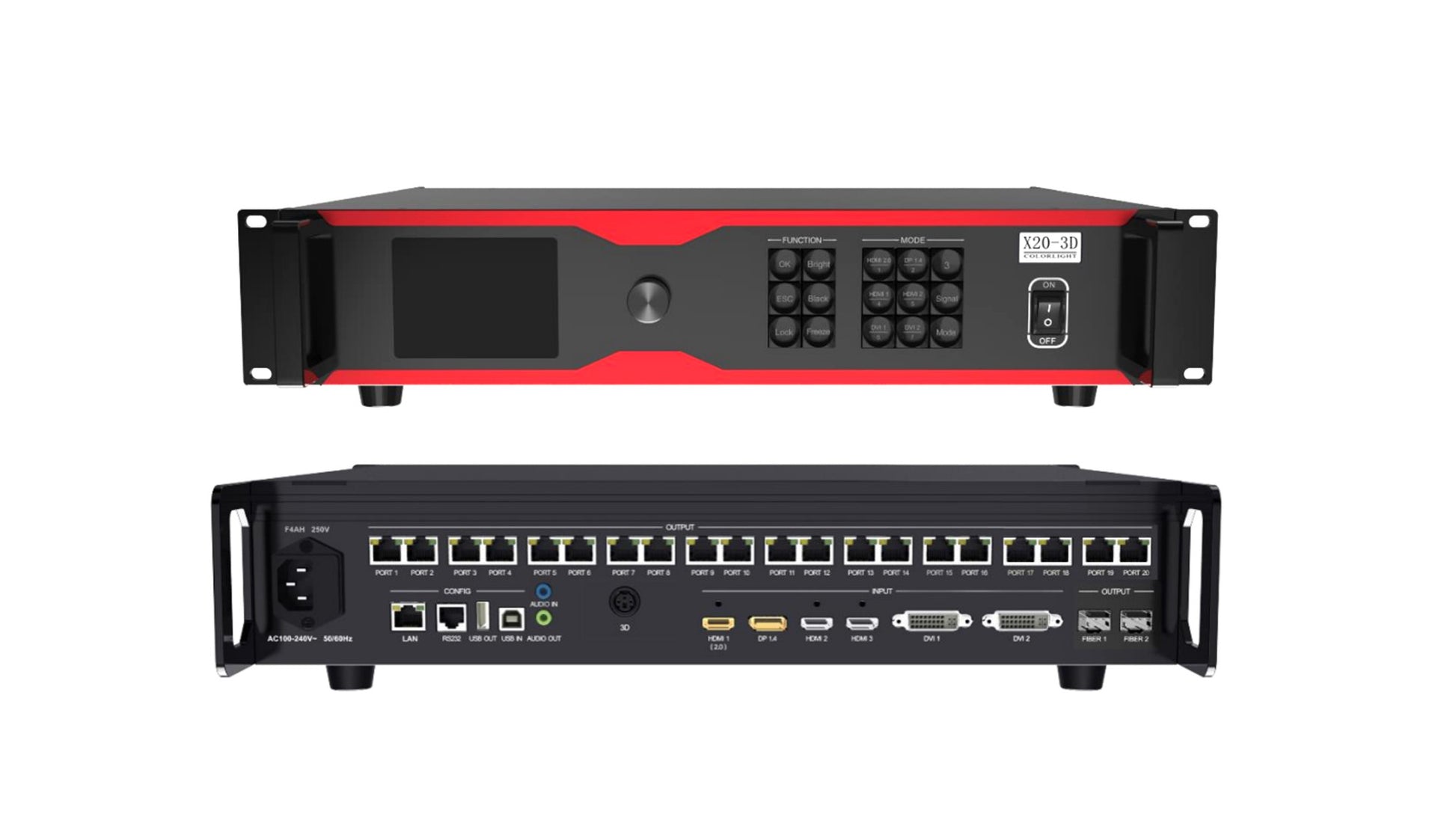

X20-3D is a controller possessing powerful video signal input and processing capacity. It supports 4K inputs with DP 1.4 and HDMI 2.0 connectors, and 2K inputs with HDMI 1.4 and DVI connectors, and the multiple signals can be seamlessly switched. A single unit features a loading capacity of 13 million pixels, with 16384 pixels in maximum width or 8192 pixels in maximum height. Equipped with 20 Gigabit Ethernet ports and 2 10G optical fiber ports, X20-3D is able to meet the need of different clients.

Colorlight X20-3D led display Professional master Controller Features：

●Input connectors: 1XDP 1.4, 1X HDMI 2.0, 2XHDMI 1.4, 2X DVI

●Loading capacity: 13 million pixels, maximum width: 16384 pixels, or maximum height: 8192 pixels

●Input resolution: up to 4096 X2160@60Hz, supporting customized setting

●Output connectors: 20XGigabit Ethernet port, 2X 10G optical fiber port

●Supports video source switching, cropping, splicing, scaling and holding up to 6 windows, the window position and size can be freely adjusted, as well as precise color management and display color
gamut adjustment.

●Support video synchronization and independent audio input and output, as well as HDMI, DP input audio signal analysis output and LAN control

●Not only supports handheld terminal (APP) control, RS232 protocol control, but also supports 3D, HDCP and brightness and color temperature adjustment

Specification Download:

Colorlight X20-3D led display Professional master Controller Specification
