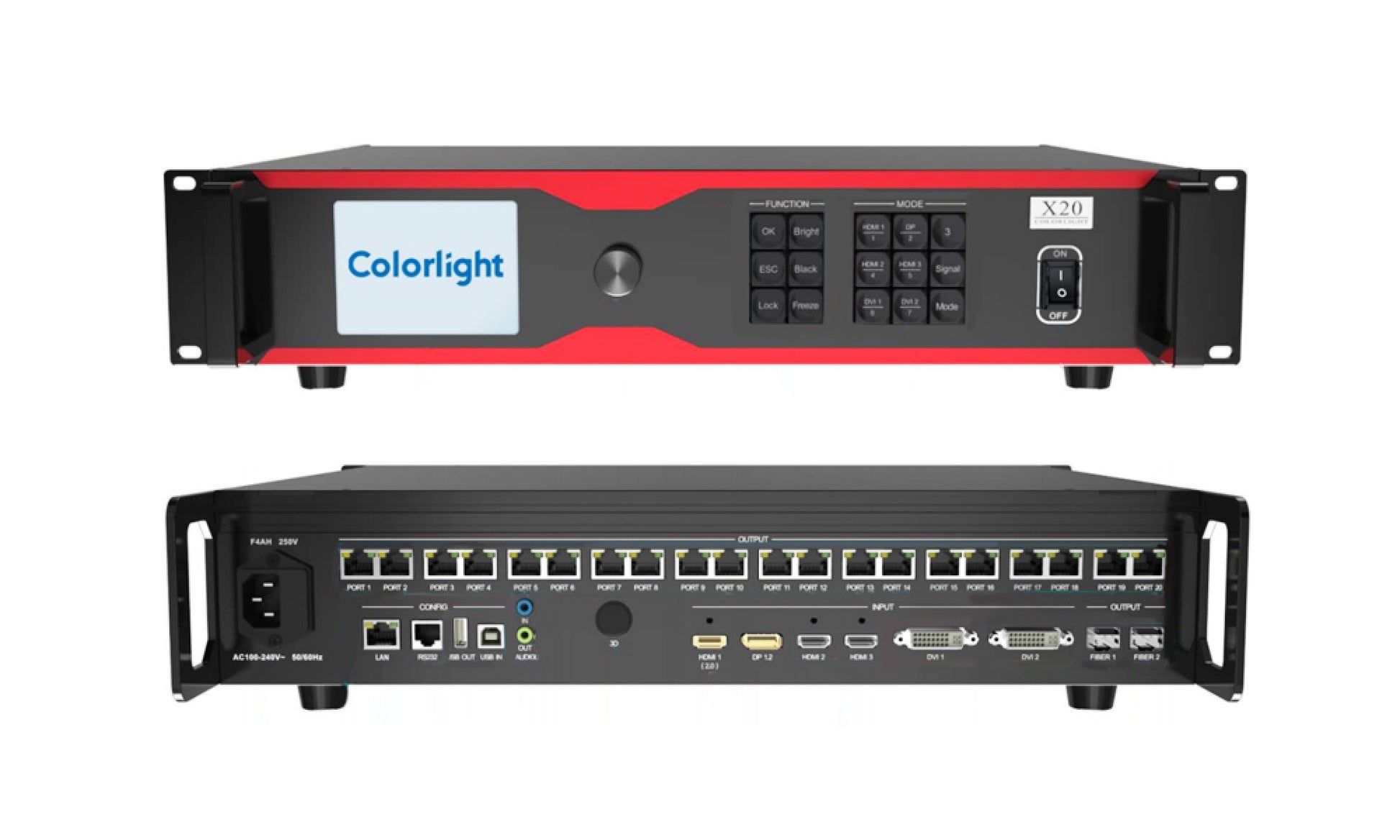

X20 is a super 4K LED video controller with powerful video signal input and processing capabilities. The device supports 4K and 2K video signal input, with a loading capacity of up to 13 million pixels. It has two output modes: network port output or optical port output, which can greatly meet the needs of different customers. At the same time, X20 has a series of rich and practical functions, which can provide flexible screen control and high-quality image display.

Colorlight X20 Controller for LED Display screen Features：

enter
●The maximum input resolution is 4096X2160@60Hz
●2-way 4K input: 1X DP1.2, 1X HDMI2.0
Small V
●4-way 2K input: 2X HDMI1.4, 2X DVI

output
●Maximum carrying capacity of 13 million pixels, maximum width of 16384 pixels, or maximum of 8192 pixels
●20-way Gigabit Ethernet port output or 2-way 10-Gigabit optical port output, choose one
audio
●1 channel independent audio input
●1 channel independent audio output
●HDMI and DP audio analysis output

control
●USB interface control and cascading
●RS232 serial protocol control
●LAN port control
●Mobile APP control

Specification Download:

Colorlight X20 Controller for LED Display screen Specification
