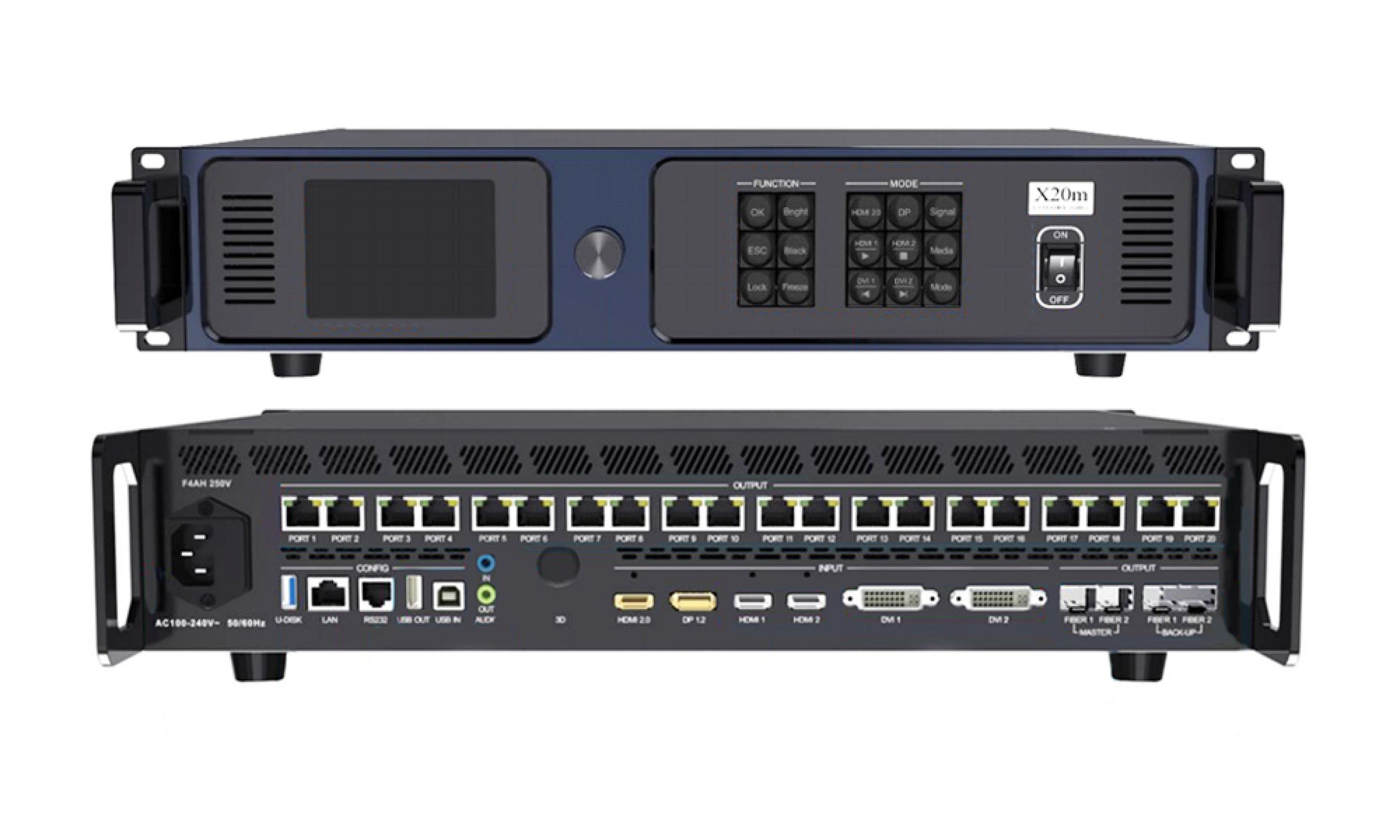

X20m is a super 4K LED video controller with powerful video signal input and processing capabilities. The device supports 4K and 2K video signal input, with a loading capacity of up to 13.1 million pixels. It has two output modes: network port output or optical port output, which can greatly meet the needs of different customers. At the same time, X20m has a series of rich and practical functions, which can provide flexible screen control and high-quality image display.

Colorlight X20m led display professional main controller Features：

enter
●The maximum input resolution is 4096X2160@60Hz
●2-way 4K input: 1XDP1.2, 1XHDM2.0
●4-way 2K input: 2XHDMI1.4, 2XDVI
●1 way U disk interface

output
●The maximum loading capacity is 13.1 million pixels
20-way Gigabit Ethernet port output or 4-way 10-Gigabit optical port output (master and 2 backup), choose one

audio
●1 channel independent audio input
●1 channel independent audio output
●Support HDMI and DP audio analysis output

Function Description：

●Maximum 6 windows display, each window has 1 layer, and the layers overlap each other (when 1 4K input signal, it can support 4 channels of high-definition input at the same time, supporting 5 windows; when 2 4K input signals, only support 2 windows)

●Window free roaming, free zooming window, minimum 64X 64 resolution

● Video signal can be arbitrarily cropped, seamlessly switched, cropping frame size can be freely adjusted, minimum resolution is 64X64, and color can be managed and display color gamut is adjustable, corresponding model receiving card support is required

●Video genlock technology, support locking internal vsync, input signal source, automatic genlock (lock according to layer)
●Support brightness and color temperature adjustment, support accurate color temperature
●Low brightness and high gray, can effectively maintain the complete display of gray scale under low brightness
●Support 128 scenes to save and recall
●Support ∪ disk playback and upgrade

Specification Download:

Colorlight X20m Controller for LED Display screen Specification
