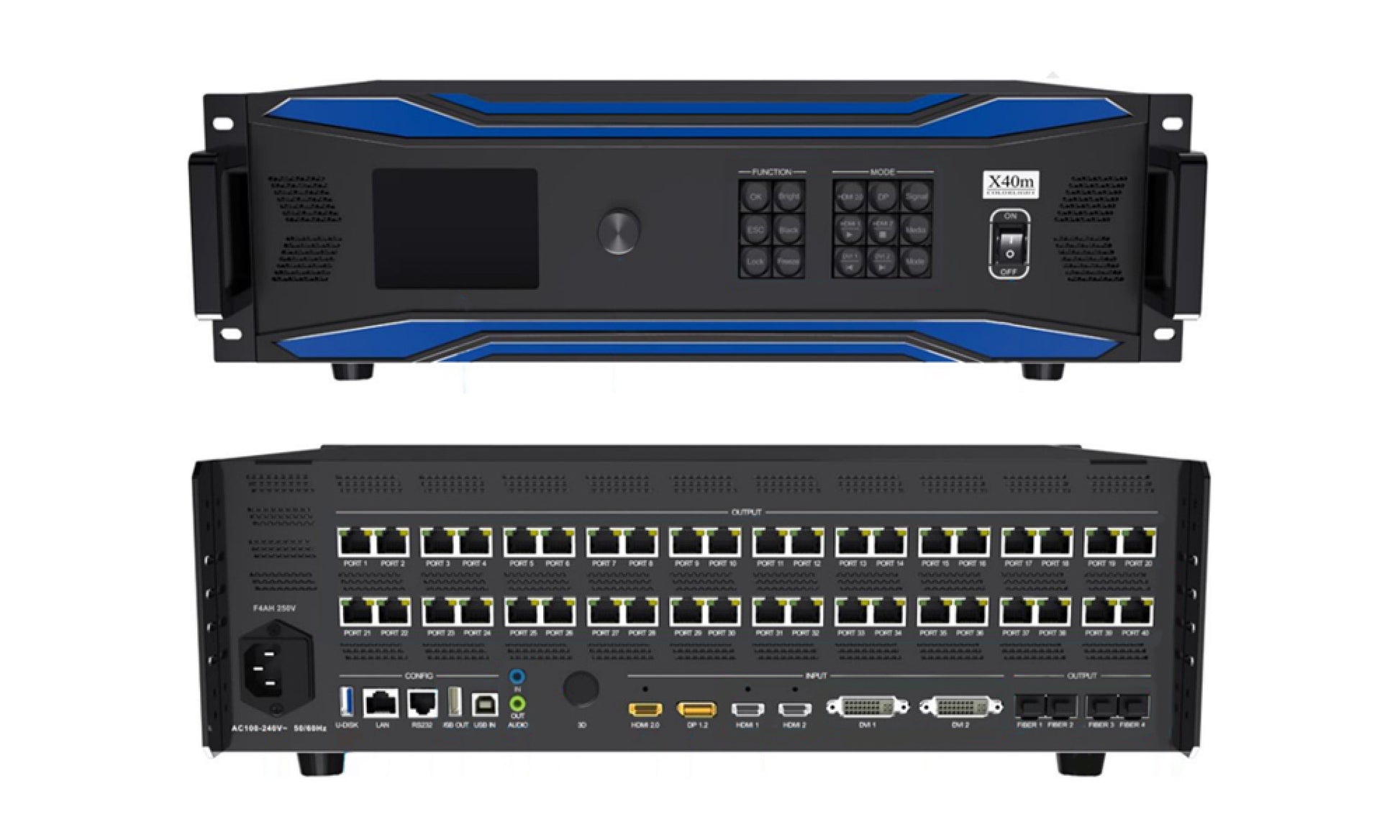

X40m is a super 4K LED video controller with powerful video signal input and processing capabilities. The device supports 4K and 2K video signal input, with a loading capacity of up to 26.21 million pixels. It has two output modes: network port output or optical port output, which can greatly meet the needs of different customers. At the same time, X40m has a series of rich and practical functions, which can provide flexible screen control and high-quality image display.

Colorlight X40m Function Description：

●Maximum 6 windows display, 1 layer per window, overlapping each other (when 1 channel 4K input signal, it can support 4 channels of HD input and 5 windows at the same time; when 2 channels of 4K input signal, it only supports 2 windows) and windows can roam freely, windows can be scaled freely, minimum resolution 64X 64.

●Window can roam freely, windows can be scaled freely, minimum resolution 64X 64
●Support 128 scenes to save and call
●Video signal can be cropped arbitrarily, seamless switching, cropping frame size can be adjusted freely, minimum resolution 64X64
●Support ∪ disk playback and upgrade
●Precise color management, adjustable display color gamut, corresponding model receiving card support
●Video synchronous phase lock technology, support locking internal vsync, input signal source, automatic synchronous phase lock (lock by layer)
●Support brightness and color temperature adjustment, support precise color temperature
●Low brightness and high gray, can effectively maintain grayscale integrity display under low brightness

Colorlight X40m professional led display screen controller Features：

enter
●The maximum input resolution is 4096X2160@60Hz
2-way 4K input: 1XDP1.2, 1 XHDMI2.0
●4 channels of 2K input: 2XHDM1.4, 2XDVI
●1 way ∪ disk interface

output
● The maximum loading capacity is 26.21 million pixels
40-way Gigabit Ethernet output or 4-way 10-Gigabit optical output, optional

audio
●1 channel independent audio input
●1 channel independent audio output
●Support HDMI and DP audio analysis output

Specification Download:

Colorlight X40m Controller for LED Display screen Specification
