Description

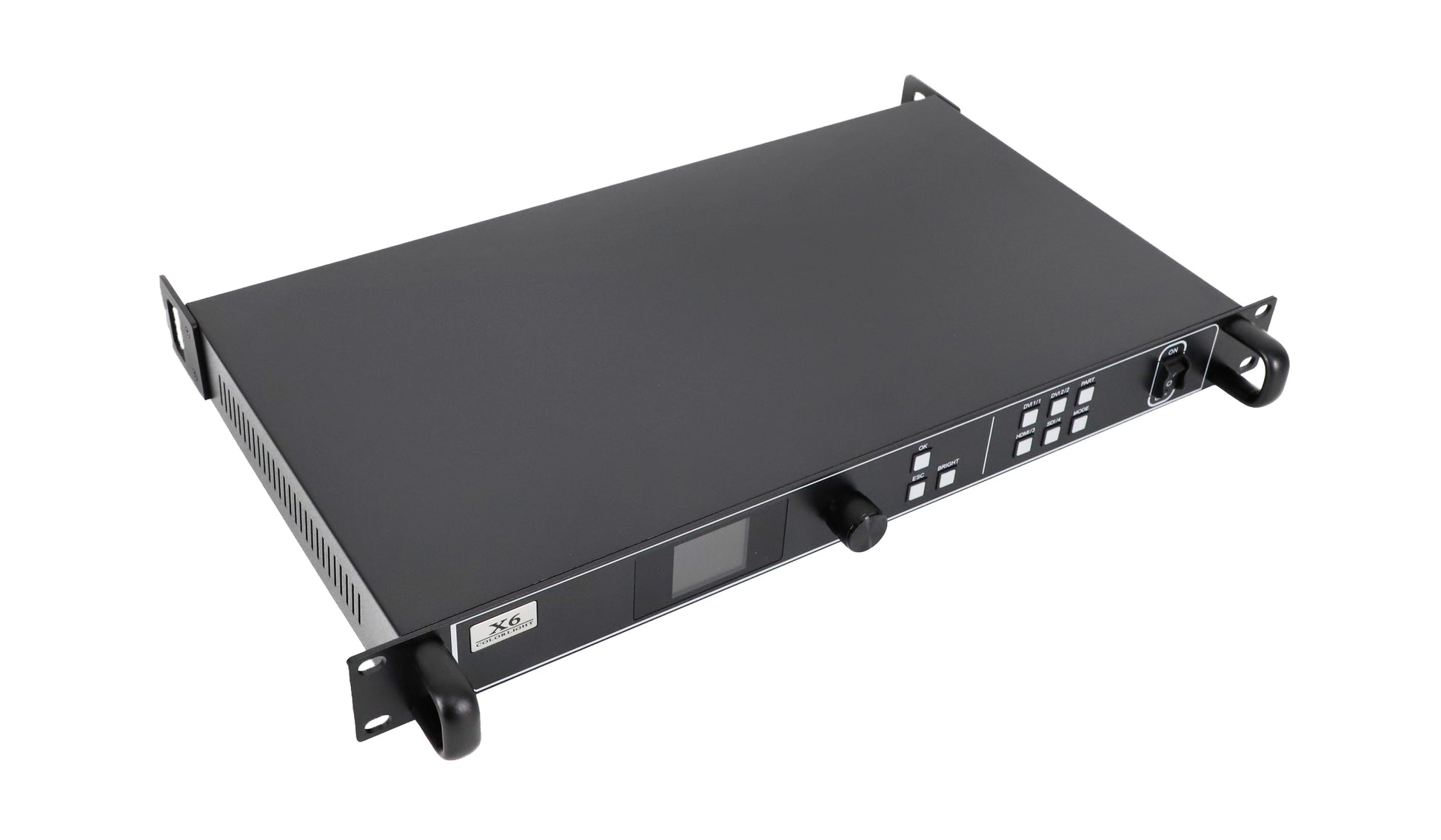

Colorlight X6 Professional LED Large Screen Controller is a professional control system and video processing equipment specially designed for LED engineering applications. It equips various video signal interfaces, supports high-definition digital ports (SDI, HDMI, DVI), and seamless switching between signals can be achieved. It supports broadcast quality scaling and multi-pictures display
Colorlight X6 LED Display Screen Controller Features:
•Supports various digital signal ports, including 1×SDI, 1×HDMI, 2×DVI
•Supports input resolution up to 1920×1200@60Hz
•Loading capacity: 3.9 million pixels, Maximum width: 8192 pixels, Maximum height: 4096 pixels
•Supports arbitrary switching of video sources
•Supports three-picture display, the location and size can be adjusted freely
•Supports HDCP1.4
•Dual USB2.0 for high speed configuration and easy cascading among controllers
•Supports adjustment of brightness, chromaticity, contrast ratio, tone, and saturation
•Supports improved gray-scale performance at low brightness
•Compatible with all receiving cards, multifunction cards, and optical fiber converters of Colorlight
Colorlight X6 LED Display Screen Controller Parameter:

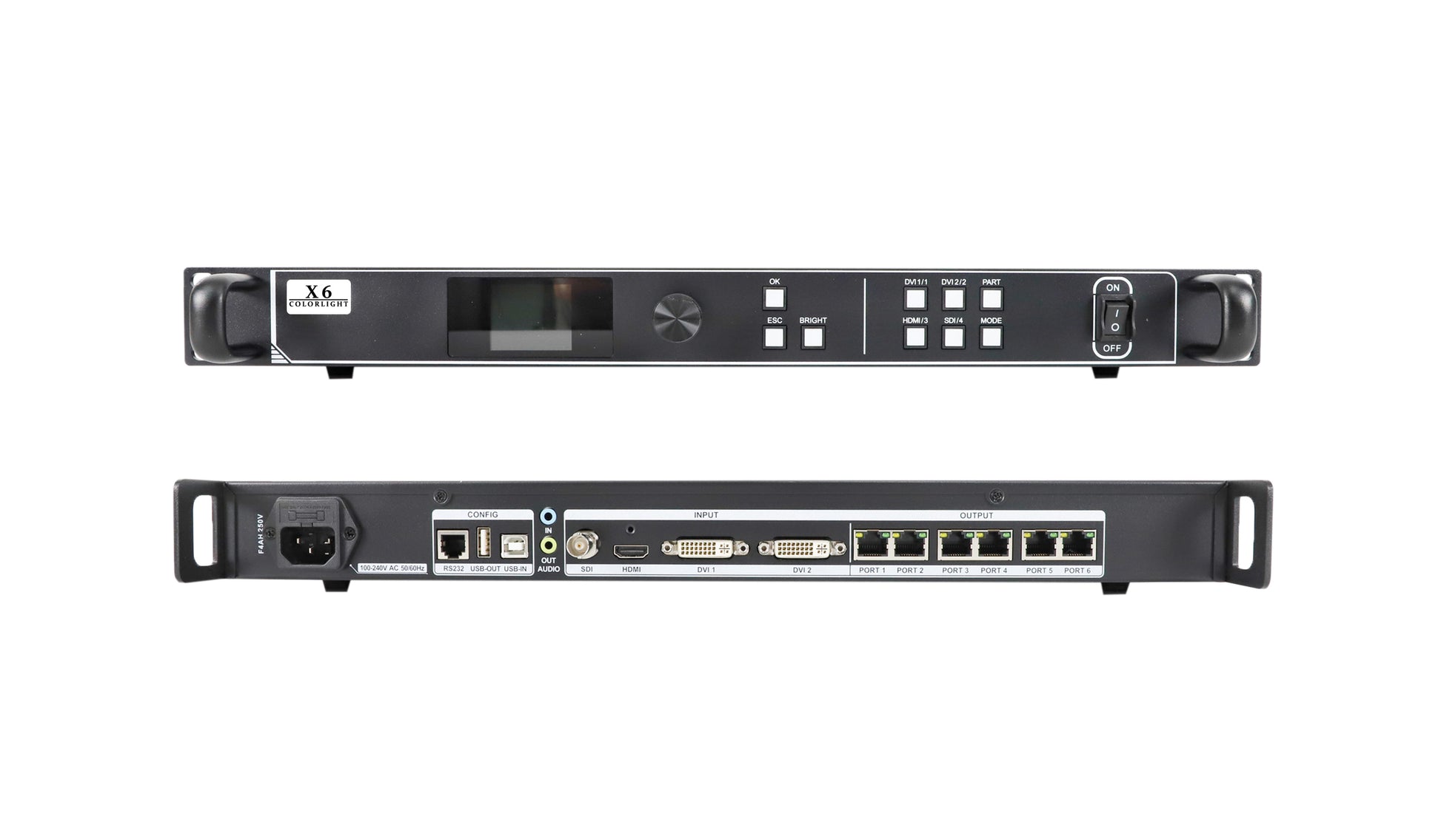

| Input Interface | |
| DVI | 2 DVI inputs
VESA Standard (supports 1920×1200@60H), supports HDCP |
| HDMI | HDMI input
EIA/CEA-861 Standard, supports 1920×1200@60Hz supports HDCPP |
| SDI | SDI input,compatible with 3G-SDI, HD-SDI, SD-SDI |
| AUDIO | Audio input, use with multi-function card (optional) |

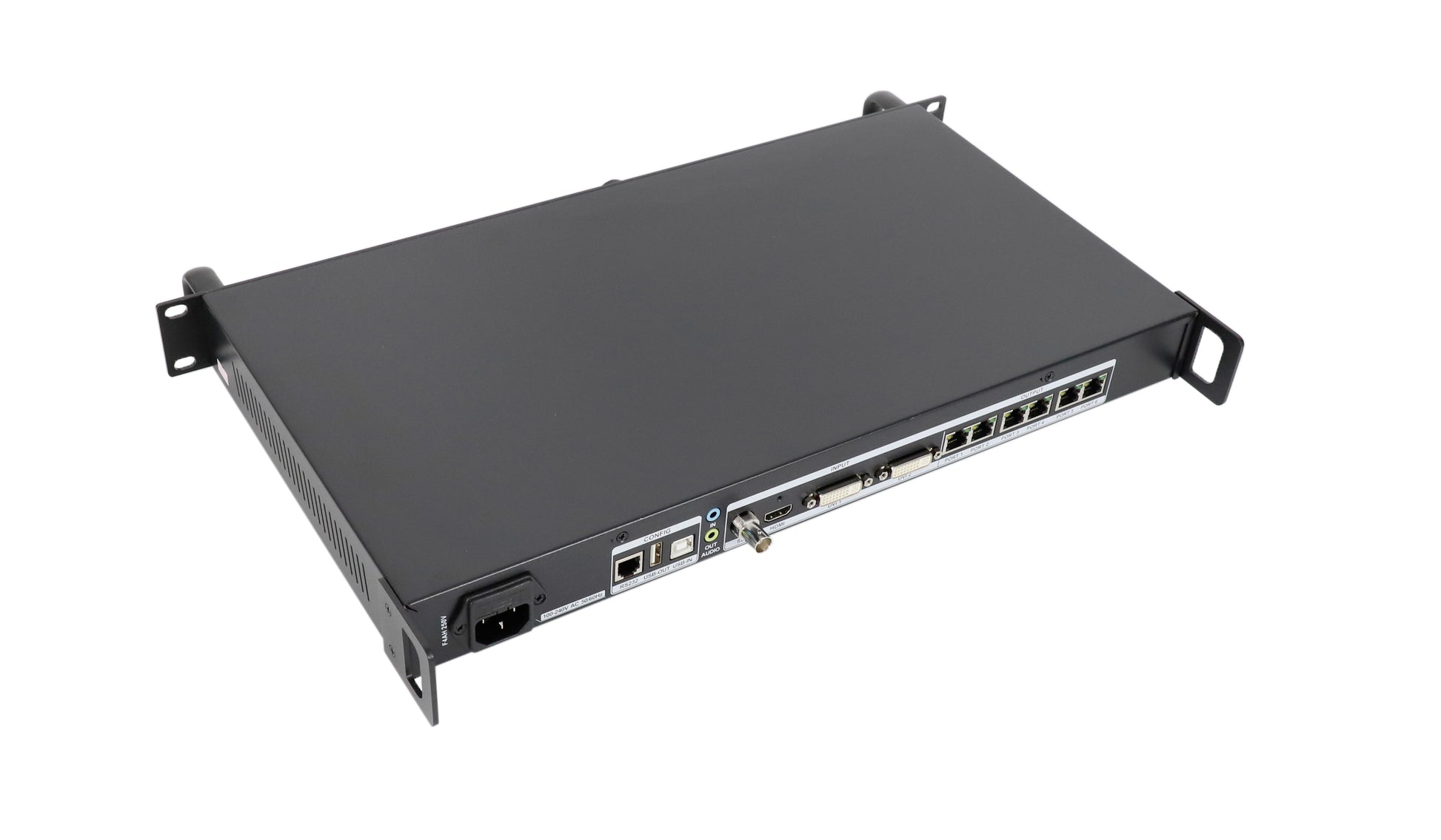

| Output Interface | |
| Port1-8 | RJ45, 8 Gigabit Ethernet ports |
| Controlling Interface | |
| USB_IN | USB input, which connects with PC to configure parameters |
| USB_OUT | USB output, cascading with the next controller |
| RS232 | RJ11 interface, connected with central control |
| Specifications | |
| Size | 1U standard box (482.6mm×44mm×237.5mm) |
| Input voltage | AC 100~240V |
| Rated Power Consumption | 20W |
| Working Temperature | -20~60℃ |
Specification Download:
Colorlight X6 LED Display Screen Controller Specification
