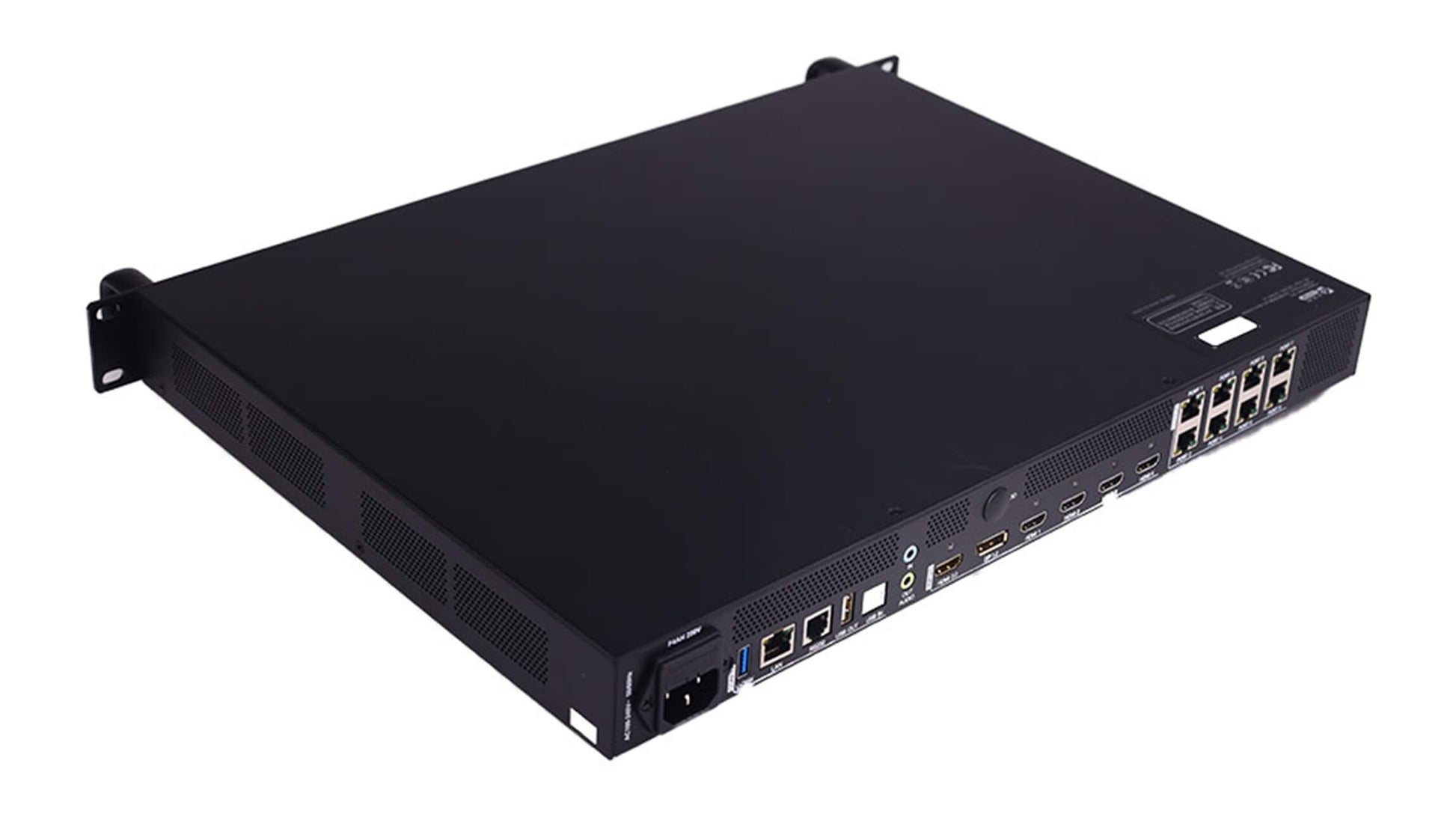

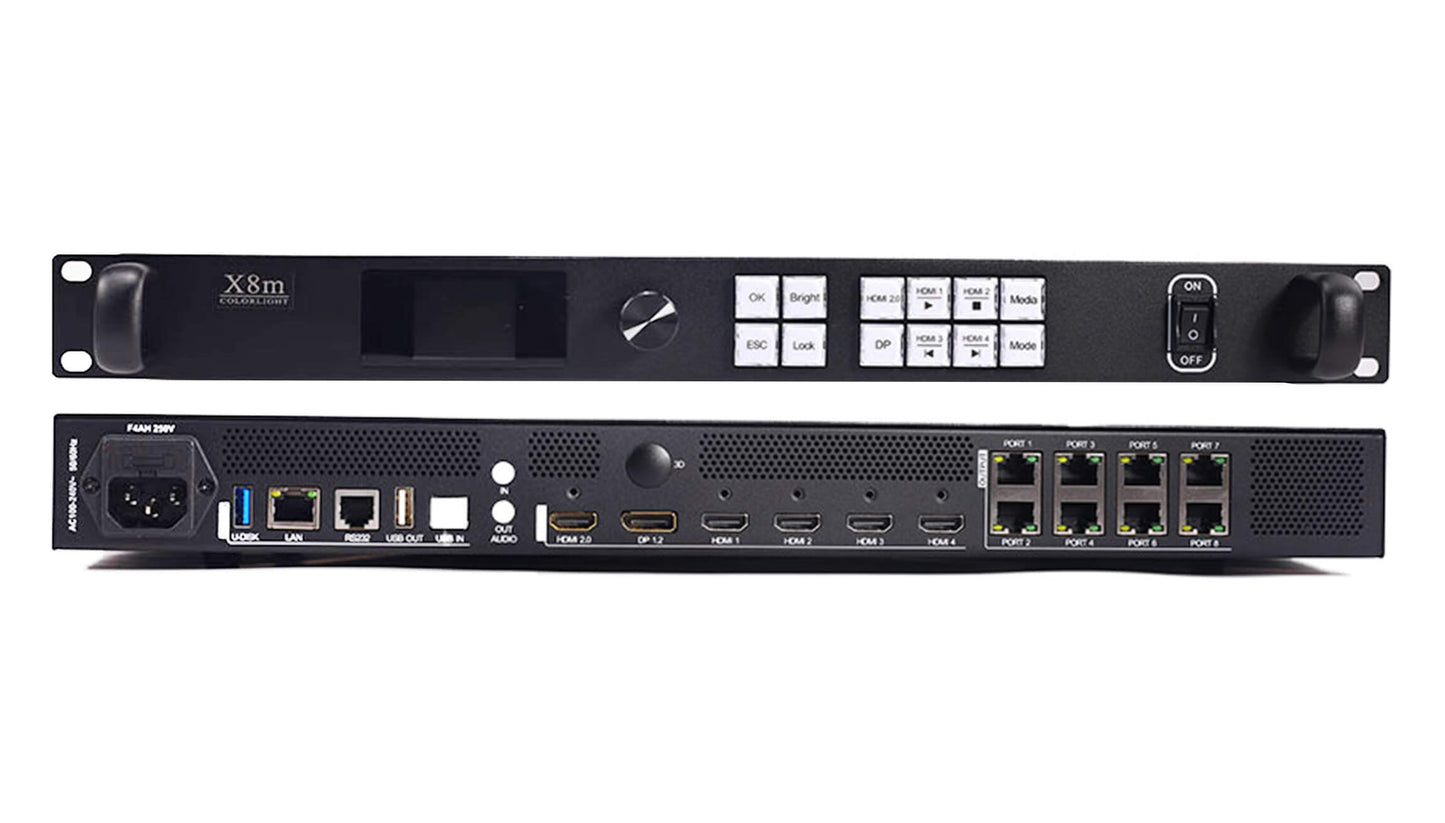

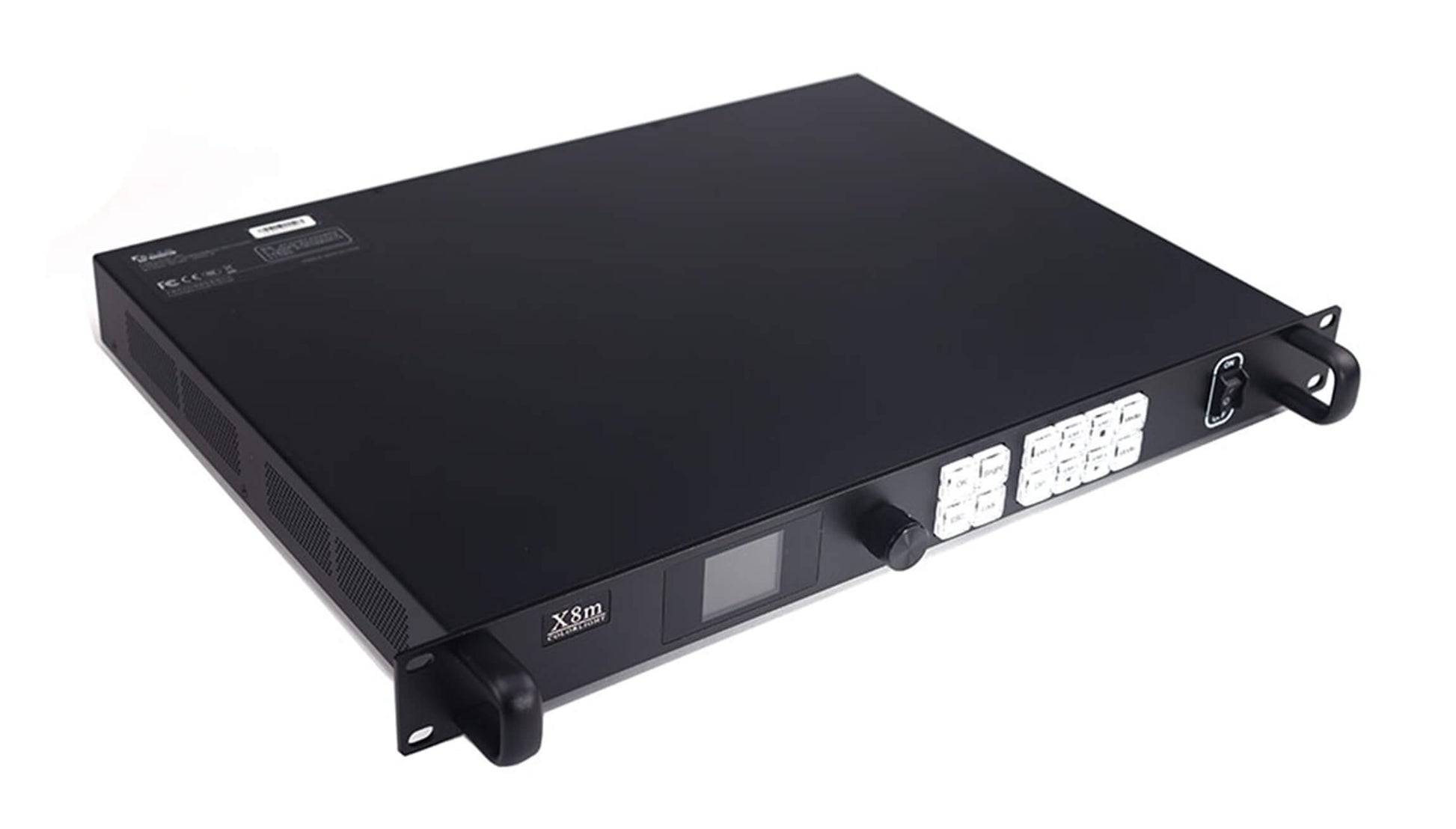

X8m is an Ultra-4K LED video controller with powerful video signal input and processing abilities. It is so versatile, offering flexible screen control and high-quality image display portfolios. The device supports 4K and 2K video signal inputs and LAN port output mode. A load capacity of up to 5.24 million pixels creates a dynamic viewing experience that stays with you.

Features

 Input & Video Processing
4K Inputs (Up to 4096×2160@60Hz):
1× DP 1.2 (supports custom resolutions up to 8192×1080@60Hz)
1× HDMI 2.0 (backward compatible with HDMI 1.4/1.3)
2K Inputs (4× HDMI 1.4): Max 1920×1200@60Hz per port

 Multi-Window Support
Up to 6 independent windows (layered overlap)
Real-time cropping & resizing (min. 64×64 window size)
Genlock Synchronization: Supports internal V-Sync, auto-genlock, and 3D sync (optional)
3. Output & Load Capacity
8× Gigabit Ethernet Ports:
Total Load Capacity: 5.24M pixels (8-bit @60Hz)
Per Port: Up to 655K pixels (8-bit @60Hz)
Max Resolution: 16,384×8,192 pixels
Redundancy Support & 100m CAT5e cable compatibility

 Audio & Control
Audio I/O:
1× 3.5mm audio input (supports HDMI/DP audio decoding)
1× 3.5mm audio output
Control Interfaces:
USB (for PC control/cascading)
RS232 (RJ11) for central control
LAN for IP-based management
Mobile app support

 Additional Features
Color & Brightness Management:
18-bit+ grayscale, custom color gamut
Adjustable brightness/color temperature
USB Playback:
Supports NTFS/FAT32/exFAT drives
Video Formats: MP4, AVI, MKV (H.264/H.265), etc. (up to 4K@60Hz)
Image Formats: JPEG, PNG, BMP (up to 4096×2160)
128 Preset Scenes for quick switching
System Requirements (PC Control Software)
OS: Windows Server 2016+
CPU: Dual-core 2.5GHz+
RAM: 8GB+ | SSD: 150GB+

 Key Advantages
4K/2K Multi-Input – Flexible signal switching (DP + 5× HDMI)
Massive Pixel Processing – 5.24M pixels total load for large LED walls
Multi-Window & Layer – Supports 6 overlapping windows with real-time edits
Low-Latency Genlock – Frame-accurate synchronization for live events
