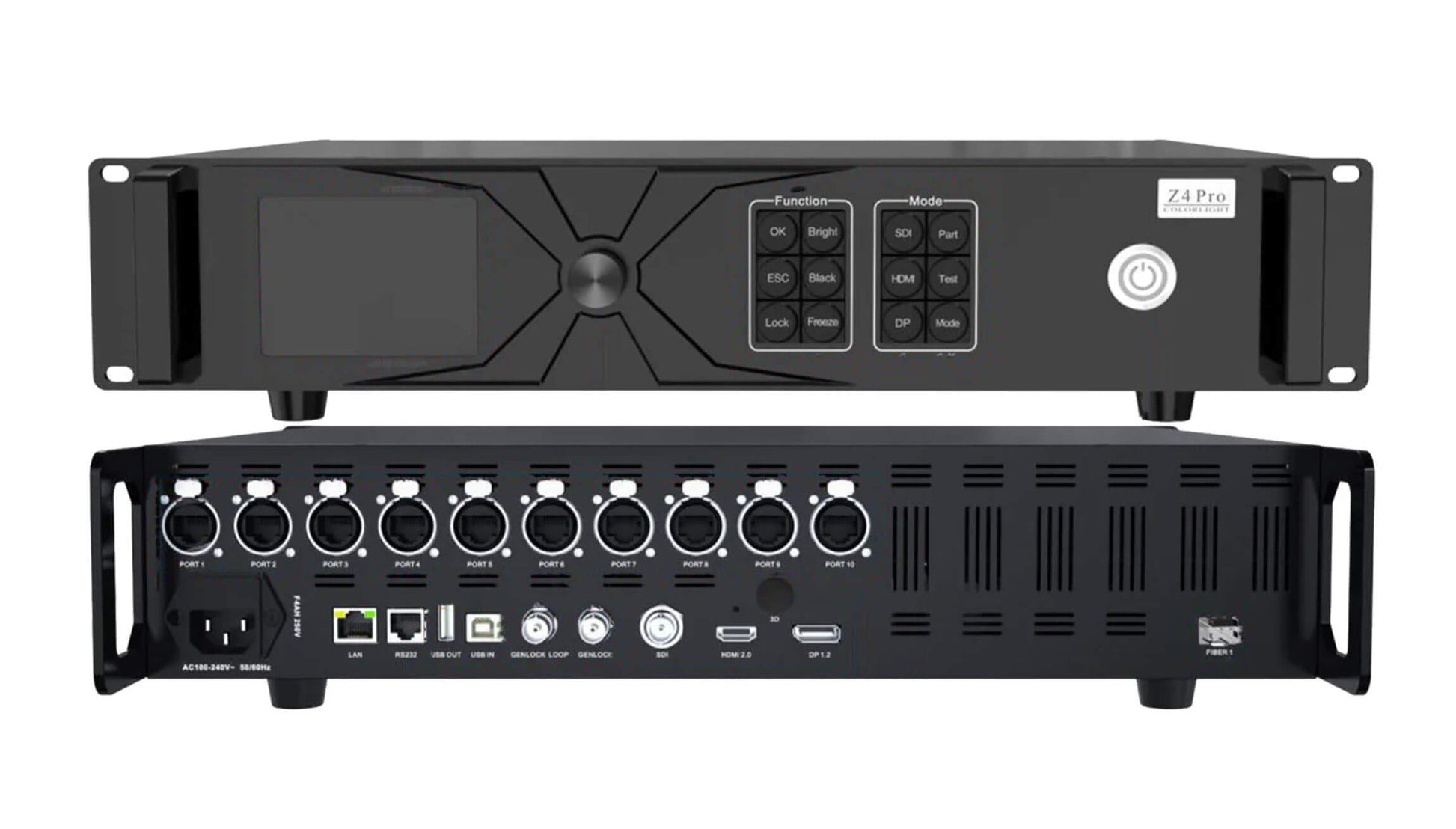

Z4 Pro, a new generation of professional LED video controller, is designed specially to meet the ultra-low latency display, HDR and wide color gamut needs of live event, broadcast, television, filming and other scenarios, where real time, low-latency processing and color fidelity is required for Ultra HD image and LED display control.

Features

 Input
Full 4K inputs: HDMI2.0, DP1.2, 12G-SDI.
Single port supports up to 4096 ×2160@60Hz.
Support 8bit/10bit video signal input.
Support HDCP1.4/HDCP1.3/HDCP2.3.
Support input frame rate from 23.98Hz to 240Hz.

 Output
Maximum capacity of 6.55 million pixels, with maximum 16384 pixels in width or 8192 pixels in height.
10-channel Gigabit Ethernet port output; 1-channel 10 Gigabit fiber port output,choose any of two types.
Support output frame rate of 23.98Hz to 240Hz.
Support both Ethernet port redundancy and controller redundancy.

 Video processing
Video signal cropping, switching, and broadcasting level scaling.
Multi-screen display (maximum three screens)
Low latency, a minimal latency of one frame.
Lag-free processing, 0 frame delay at minimum
HDR10/HLG display.
Genlock.
Crossfade of a single layer
Virtual pixel, support 3x virtual and 4x virtual
Multi-function card automatic brightness

 Color adjustment
Picture adjustment for hue, saturation, contrast, and brightness compensation.
Brightness adjustment, support network port grouping brightness adjustment.
Color temperature adjustment with precision and RGB independent adjustment.

 Control
USB port for control and cascading.
RS232 port.
LAN port for TCP/IP control.
