Z6 Super Controller is a professional LED display controller. As video splicer,
processor and sender in one combined, Z6 has 4K video input capability, UHD and
HDR images processing and transmission. Z6 can be applied to high-end rental
display and high resolution LED display perfectly.
Colorlight Z6 4K UHD LED Controller Box integrated Video Processor Overview
Z6 Super Controller is a professional LED display controller. As video splicer,
processor and sender in one combined, Z6 has 4K video input capability, UHD and
HDR images processing and transmission. Z6 can be applied to high-end rental
display and high resolution LED display perfectly.
Colorlight Z6 4K UHD LED Controller Box integrated Video Processor Features
Video input ports including SDI×2, HDMI2.0×1, DVI×4;
Support input resolution up to 4096×2160@60Hz; Input Frequency: 50~120Hz;
The input images can be spliced and zoomed according to the screen resolution;
Support PIP function, the location and size can be adjusted freely;
Support 12bit UHD video source input;
The loading capacity: 10 million pixels; Maximum Width: 16384 pixels, Maximum Height: 16384 pixels;
Support splicing and cascading among several controllers with synchronization strictly;
Support 3D display;
Support brightness and chromaticity adjustment, color gamut transformation;
Support zero latency of sending;
Support improved gray-scale at low brightness;
Support HDCP2.2；
Compatible with all receiving cards , multifunction card, optical fiber transceivers of Colorlight.

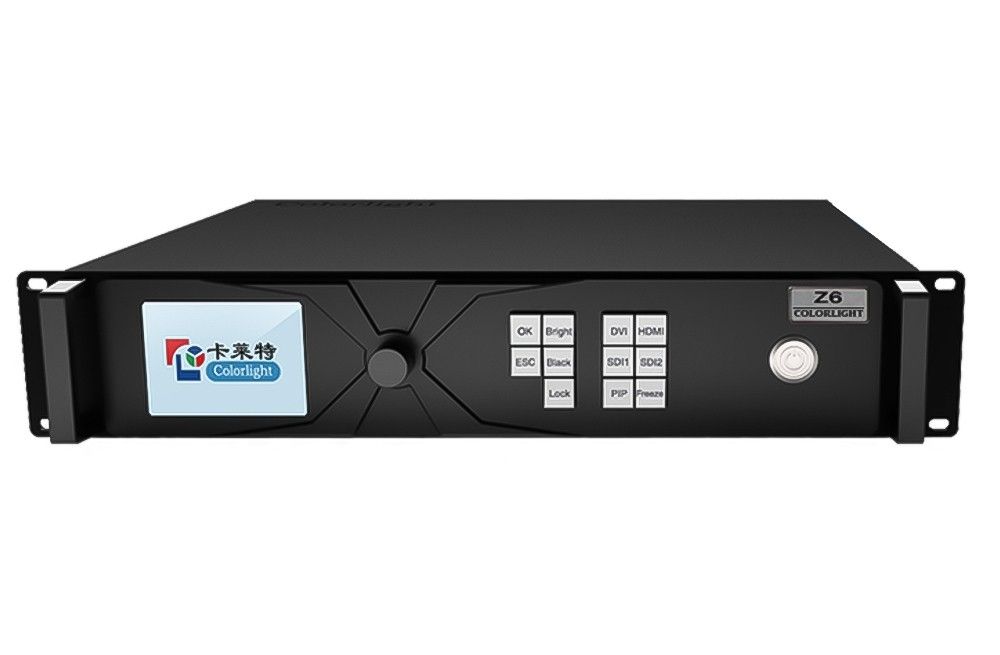

| NO | Name | Function |
| 1 | 3.5-inch LCD | Display operation menu and system information |
| 2 | Knob | Turning knob to select or adjust |
| OK：Enter key | ||
| 3 | Function keys | ESC：Escape current operation or selection |
| Bright：Brightness options | ||
| Black：Blank screen | ||
| Lock：Lock keys | ||
| 4 | Selection keys | PIP：PIP switch |
| Freeze：Freeze screen | ||
| DVI/HDMI/SDI1/SDI2：video source selection |
| Input Interface | ||
| 1 | SDI | 4 3G-SDI inputs |
| 2 | HDMI | HDMI2.0 input |
| 3 | DVI | 4 DVI inputs |
| Output Interface | ||
| 1 | Gigabit Ethernet | 16 Gigabit Ethernet outputs |
| Controlling Interface | ||
| 1 | 100M Ethernet | 2100M-Ethernet Control ports (communication with PC, or access |
| network), and can be used as Artnet control port | ||
| 2 | USB_OUT | USB output, cascading with next controller |
| 3 | USB_IN | USB input, which connect with PC to configure parameters |
| 4 | GENLOCK | Genlock signal input ensures synchronism of display image |
| 5 | GENLOCK_LOOP | Genlock synchronous signal loop output |
| 6 | 3D sync interface | Connect to 3D emitter |
