Description

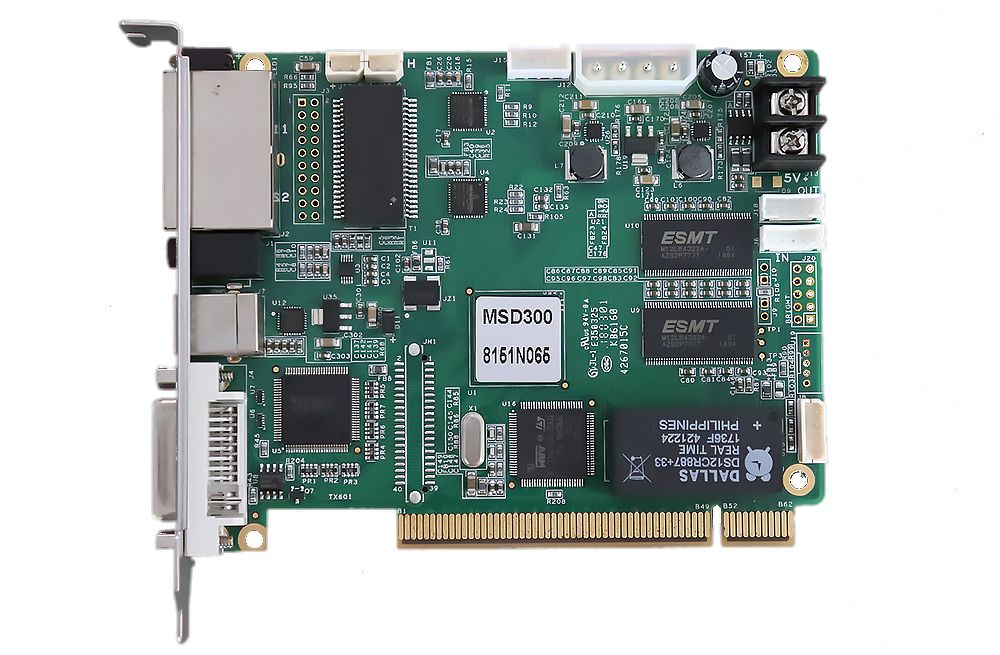

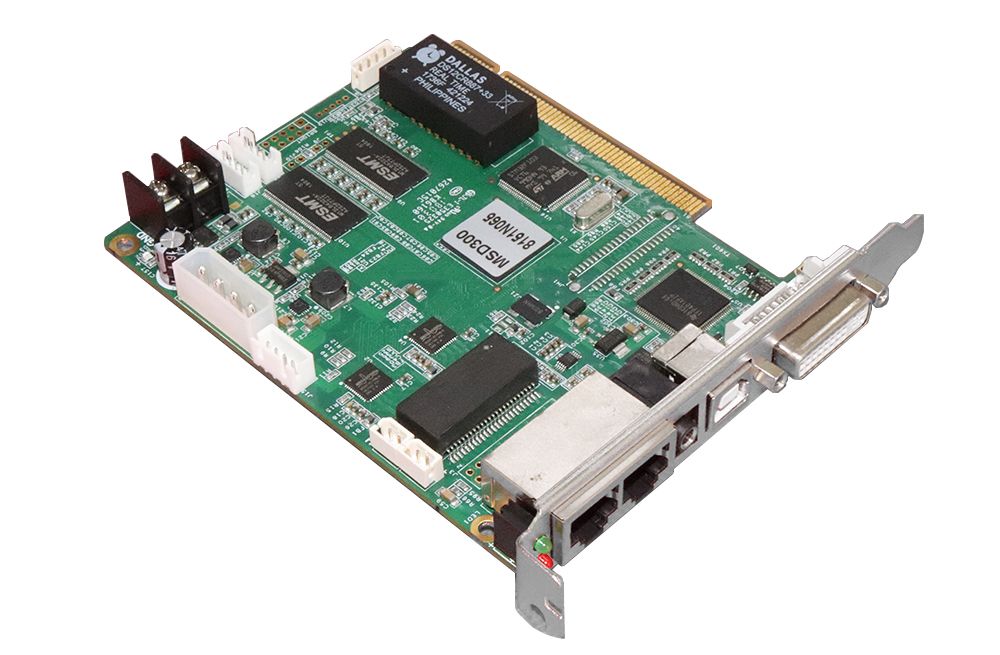

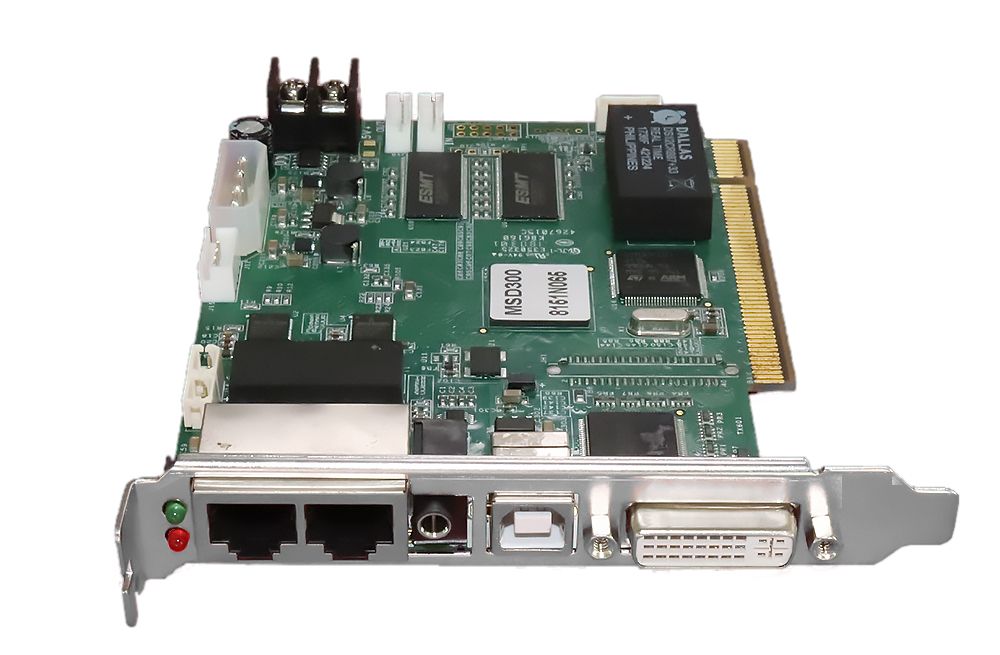

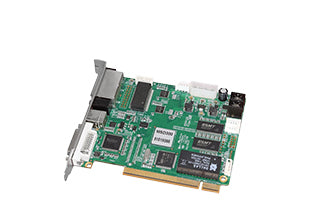

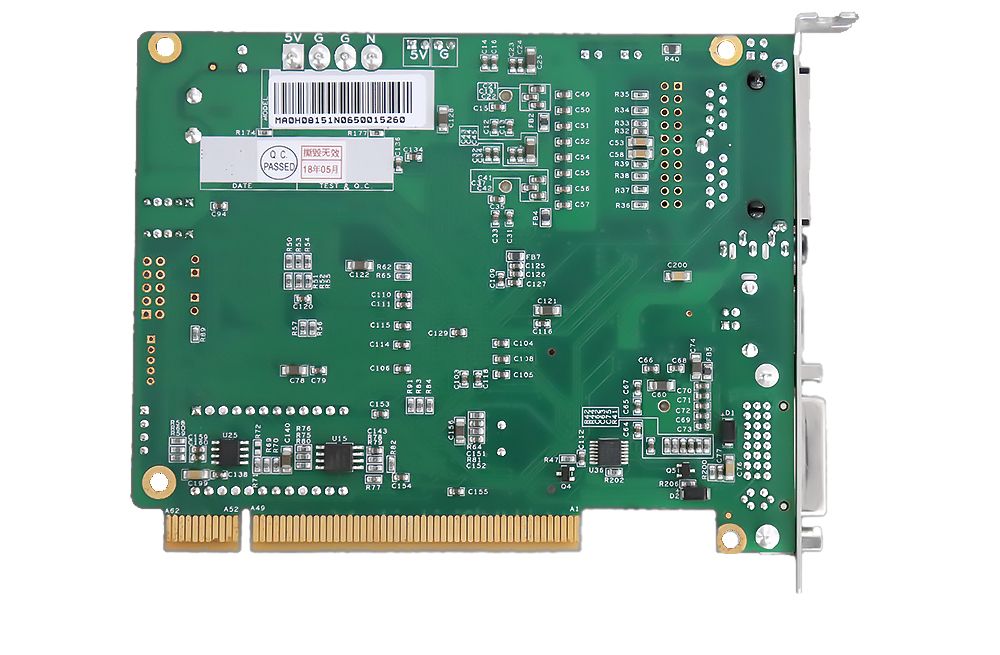

Full color Novastar MSD300/MSD300-1 LED sending cards Details & Specification
- 1 DVI video input;
- 1 audio input;
- 2 Ethernet port outputs;
- USB control interface which is able to be cascaded for uniform control;
- Supports resolution of 1280×1024, 1024×1200, 1600×848, 1920×712 or 2048×668;
- 1 light sensor interface.
Please be aware :
Due to audio chip is temporarily out of supply. MSD300 is temporarily changed to MSD300-1.
difference between the two is that MSD300-1 has no audio output, the others are the same.
| Electrical Parameters | Input voltage | DC 3.3 V–5.5 V | |
| Rated current | 0.5 A | ||
| Rated power consumption | 2.5 W | ||
| Operating Environment | Temperature | -20°C–75°C | |
| Humidity | 0% RH–90% RH, non-condensing | ||
| Dimensions | 126.1 mm × 99.7 mm × 14.0 mm | ||
| Net Weight | 108.7 g | ||
| Certifications | EMC, RoHS, PFoS, FCC | ||
| Packing Information | Each unit is shipped with a carrying case and packing box.
Packing rules: The product and accessories packed in the packing box and the packing box packed in the carrying case |
||
| Carrying case | 335 mm × 190 mm × 62 mm
Craft paper box printed with NOVASTAR One unit in each box Accessories: 1 × power cord, 1 × USB cable, 1 × DVI cable |
||
| Packing box | 400 mm × 365 mm × 355 mm
Craft paper box printed with NOVASTAR |
||
