Description

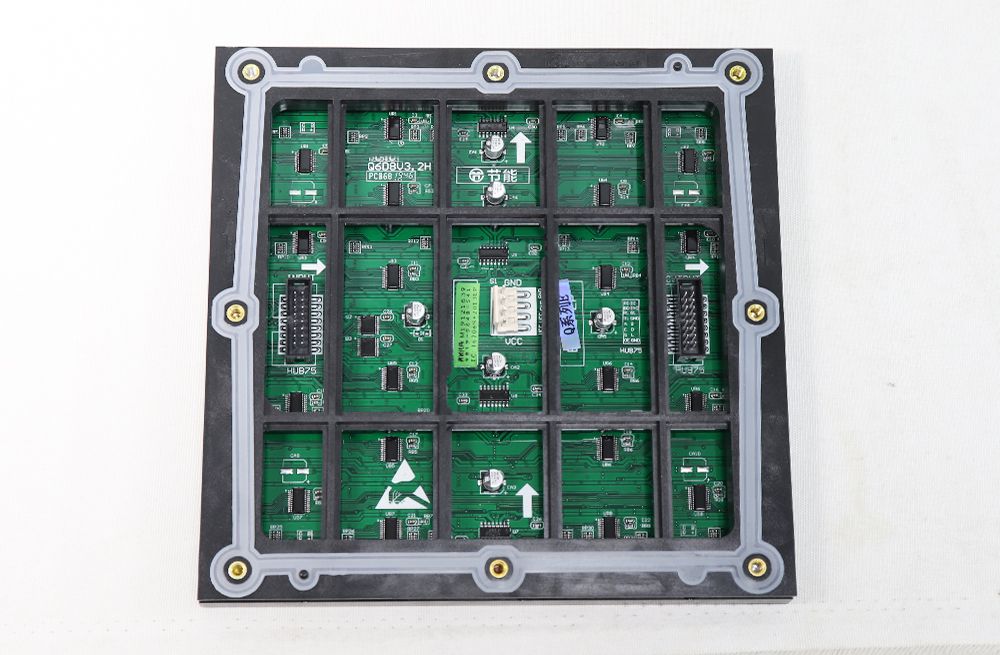

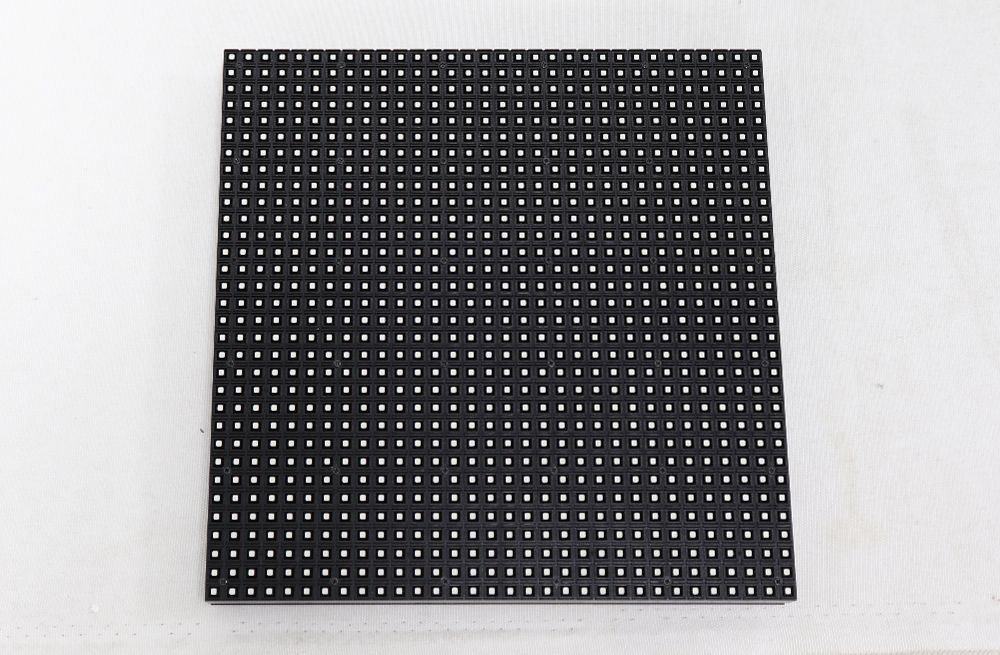

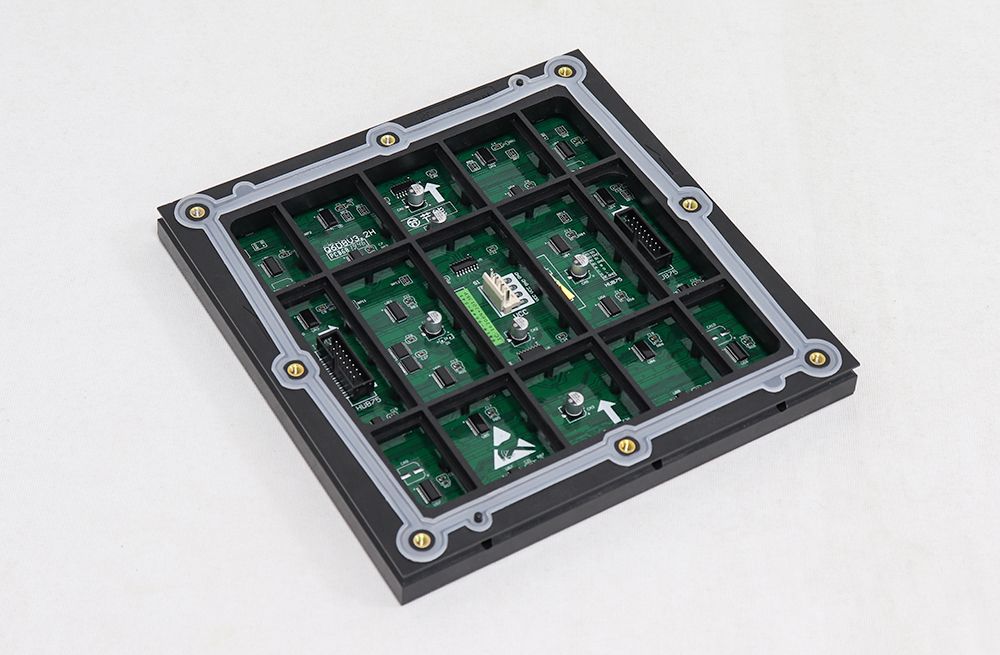

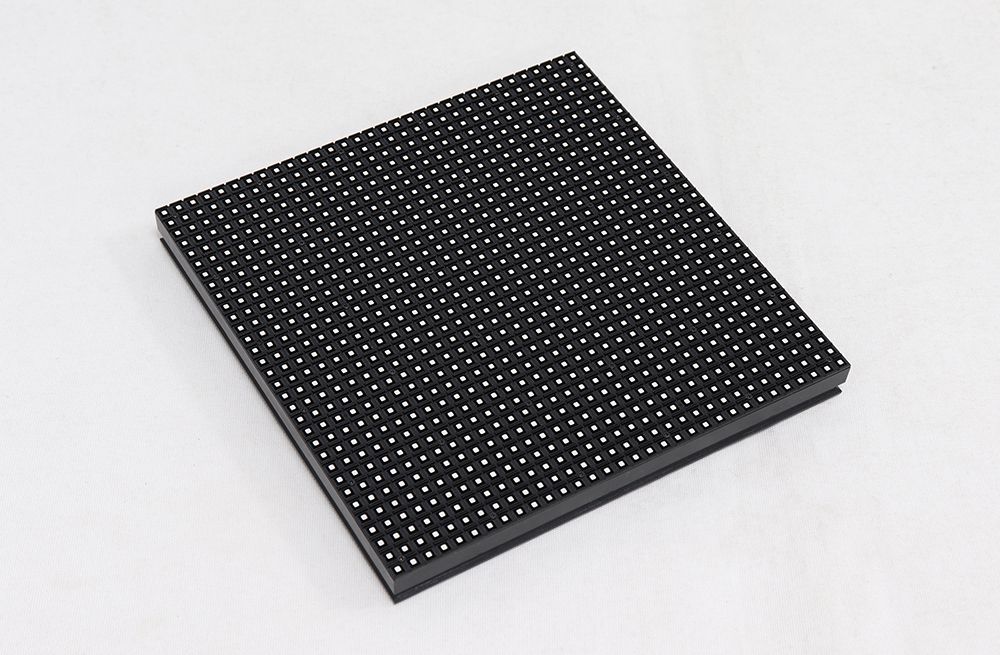

P6 Outdoor SMD3535 LED Module 192x192mm Features:
1) Small pixel pitch 6mm for SMD outdoor LED screen, good solution for outdoor rental LED screen and outdoor fixed installation LED display.
2) 6mm is one of the pixel pitches of usual Outdoor LED screens. Therefore, it is a very good solution for rental LED screen for both outdoor and indoor use.
3) Kinglight SMD2525 LED, top quality and high reliability.
4) Reasonable PCB design with good heat radiation and achieve long life span.
P6 Outdoor SMD3535 LED Module 192x192mm Parameters:
|
LED Lamp Specification |
||||||
|
Color |
Package |
Intensity |
Viewing angle |
Wavelength |
Testing condition |
|
|
Red |
SMD3535 |
800-1100mcd |
120 |
620-625nm |
25℃,20mA |
|
|
Green |
SMD3535 |
1600-2250mcd |
120 |
515-530nm |
25℃,20mA |
|
|
Blue |
SMD3535 |
350-500mcd |
120 |
465-475nm |
25℃,20mA |
|
|
Module Parameter |
||||||
|
Pixel Pitch |
6mm |
|||||
|
Pixel configuration |
SMD2535 Black |
|||||
|
Density |
27,778 pixels/㎡(real pixel) |
|||||
|
Module Resolution |
32pixel(L) * 32pixel(H) |
|||||
|
Module Dimension |
192mm(L) * 192mm(H) * 25mm(D) |
|||||
|
Driving Mode |
Constant current, 1/8 duty |
|||||
|
Module Mask |
Pure black mask---high contrast screen |
|||||
|
Electricity Parameter |
||||||
|
Optical Ratings |
||||||
|
Brightness |
≥6,500 cd/㎡ |
|||||
|
Viewing Angle |
120°(Horizontal); 120°(Vertical) |
|||||
|
Best Viewing Distance |
≥6m |
|||||
|
Gray Grade |
16,384 levels for each color |
|||||
|
Display Color |
4.39 Trillion Colors |
|||||
|
Brightness Adjustment |
100 grades by software or automatically by sensor |
|||||
|
Max. Power Consumption |
30W |
|||||
|
Control System |
||||||
|
Correction Scale Level |
12bits |
|||||
|
Frame Frequency |
≥60Hz |
|||||
|
Screen Refresh Frequency |
≥1,920Hz |
|||||
|
Gamma Correction |
-5.0～5.0 |
|||||
|
Input Signal |
Composite Video, S-video, DVI, HDMI, SDI, HD-SDI |
|||||
|
Control Distance |
100m(Ethernet cable); 20KM(optical fiber cable) |
|||||
|
Support VGA Mode |
800*600, 1024*768, 1280*1024, 1600*1200 |
|||||
|
Color Temperature |
5000—9300 adjustable |
|||||
|
Brightness Correction |
Pixel by pixel, module by module, cabinet by cabinet |
|||||
|
Reliability |
||||||
|
Working Temperature |
-20～+60 ºC |
|||||
|
Stored Temperature |
-30～+70 ºC |
|||||
|
Working Humidity |
10%～90% RH |
|||||
|
Lifetime |
100,000 hours |
|||||
|
MTBF |
5000 hours |
|||||
|
Continuous Working Time |
≥72 hours |
|||||
|
Protection Grade |
IP65 |
|||||
|
Out of Control Pixel Rate |
≤0.01% |
|||||
