Description
Output power:200W Max
Power factor:0.50@230Vac
Dissipate heat::Air cooling

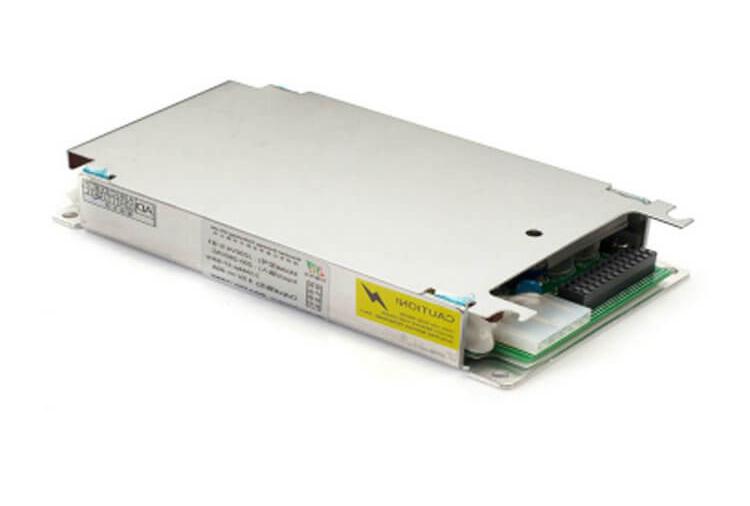

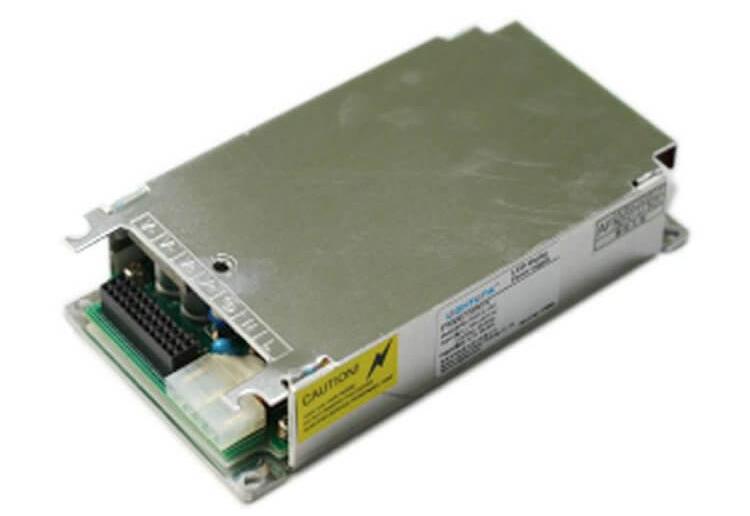

G-energy JPS Series JPS200P(4.5V)-F LED Displays Power Supply
JPS200P(4.5V)-F upgrade version
| Input voltage | 100-240Vac,50-60Hz |
|---|---|
| Output power | 200W Max |
| Power factor | 0.50@230Vac |
| Insulation voltage | I/P-O/P:3.0KVac |
| I/P-FG:1.5KVac;O/P-FG:0.5KVac | |
| Leakage current | 0.30mA@230Vac |
| Protection | under voltage, Overload, Short circuit |
| Working temperature | -30~ 60℃ |
| Storage temperature | -40~ 100℃ |
| Safety standards | GB4943,EN60950 |
| Dissipate heat: | Air cooling |
| Size/mm | 145×76×28 |
