Description
1.Support Indoor & outdoor full-color & single/dual color module &Virtual module
2.Support Video,Animation, Graphics,Images,Text, etc.
3.Support 0~65536 gray level
4.U-disk to infinitely expand the memory storage , U-disk plug-and-play
5.Support Standard two-track stereo output
6.No need set IP, HD-A30/ A30+ could be identified by controller ID automatically
7.Support network cluster management and Internet/3G remote management.

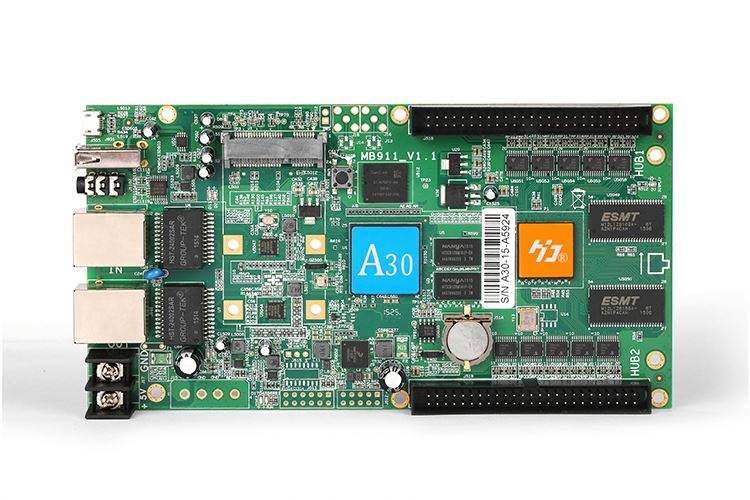

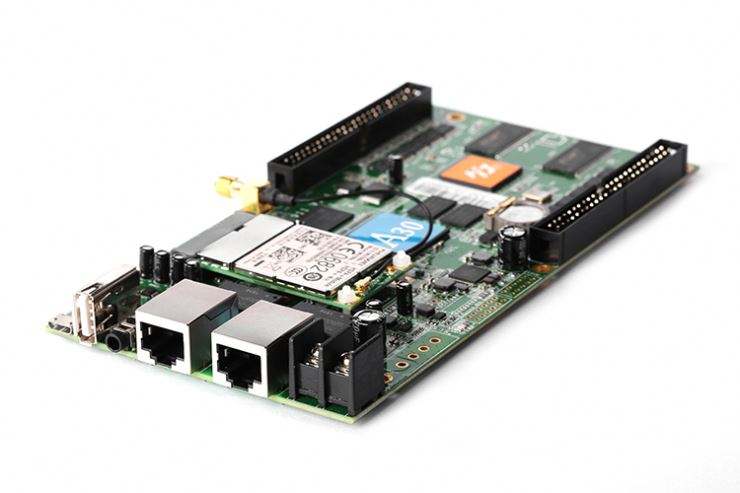

Huidu A30 Asynchronous Control Cards Wifi Version Version Parameters Details Parameter
| Type | Indoor & outdoor full-color & single/dual color module &Virtual module
SupportMBI5041/5042,MBI5050,MY9221.MY9268 etc and PWM |
| Scan mode | Support 1-32 scan randomly and static |
| Sending card
Control range |
HD-A30: 1024W*512H
HD-A30+:1024W*512 2048W*256H 512W*1024H |
| Receiving card
Range(1PCS) |
HD-R500: 256W*128H
HD-R501: 256W*192H Usually 1PCS Cabinet use 1PCS Receiving card |
| Gray Scale | 0-65536 |
| Video format | AVI, WMV, MP4, 3GP, ASF, MPG, FLV, F4V, MKV, MOV, DAT, VOB, TRP, TS, WEBM, etc. |
| Image format | BMP, GIF, JPG, JPEG, PNG, GIF,PBM,PGM,PPM,XPM,XBM etc. |
| Text | Text and Image being edited directly. Document like Word, Excel, PPT,PPTX ;txt, rtf, html etc. can be edited as well after importing directly. |
| Time | Classic Analog clock, digital clock and various of clock with image background |
| Audio output | Double track stereo audio output |
| Memory | 4G Flash memory ; Indefinite expanding of U-disk memory. |
| Communication | 10/100M/1000M RJ45 Ethernet;3G;Internet;LAN |
| Working Voltage | 4.5-5.5V |
| Working Temperature | -20℃-80℃ |
|
Port |
IN:5V Power x1, 10/100M/1000M RJ45 x1, USB 2.0 x1,Testing button x1
OUT:1000M RJ45 X1,Audio x1, 50PIN Port x 2 |
| Software | HDPlayer |
Huidu A30 Asynchronous Control Cards Wifi Version Version Model Selection Reference
| Model | Control range Pixel
（Width*Height） |
3G sub model |
| HD-A30 | 1024W*512H
( Itself also can be working as 1PCS receiving card ) |
HD-A30W（WCDMA）
HD-A30C（CDMA 2000） |
| HD-A30+ | 1024W*512H / 2048W*256H /512W*1024H
(It self can’t work as receiving card) Support Linsn /color light Receiving card |
HD-A30+W（WCDMA）
HD-A30+C（CDMA 2000） |
| HD-R500 | Suggest：256W*128H |
/ |
| HD-R501 | Suggest：256W*192H |
Specifications download:
Full Color Asynchronous Controller Card A30 Specification.pdf
