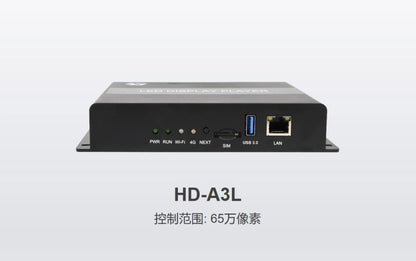

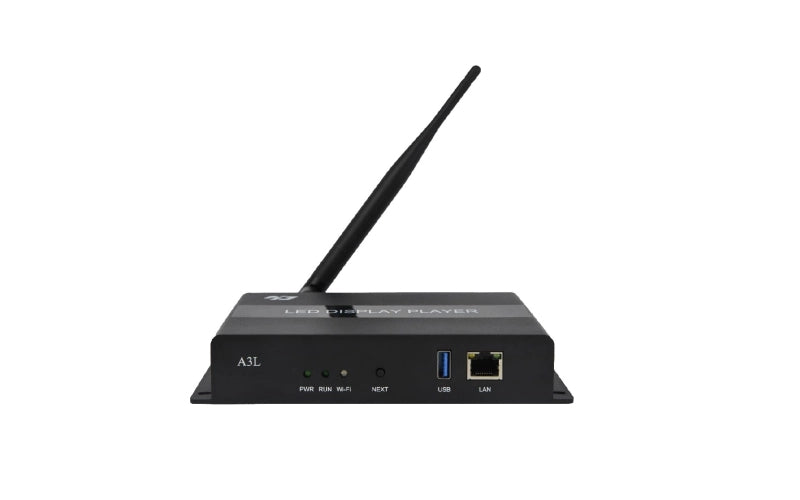

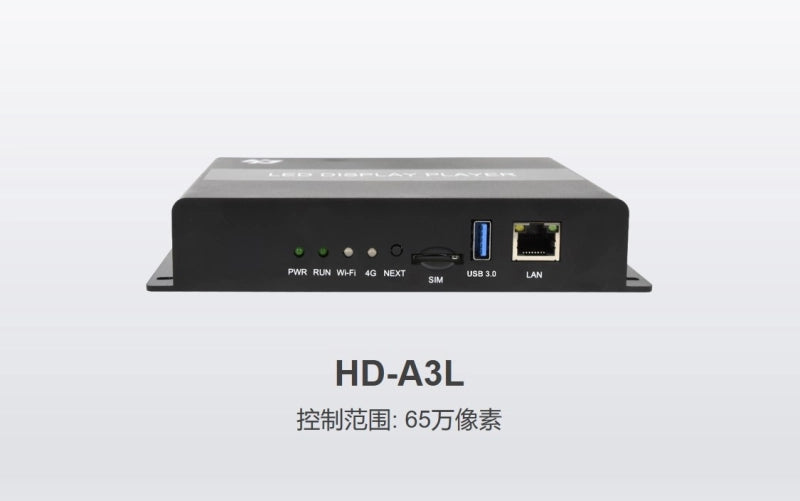

A3L is an LED display multimedia player that supports playing videos, pictures, GIF animations,texts, WPS documents, tables, clocks, timing, and other programs.Standard configuration of Wi-Fi, support mobile phone APP - "LedArt" wireless control; support
access to the "XiaoHui Cloud" platform, easy to achieve Internet remote cluster management; The capacity storage space makes asynchronous playback worry-free; it supports external connection of various environmental monitoring sensors to realize real-time viewing of environmental monitoring data.

1. Features：

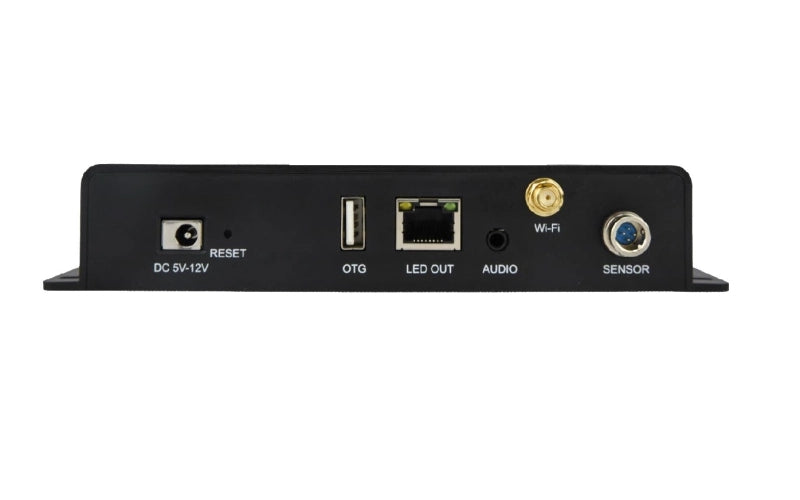

Input:

1. Support 1 communication network port for debugging parameters, faster program sending speed;
2. Support 1 channel USB2.0, 1 channel USB3.0 communication interface, which can be used for inserting programs and expanding capacity;
3. Supports 1 channels sensor input interface, externally connected to various environmental monitoring sensors.

Output:

1. Standard 1 Gigabit output network ports, directly cascaded HD-R series receiving card control display;
2. The maximum control range is 655,360 pixels, the maximum horizontal (discounted) support is 8192 pixels, and the maximum vertical support is 3840 pixels;
3. 1 channel TRS 3.5mm standard two-channel audio output.

Functions:

1. Standard Wi-Fi, support mobile phone APP wireless control (support STA mode, in this mode, the device can connect to the nearby Wi-Fi network);
2. Support multi-channel video window playback (support up to 1-channel 4K or 2-channel 1080P or 4-channel 720P or 6-channel 360P);

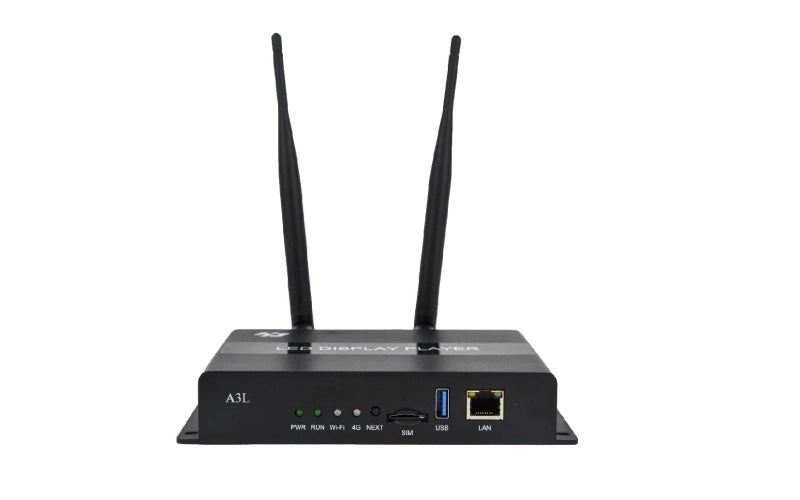

4. Support 4G (optional) access to XiaoHui Cloud platform to realize Internet remote cluster management.


 2. Control Mode：

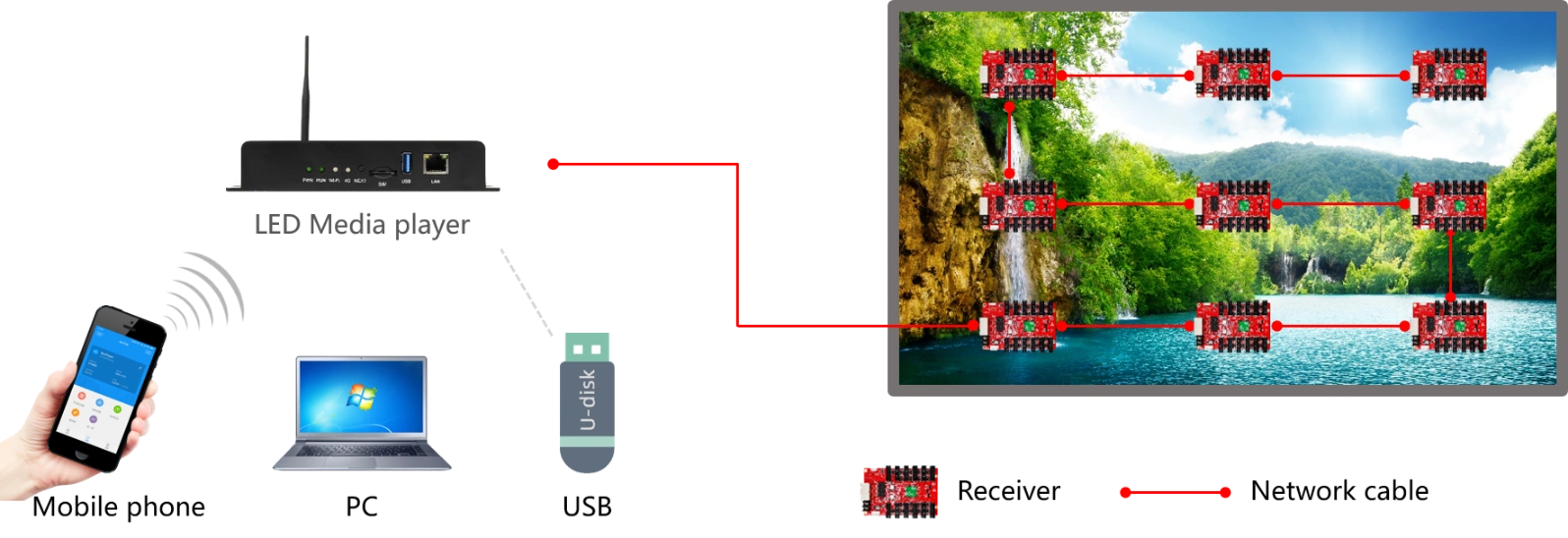

1. Single-node control, support Wi-Fi, network port direct connection, USB interface for communication.

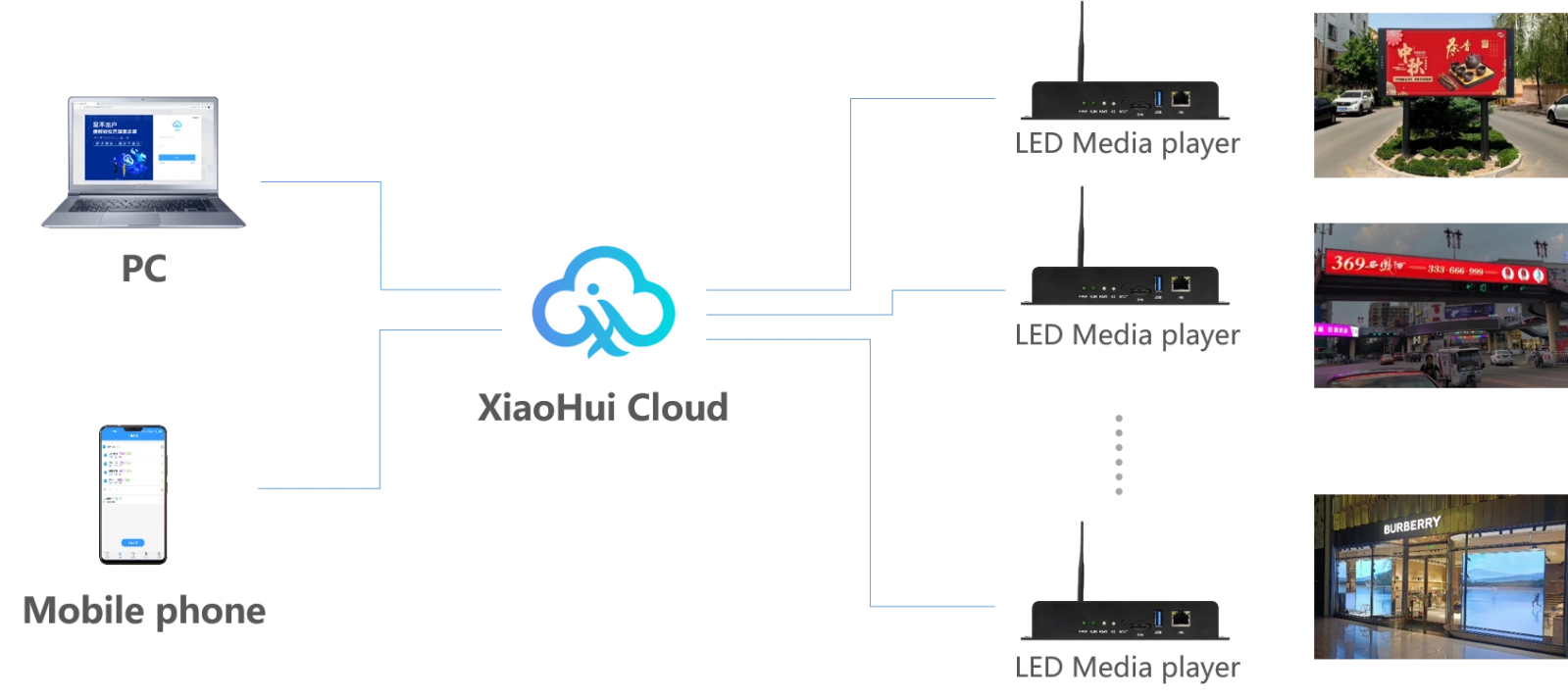

2. Cluster control, support Internet remote control.

Specifications Download

HD-A3L Specification V1.0
