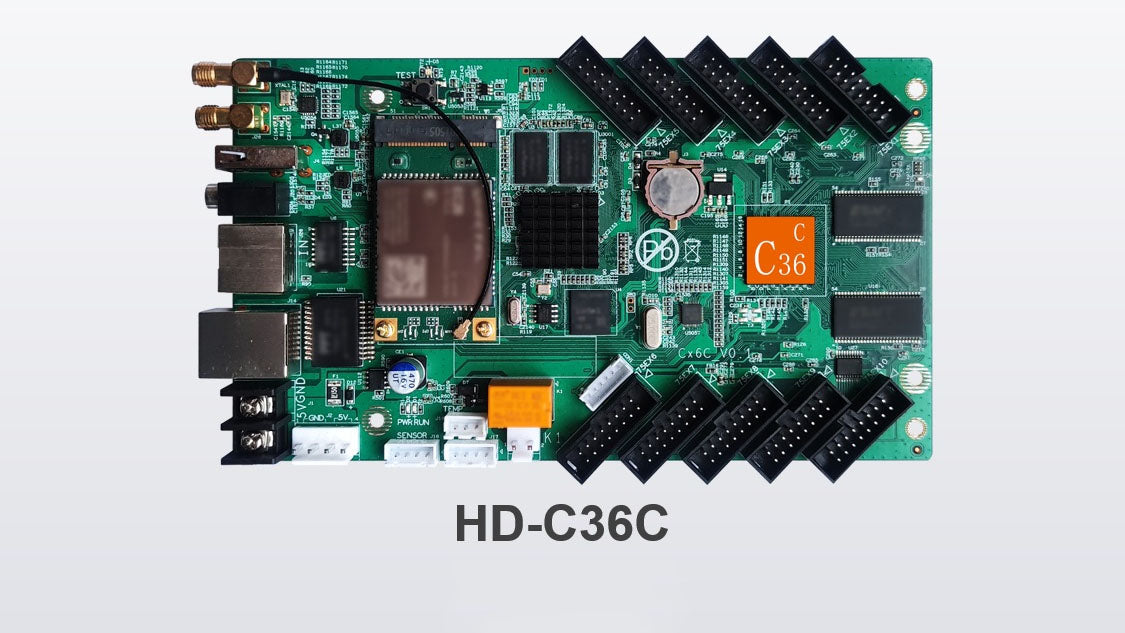

HUIDU HD-C36C Full Color Asynchronous LED Display Control Card

1 1

HUIDU HD-C36C Full Color Asynchronous LED Display Control Card

HD-C36C Full Color Asynchronous Controller System is a LED control system that supports mobile APP wireless management, Web-based cloud remote control, relay function for remote switch on/off power supply and 60Hz frame HD video image output and it support 524,288 pixels control capacity.

HUIDU HD-C36C Full Color Asynchronous LED Display Control Card Features：

Control Range: 524,288 pixels.
4GB memory, support expending memory by U-disk.
Support HD video hardware decoding, 60Hz frame rate output.
Support widest 8192 pixel, Highest 1024.
No need set IP address, it could be identified by controller ID automatically.
Unified management of more LED display through Internet or LAN.
Come wiht Wi-Fi, Mobile APP management.
With a relay to control the power supply remotely.
Equipped 3.5mm standard audio interface output.
Support 4G connect to Internet (Optional).
HD C36 is equipped with 2-wire 50PIN HUB, which can be used for a receiving card.
HD C36C is equipped with 10-wire HUB75E, which can be used for a receiving card.

HUIDU HD-C36C Full Color Asynchronous LED Display Control Card Control Mode：

Internet unified management: The play box can be connected to the Internet through 4G (optional), network cable connection, or Wi-Fi Bridge.

Asynchronous one-to-one control: Update programs by network cable connections, Wi-Fi connections or USB flash drives. LAN (cluster) control can access the LAN network through by network cable connection or Wi-Fi Bridge.

HUIDU HD-C36C Full Color Asynchronous LED Display Control Card Parameter:

Function	Parameters
Module type	Compatible with indoor and outdoor full color and single color module Support conventional chip and mainstream PWM chip
Scan Mode	Static to 1/64 scan mode
Control Range	1024*512, widest 8192, highest 1024
Gray Scale	256-65536
Basic functions	Video, Pictures, Gif, Text, office, Clocks, Timing etc. Remote, Temperature, Humidity, Brightness etc.
Video format	Support 1080P HD video hardware decoding, direct transmission, without transcoding waiting. 60Hz frame frequency output； AVI, WMV, MP4, 3GP, ASF, MPG, FLV, F4V, MKV, MOV, DAT, VOB, TRP, TS, WEBM, etc.
Image Format	Support BMP, GIF, JPG, PNG, PBM, PGM, PPM, XPM, XBM etc.
Text	Text editing, Image, Word, Txt, Rtf, Html etc.
Document	DOC, DOCX, XLSX, XLS, PPT, PPTX etc. Office2007Document format.
Time	Classic Analog clock, digital clock and of clock with image background.
Audio output	Double track stereo audio output.
Memory	4GB Flash memory; Indefinite expanding of U-disk memory.
Communication	Ethernet LAN port, 4G network (optional), Wi-Fi, USB.
Working Temperature	-20℃-80℃
Port	INPUTS: 5V DC1, 100 Mbps RJ451, USB 2.01, test button1, sensor port1, GPS port1. OUT:1Gbps RJ451, AUDIO1
Power	8W

$80.00 USD

Sale Sold out

Taxes included.

SKU:HUIDU HD-C36 without 4G module

HUIDU HD-C36C HUIDU HD-C36C without 4G module HUIDU HD-C36C with 4G module

Quantity

View full details

Your cart
Variant	Variant total	Quantity	Price	Variant total
HUIDU HD-C36C without 4G moduleHUIDU HD-C36 without 4G module	HUIDU HD-C36C without 4G moduleHUIDU HD-C36 without 4G module $80.00/ea	$0.00	Quantity Sold out	$80.00/ea	$0.00

HUIDU HD-C36C with 4G moduleHUIDU HD-C36 with 4G module	HUIDU HD-C36C with 4G moduleHUIDU HD-C36 with 4G module $143.00/ea	$0.00	Quantity Sold out	$143.00/ea	$0.00

View cart

Total items

$0.00

Product subtotal

Taxes included. Discounts and shipping calculated at checkout.

View cart

Description

HUIDU HD-C36C Full Color Asynchronous LED Display Control Card Features：

Control Range: 524,288 pixels.
4GB memory, support expending memory by U-disk.
Support HD video hardware decoding, 60Hz frame rate output.
Support widest 8192 pixel, Highest 1024.
No need set IP address, it could be identified by controller ID automatically.
Unified management of more LED display through Internet or LAN.
Come wiht Wi-Fi, Mobile APP management.
With a relay to control the power supply remotely.
Equipped 3.5mm standard audio interface output.
Support 4G connect to Internet (Optional).
HD C36 is equipped with 2-wire 50PIN HUB, which can be used for a receiving card.
HD C36C is equipped with 10-wire HUB75E, which can be used for a receiving card.

HUIDU HD-C36C Full Color Asynchronous LED Display Control Card Control Mode：

Internet unified management: The play box can be connected to the Internet through 4G (optional), network cable connection, or Wi-Fi Bridge.

Asynchronous one-to-one control: Update programs by network cable connections, Wi-Fi connections or USB flash drives. LAN (cluster) control can access the LAN network through by network cable connection or Wi-Fi Bridge.

HUIDU HD-C36C Full Color Asynchronous LED Display Control Card Parameter:

Function	Parameters
Module type	Compatible with indoor and outdoor full color and single color module Support conventional chip and mainstream PWM chip
Scan Mode	Static to 1/64 scan mode
Control Range	1024*512, widest 8192, highest 1024
Gray Scale	256-65536
Basic functions	Video, Pictures, Gif, Text, office, Clocks, Timing etc. Remote, Temperature, Humidity, Brightness etc.
Video format	Support 1080P HD video hardware decoding, direct transmission, without transcoding waiting. 60Hz frame frequency output； AVI, WMV, MP4, 3GP, ASF, MPG, FLV, F4V, MKV, MOV, DAT, VOB, TRP, TS, WEBM, etc.
Image Format	Support BMP, GIF, JPG, PNG, PBM, PGM, PPM, XPM, XBM etc.
Text	Text editing, Image, Word, Txt, Rtf, Html etc.
Document	DOC, DOCX, XLSX, XLS, PPT, PPTX etc. Office2007Document format.
Time	Classic Analog clock, digital clock and of clock with image background.
Audio output	Double track stereo audio output.
Memory	4GB Flash memory; Indefinite expanding of U-disk memory.
Communication	Ethernet LAN port, 4G network (optional), Wi-Fi, USB.
Working Temperature	-20℃-80℃
Port	INPUTS: 5V DC1, 100 Mbps RJ451, USB 2.01, test button1, sensor port1, GPS port1. OUT:1Gbps RJ451, AUDIO1
Power	8W
