Description

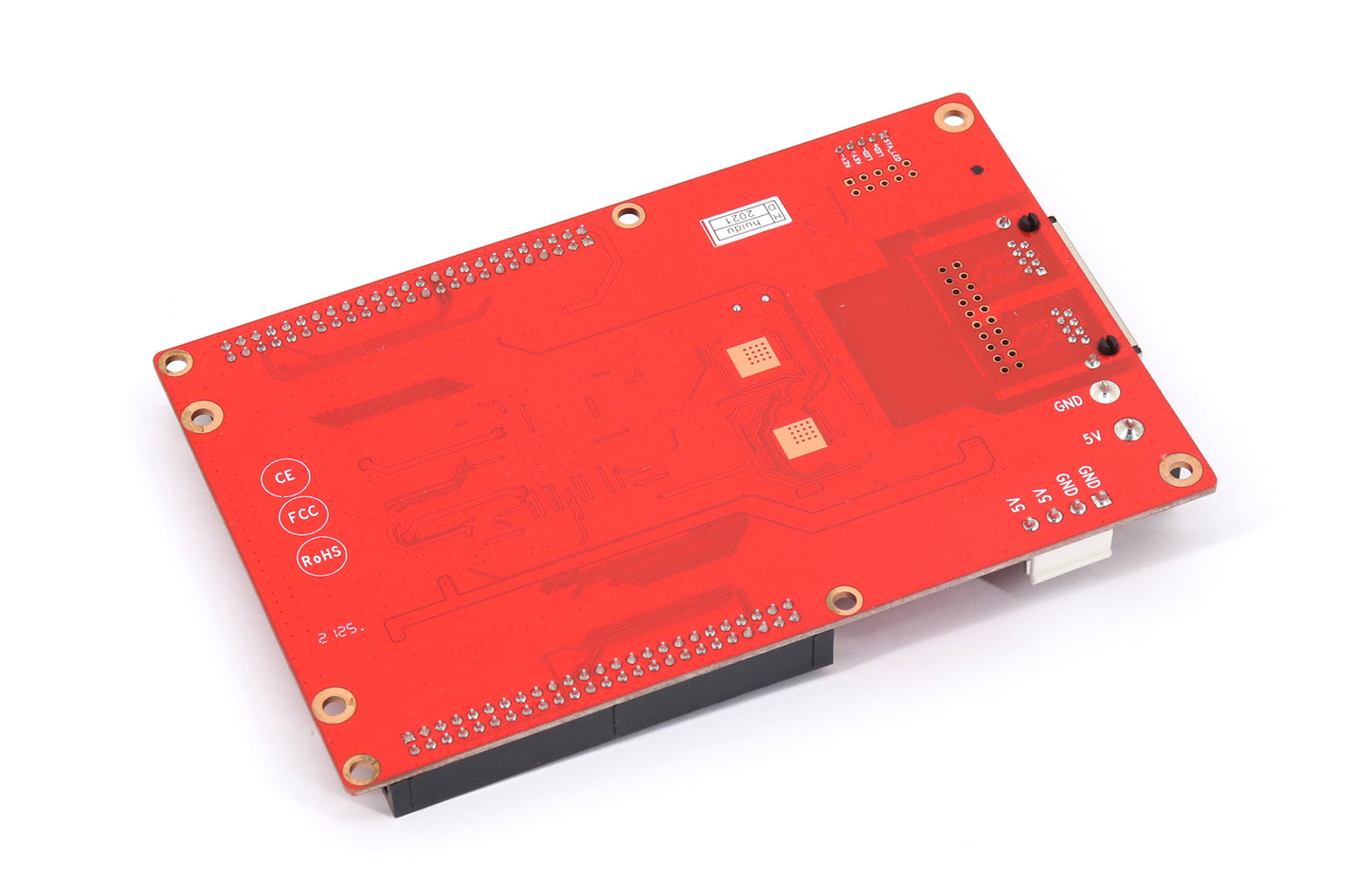

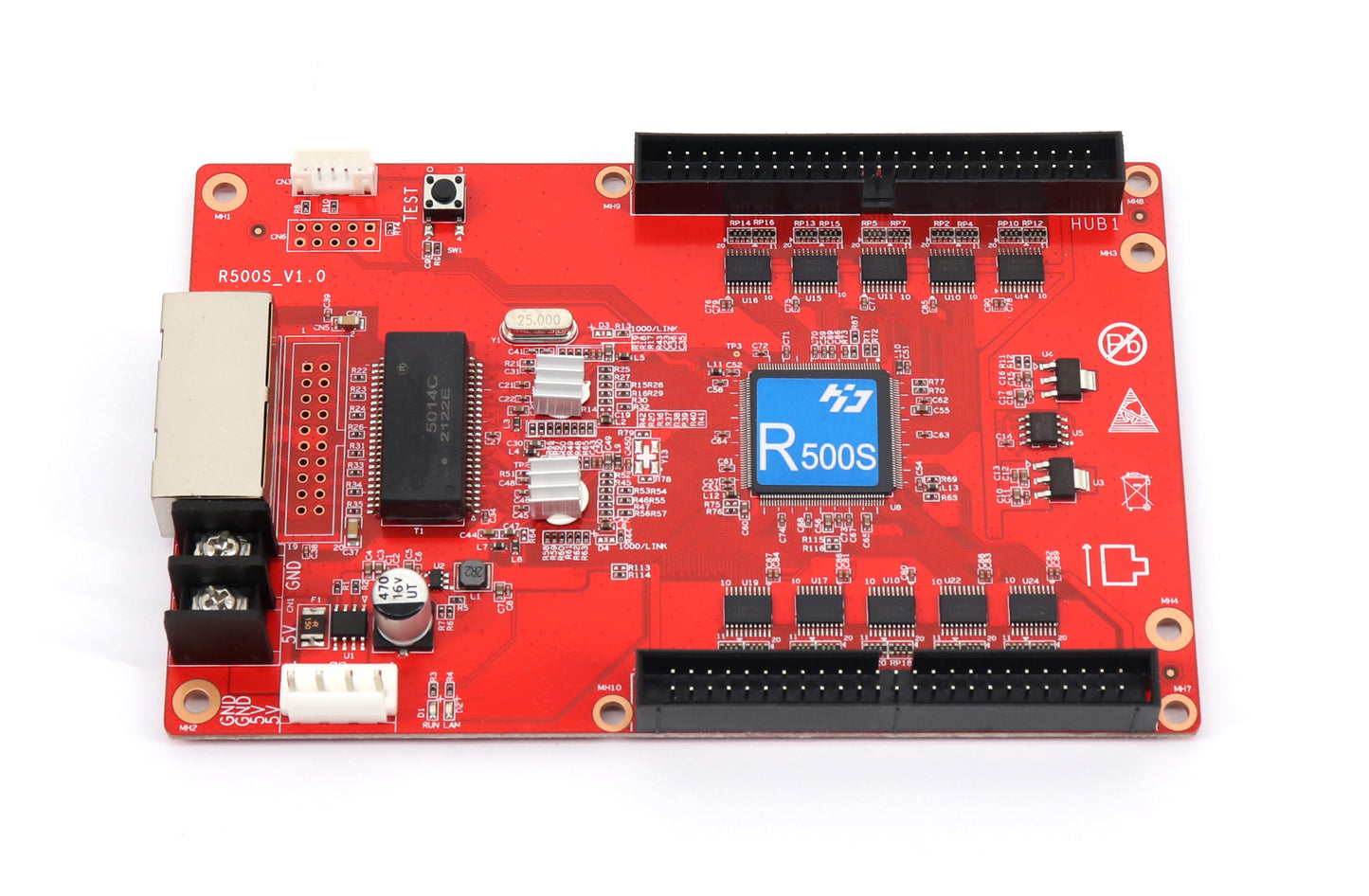

Huidu HD-R500s Asynchronous Full Color Receiver Card Introduction:
1) receiving the control computer via Gigabit Ethernet data cable, without having to send the card;
2) Dual Ethernet ports automatically recognize input and output.
Huidu HD-R500s Asynchronous Full Color Receiver Card Specification:
| Module Type | Be compatible with indoor/
outdoor single/dual/full color module;virtual module is supported;PWM chips such as MBI5041/5042, MBI5050, MY9221, MY9268 are supported; |
| Scan Mode | All scan modes from static to
1/32 are supported. |
| Area of single receiver card | 256*128（recommended） |
| Quantity of single network
line cascading receiver card |
64pcs |
| Connection of multiple cards | Receiver card can rank
randomly, setting the connection location by software’s automatic identification or by hand. |
| Grey Level | 0-65536 |
| Smart Setting | Smart setting is completed by
few simple steps, screen unit plates in any alignment can be matched by screen alignment setting. |
| Play Content | Video, animation, picture, text,
word, table, PPT, clock and time are supported to play. |
| Test Function | The receiving card integrates
the screen testing function, users can carry out color band (including red, green, blue and white), gray, slant, grid and multi points tests by pressing the self-detection button. |
| Time Switch | Support customized/computer
time swith |
| Port | Two 5V power ports，two
Ggabit Ethernet ports and a group of standard switch ports |
| Input Voltage | 4V-6V |
| Work Temperature | -20℃-85℃ |
Specification Download:
Huidu HD-R500s Asynchronous Full Color Receiver Card Specification
