Description

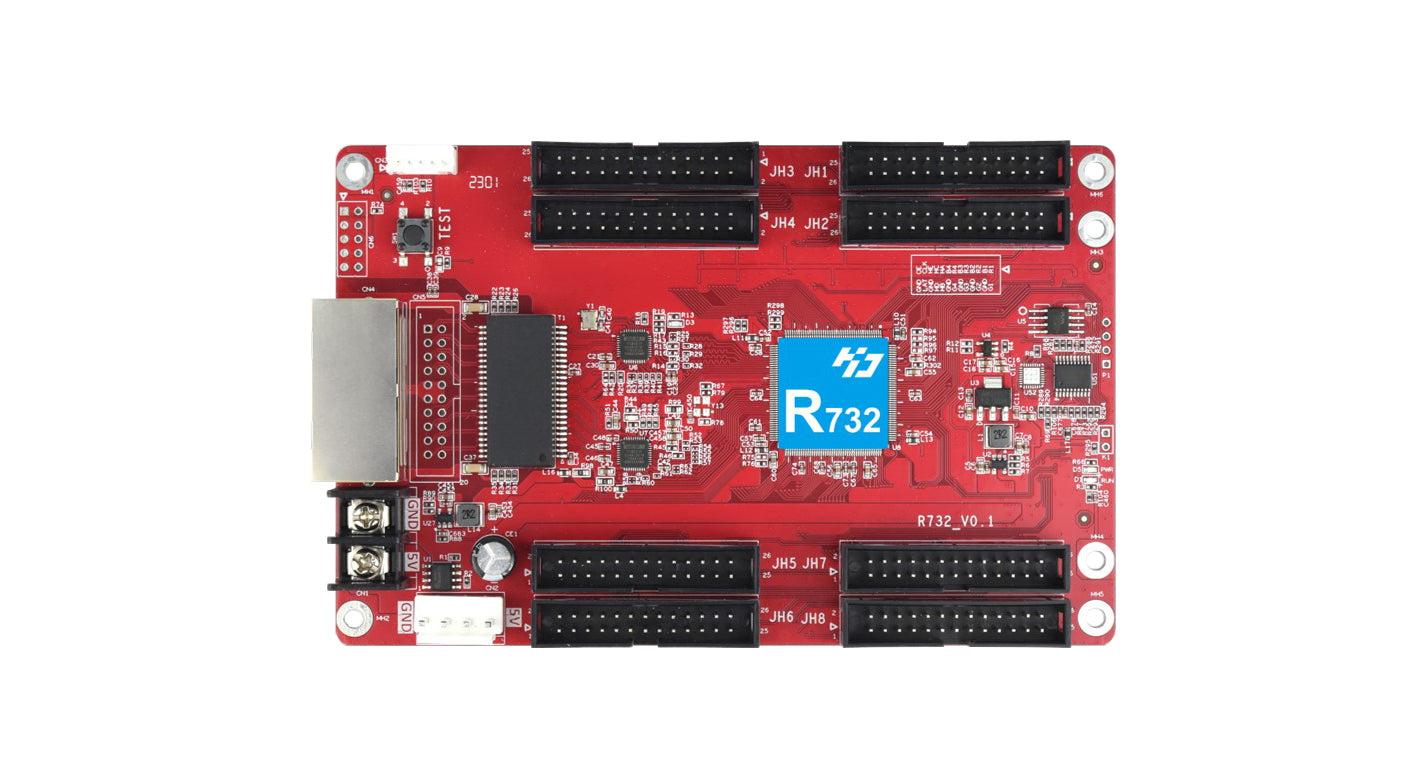

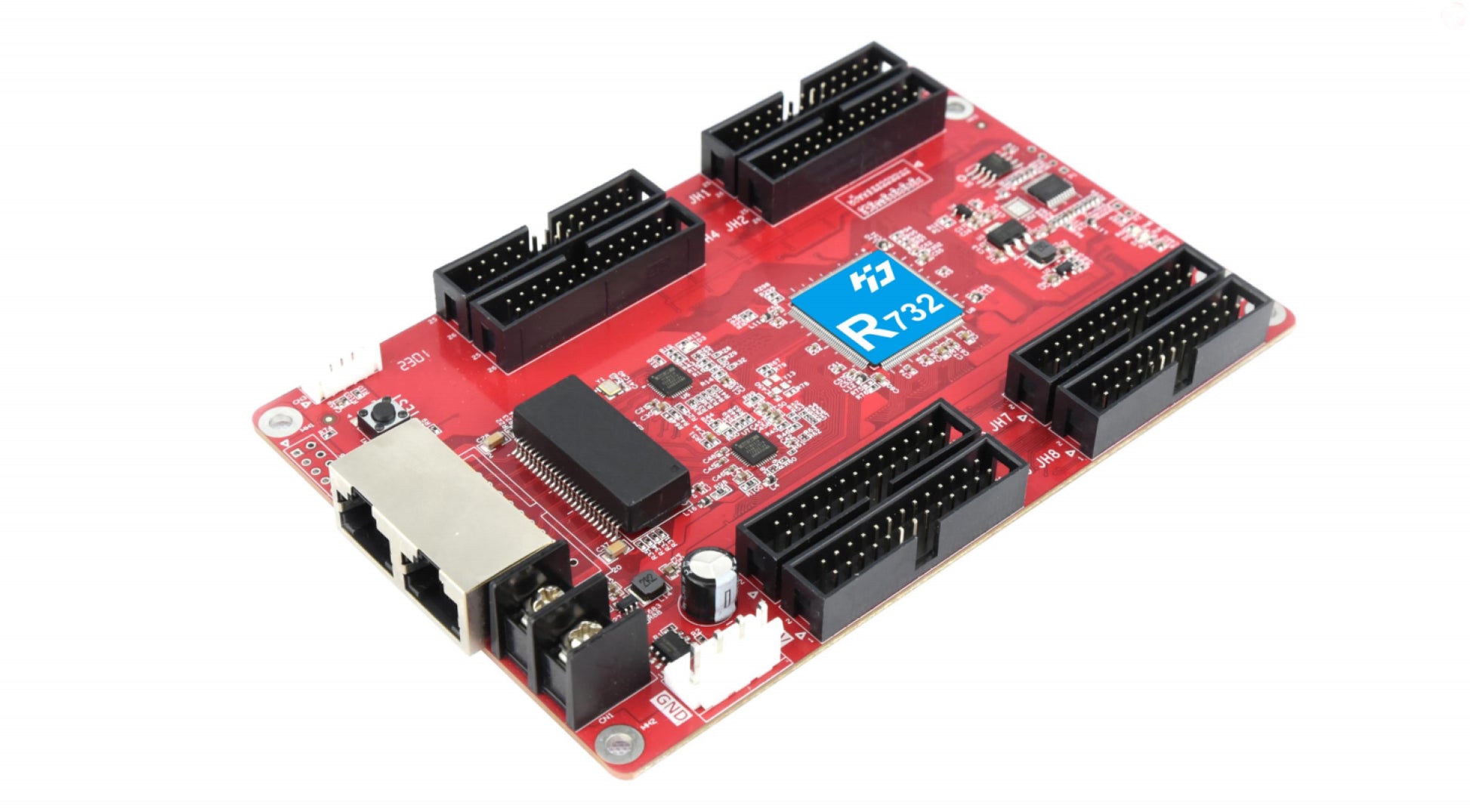

R732 is a receiving card launched by Huidu Technology for small-pitch LED display screens. A single card supports the control of a maximum of 260,000 pixels and can be used in cascade with all sending cards of Huidu Technology.
HuiDu HD-R732 Small spacing led video wall special receiving card Features:
1. Integrate 8 HUB320 interfaces
2. Support conventional chips and PWM chips
3. Support static module, any scanning method within 1/128 scan
4. Support data group exchange and data group offset setting
5. Intelligent settings, sampling points, tracing points, etc.
6. Support multi-card cascading, arbitrary ordering
7. Maximum loading range: conventional chip loading 160*1024, PWM
chip loading 320*1024
Specification Download:
