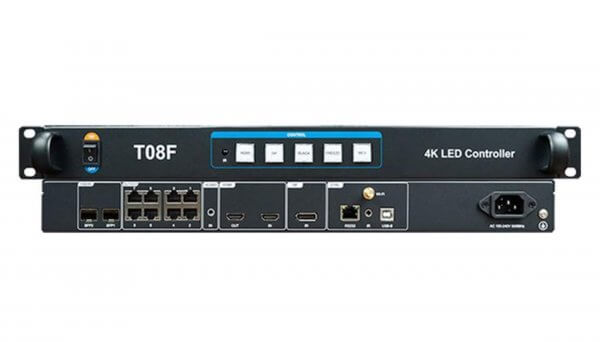

HD-T08F (T08F for short) is a transmitter with powerful video signal reception capabilities, supporting either DP1.4 or HDMI 2.0 source inputs. It supports a maximum of 5.2 million pixels, a maximum width or height of 8192 pixels, and a maximum of 4096×2160@60Hz 4K video signal input, which can greatly meet the configuration requirements of ultra-long, ultra-high and ultra-large screens on site. It supports 2 channel of 10Goptical ports, which can be connected to receiving equipment via fiber optic cable to achieve long-distance signal synchronization; Integrated 8 Gigabit network port output, can be used in hotels, shopping malls, conference rooms, exhibitions, studios and other occasions that need synchronous playback, while T08F is equipped with Wi-Fi function as standard, supporting wireless control of PC software.

Features

Input:
 Support 1channel of DP 1.4, 1 channel of HDMI 2.0signal input, two video signals can be switched arbitrarily;
 Support 1 TRS 3.5mm standard two-channel audio input, can be connected to a multi-function card to transmit audio.
Output:
 2 channel of 10Goptical ports copy output, each optical port can transmit data from 8 Gigabit network ports and support signal transmission over long distances;
 Standard configuration of 8 Gigabit Ethernet ports, directly cascaded to the receiving card;
 1 channel HDMI OUT, used for display screen program preview;
 The maximum loading capacity is 5.2 million pixels, the maximum horizontal support is 8192 pixels, and the maximum vertical support is 8192 pixels.
Function:
 Support 4096×2160@60Hz synchronous signal input, pixel-to-pixel display;
 Standard Wi-Fi, support PC software wireless control;
 Support key black and freeze function;
 Support multiple units seamless splicing;
 Support infrared remote control (optional).

Specification Download:
Huidu HD-T08F 4K Synchronous Sending Box Specification
