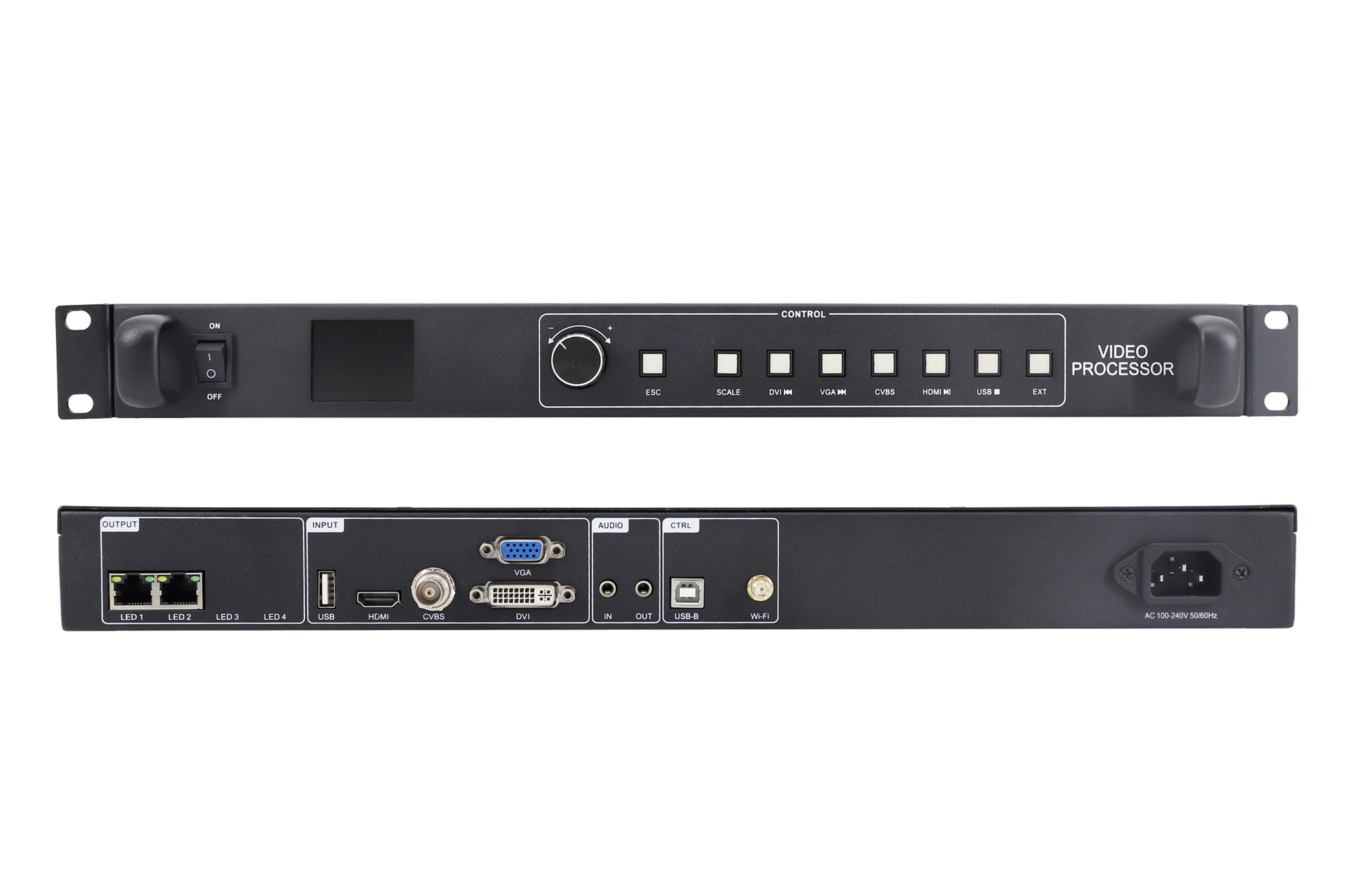

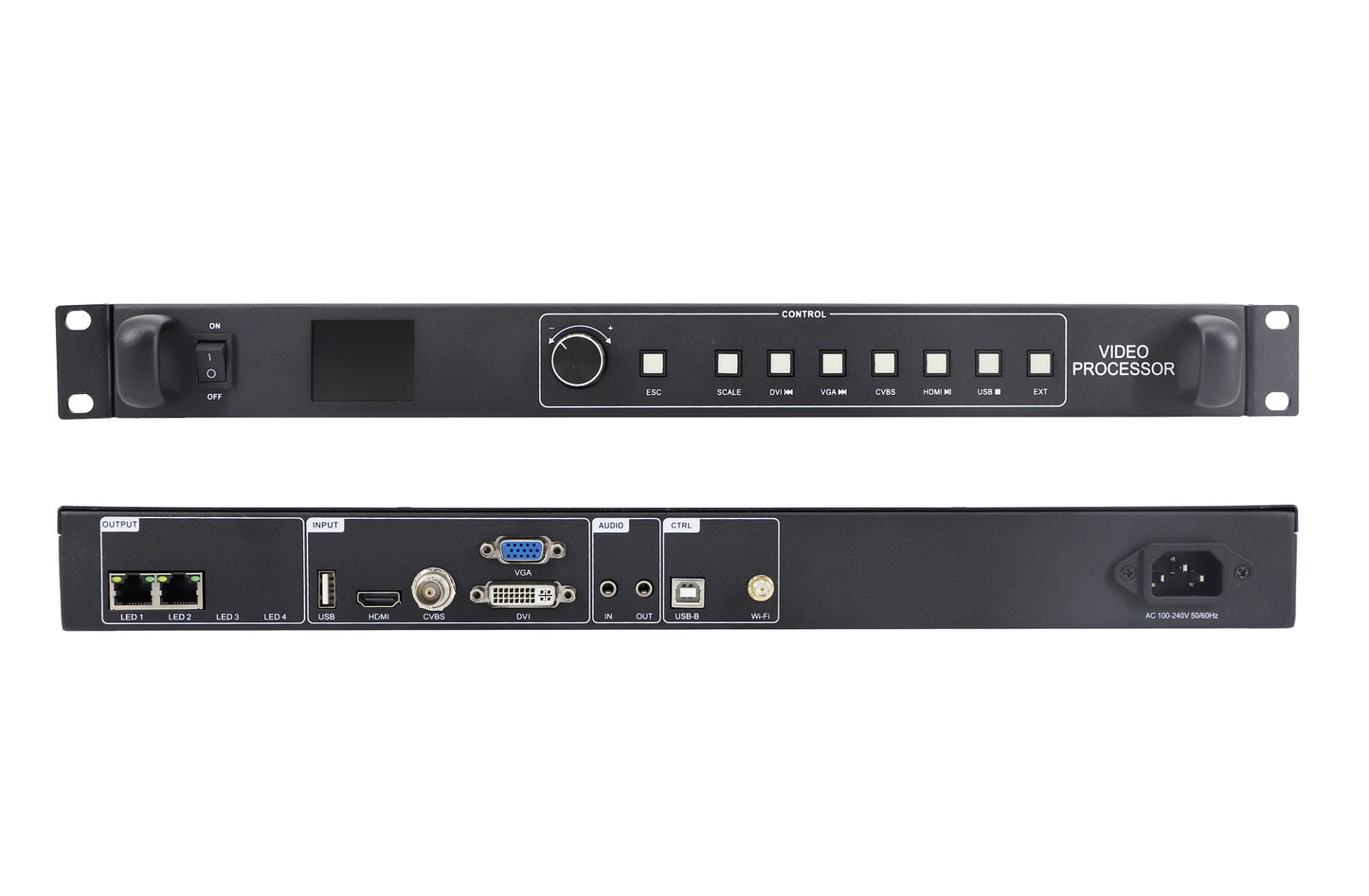

HD-VP210A is a three-in-one video processor that integrates a traditional video processor and 2-way Gigabit Ethernet output, which not only simplifies the on-site environment construction, but also improves the reliability of the product. It supports 4-way synchronous signal input and 1-way USB input, and can be used in hotels, shopping malls, conference rooms, exhibitions, studios, and other occasions that require synchronous playback; in addition, the device also supports point-to-point input/output, allowing the LED display to display clearer images.

HuiDu HD-VP210A 3-in-1 Synchronous Machine Features:

Input
1) Supports 1 HDMI, 1 DVI, 1 VGA, 1 CVBS signal input, switchable;
2) 1 USB input, supports direct playback of videos and pictures in various mainstream formats in the root directory of the USB flash drive, and supports up to 1080P high-definition video playback;
3) Supports 1 TRS 3.5mm standard dual-channel audio input and HDMI audio input.
Output
1) Standard 2-way Gigabit network port, directly cascade receiving card;
2) Maximum control of 1.3 million pixels, maximum horizontal support of 3840 pixels, maximum vertical support of 2500 pixels;
3) 1 TRS 3.5mm standard dual-channel audio output.
Function
1) Standard Wi-Fi, supports mobile phone APP wireless control;
2) Supports brightness adjustment;
3) Supports 8 scene presets and calls.

HuiDu HD-VP210A 3-in-1 Synchronous Machine Connection diagram:
