HD-VP410C is a super cost-effective 3-in-1 video processor, integrating traditional video processor and 4 Gigabit Ethernet ports The output not only simplifies the construction of the on-site environment, but also improves the reliability of the product.

HUIDU HD-VP410C 3 In 1 LED Screen video processor Features：

1. Control range: 2.6 million pixels, maximum horizontal support 3840 pixels, vertical maximum support 1920 pixels;
2. Signal switching: support arbitrary switching of 2 channels of HDMI synchronous signals and 1 channel of USB signals;
3. USB playback: support direct playback of videos and pictures in various mainstream formats under the root directory of the U disk, the maximum support 1080P
HD video playback;
4. Audio input/output: support 2 channels of HDMI audio input (choose one of the two to play), 1 channel of TRS 3.5mm standard dual sound
channel audio output;
5. Output network port: standard 4 Gigabit network ports, directly cascaded to the receiving card;
6. Brightness setting: support one-button adjustment of brightness without cumbersome operations;
7. Key lock: lock the key to prevent the abnormal display caused by misoperation;
8. Wireless control: support infrared remote control to switch programs, brightness settings and other functions.

Connection display diagram：


Specifications Download

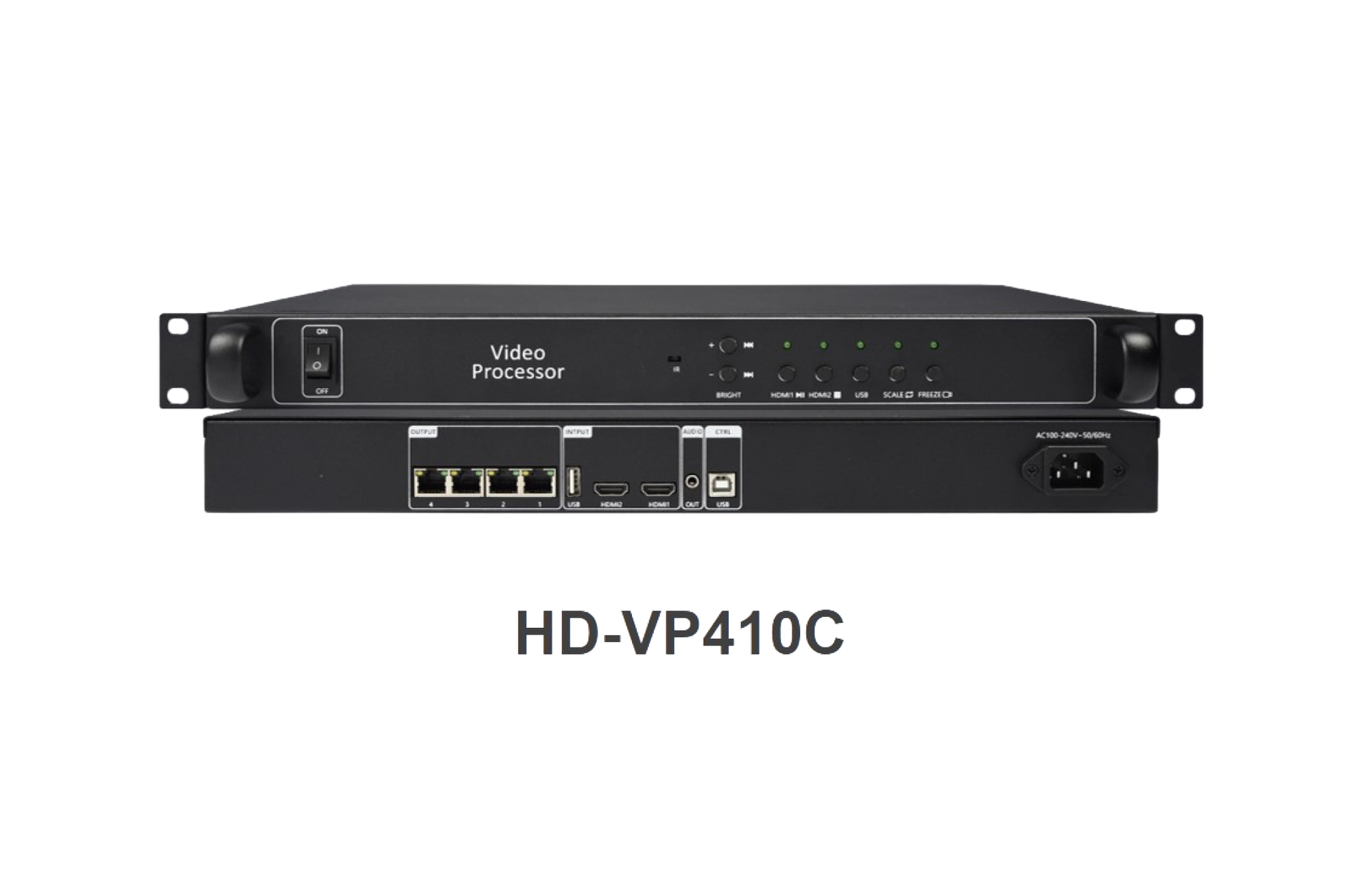

HUIDU HD-VP410C video processor
