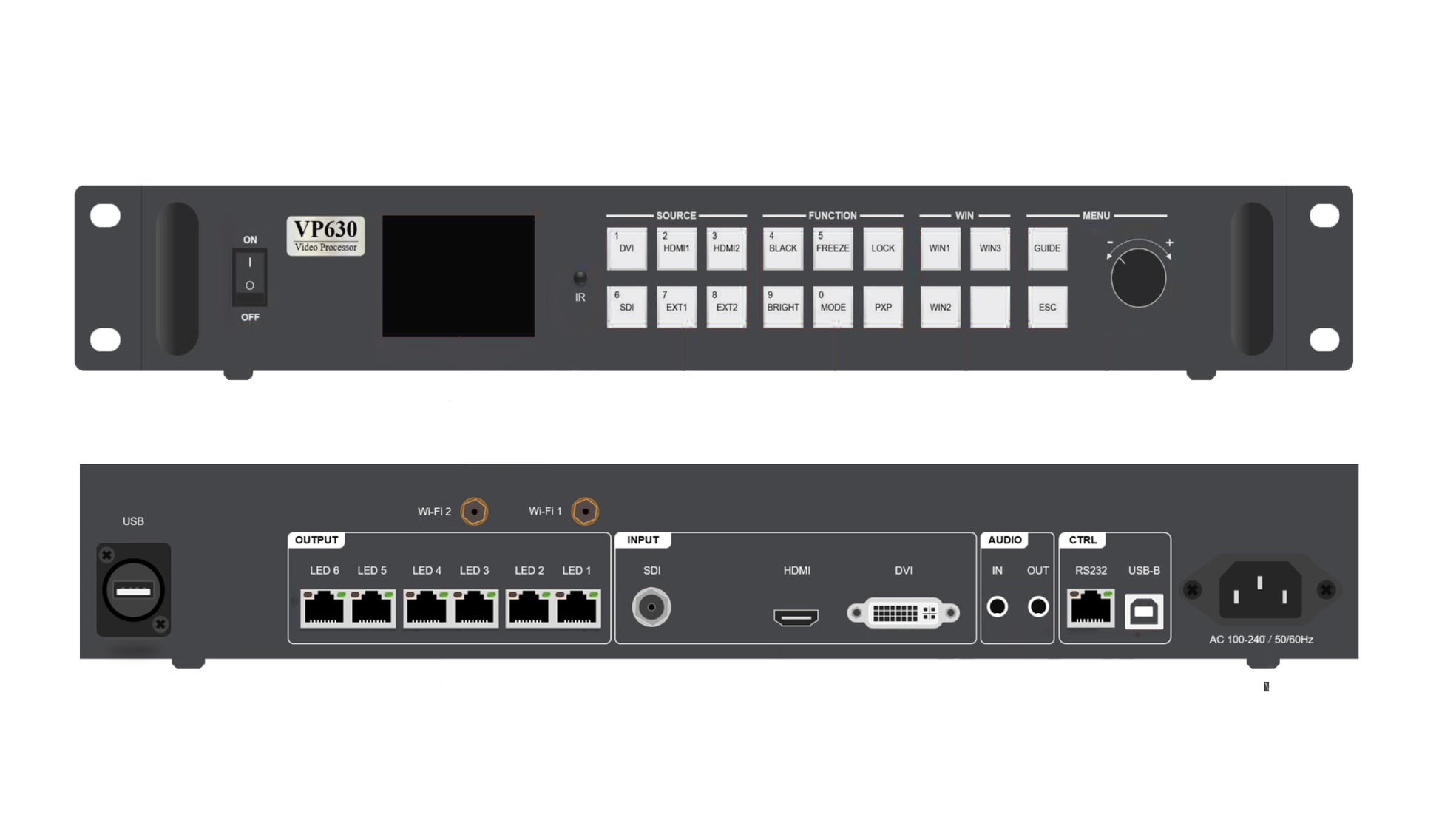

HD-VP630-TP is a new architecture LED display 2-in-1 video processor, integrated with 6 Gigabit Ethernet port outputs, supports three-screen arbitrary display; standard Wi-Fi function, supports mobile phone APP wireless control and computer wireless debugging, supports mobile phone/tablet wireless screen projection; has 1 HDMI, 1 SDI and 1 DVI signal input, multiple synchronous signals support seamless switching, can be used in hotels, shopping malls, conference rooms, exhibitions, studios and other occasions that require synchronous playback.

Features

Input
 Support 1 HDMI, 1 DVI, 1 SDI, multiple video signals seamless switching;
 Support 1 TRS 3.5mm standard two-channel audio input and HDMI audio input.
Output
 6 Gigabit Ethernet ports as standard, directly cascade receiving card;
 Maximum control of 3.9 million pixels, maximum horizontal support of 8192 pixels, maximum vertical support of 4096 pixels;
 1 TRS 3.5mm standard dual-channel audio output.
Features
 Wi-Fi as standard, support mobile phone APP wireless control;
 Infrared wireless remote control function as standard;
 Support RS232 centralized control (connect to central control device);
 Support instant storage technology, automatic parameter saving;
 Support brightness adjustment and key lock function;
 Support 8 scene presets and calls;
 Support three-screen display, support picture-in-picture (PIP) and picture-out-picture (POP) functions.

Specification Download:
Huidu HD-VP630-TP 2-in-1 video processor Specification(Chinese)
