Description

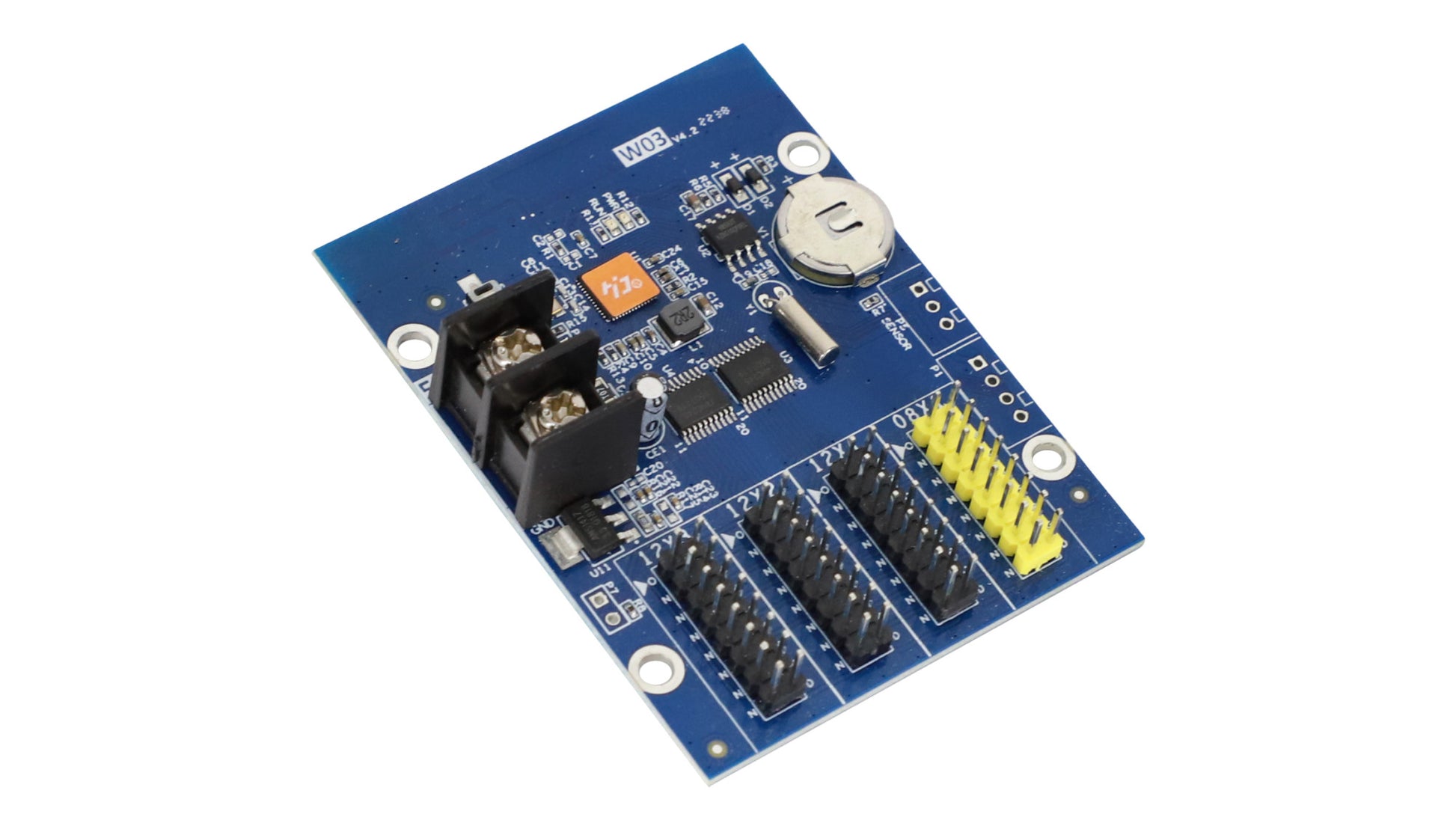

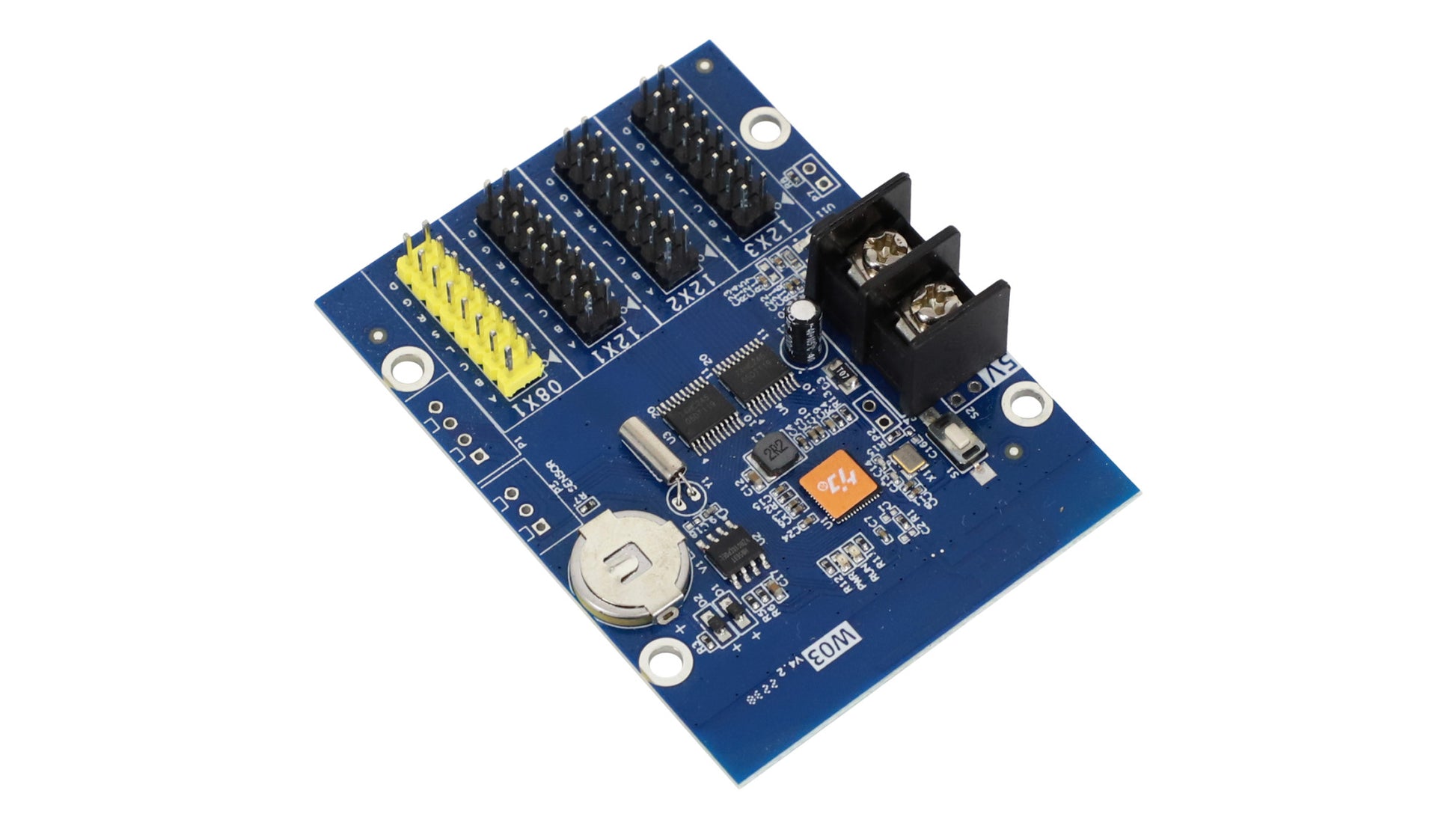

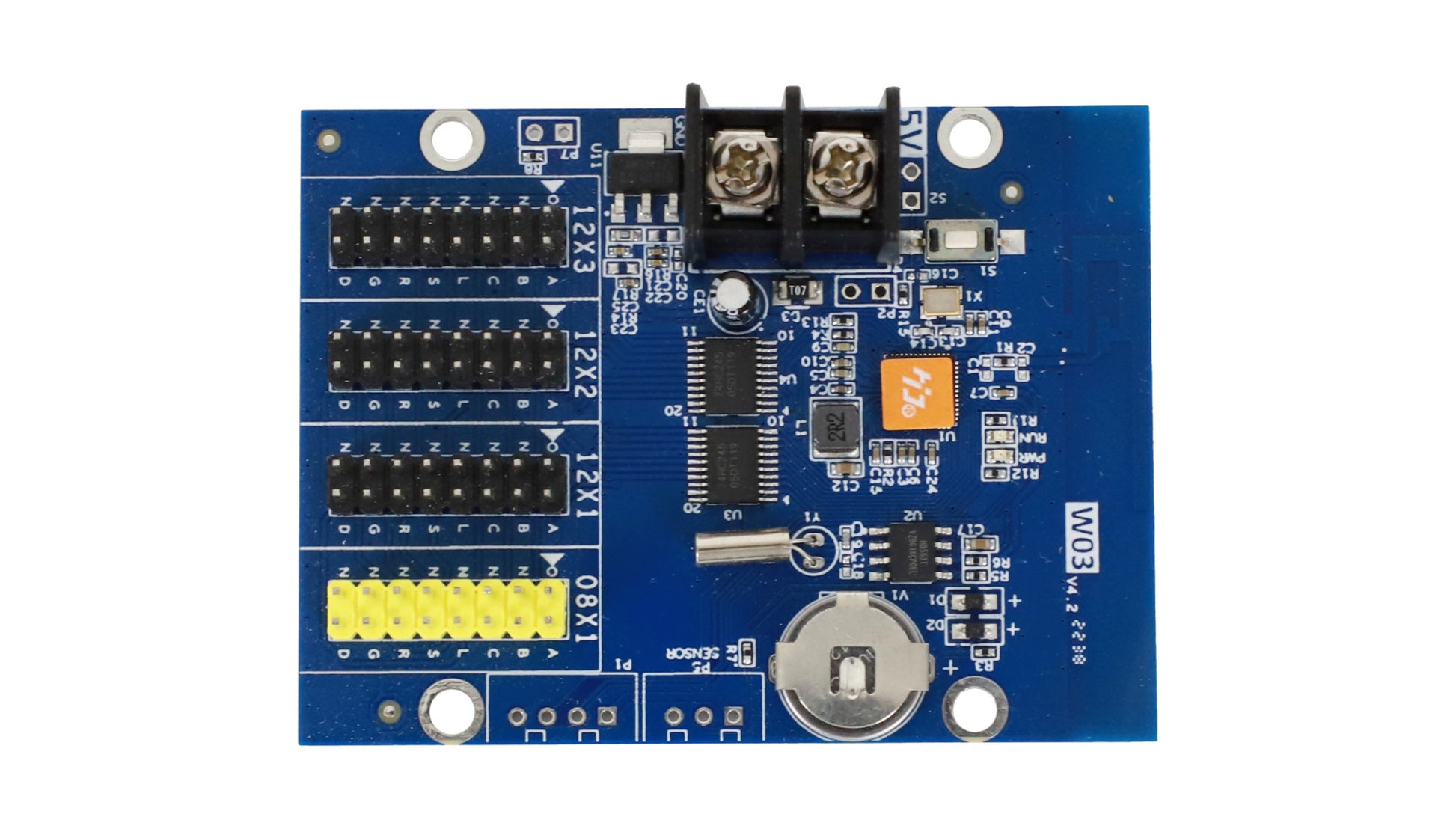

Huidu HD-W03 is a low-cost, cost-effective monochrome Wi-Fi control card, which can display text, clock, counting, timing and other content, suitable for door display screens, signboard display screens and other occasions. You can use computer software HD2018, HD2020 and screen control APP to debug.
Huidu HD-W03 Single and double color Wi-Fi control card Features：
1. Built-in antenna, save installation trouble;
2. Support program frame, region frame, support custom frame;
3. Support a variety of text effects to meet most application scenarios;
4. Support font hollow, stroke and other designs;
5. Support up to 20 content areas, free typesetting;
6. Support external temperature and humidity sensors;
Huidu HD-W03 Single and double color Wi-Fi control card function list：
| Control range | Monochrome: 512*48, 768*32, 1280*16 | ||||||
| FLASH capacity | 1M Byte | ||||||
| communication method | Wi-Fi | ||||||
| number of programs | 1000, support button switching, remote control switching | ||||||
| number of regions | 20, independent partitions, independent special effects, independent borders | ||||||
| Display content | Text, time, temperature (temperature and humidity), timing, counting, lunar calendar | ||||||
| Display method | sequential display | ||||||
| clock function |
1. Support perpetual calendar, analog clock, lunar calendar |
||||||
| extension device | Temperature, humidity, photosensitive sensor | ||||||
| Automatic switch screen | Support timing switch screen | ||||||
| Dimming | Support three brightness adjustment modes: manual adjustment, automatic adjustment, adjustment by time period | ||||||
| Working power | 3W |
Specification Download:
Huidu HD-W03 Single and double color Wi-Fi control card Specification
