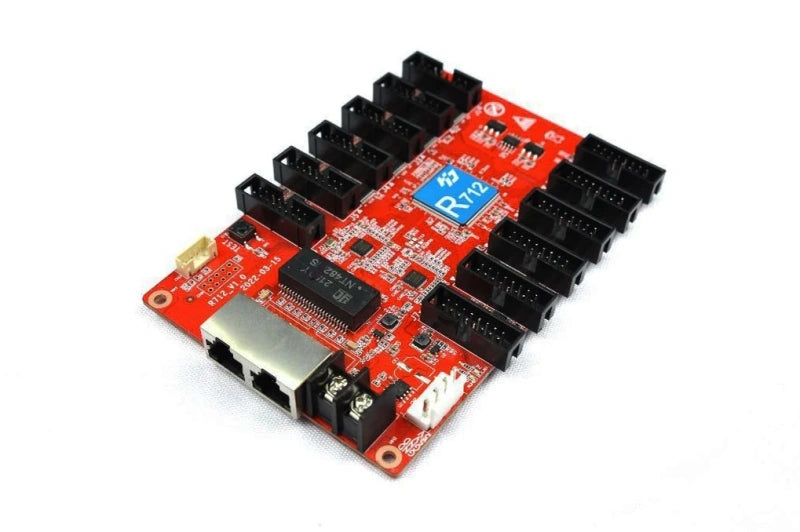

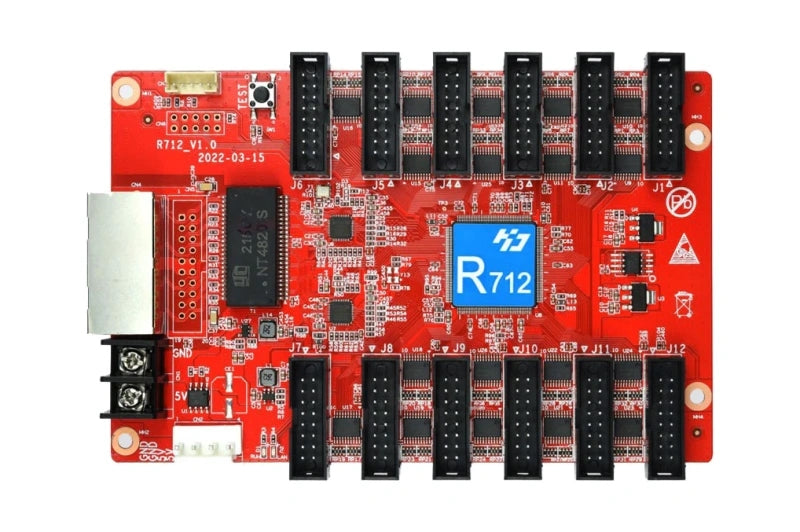

Huidu R Series HD-R712 LED Receiving Card
Huidu R Series HD-R712 LED Receiving Card
Huidu R712 is an LED display receiving card that supports both synchronous and asynchronous control system, no need HUB adapter board. It is equipped with 12*HUB75E interface onboard, with a good stability, the maximum loading capacity is 131,072 pixels.
1. Integrated with 12 lines HUB75E port
2. Ultra loading capacity, conventional chip recommended 128*768 pixels, PWM chip recommended 256*512 pixels
3. Support data group exchange and data group offset setting
4. Support any scan module within static~1/128 scan
5. Support multi-card cascade, arbitrary order
6. Support data group exchange and data group offset setting
| Fit for sender | Dual-mode Player box, Asynchronous controller, Synchronous sending card, 3 in 1 Video processor |
| Module type | Compatible with all common IC module, supported most PWM IC module. |
| Scan mode | Supports any scanning method from static to 1/64 scan |
| Communication method | Gigabit Ethernet |
| Control range | Recommend：98,304 pixels (128*768) Recommend width pixel ≤128 |
| Multi-card connection | Receiving card can be put in any sequence |
| Gray scale | 256~65536 |
| Smart setting | A few simple steps to complete the smart settings, through the screen layout can be set to go with any alignment of the screen unit board |
| Test functions | Receiving card integrated screen test function, Test display brightness uniformity and display module flatness. |
| Communication distance | Super Cat5,Cat6 network cable within 80 meters |
| Port | 5V DC Power*2,1Gbps Ethernet port*2, HUB320*8 |
| Input voltage | 4.2V-5.5V |
| Power | 5W |
HUB75E Port Receiving Card HD-R712 Dimensions:
Specification Download:
HUIDU HD-R712 LED Display Full Color Receiving Card Specification
