Description
- Flexible led display is suitable for shopping malls, bars, stage backgrounds, exhibition halls, planning exhibition halls, etc.

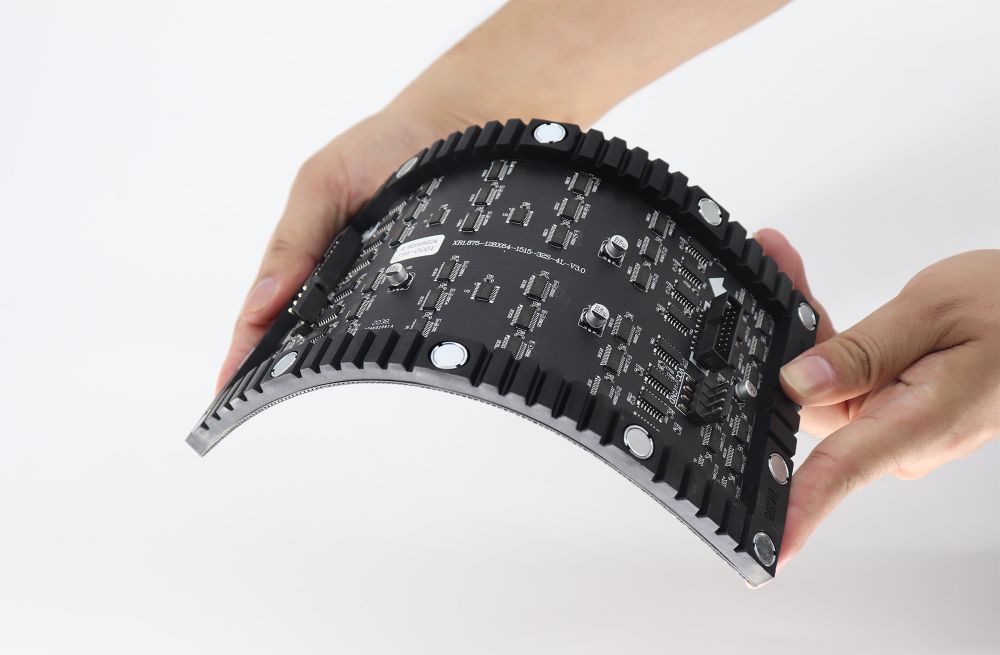

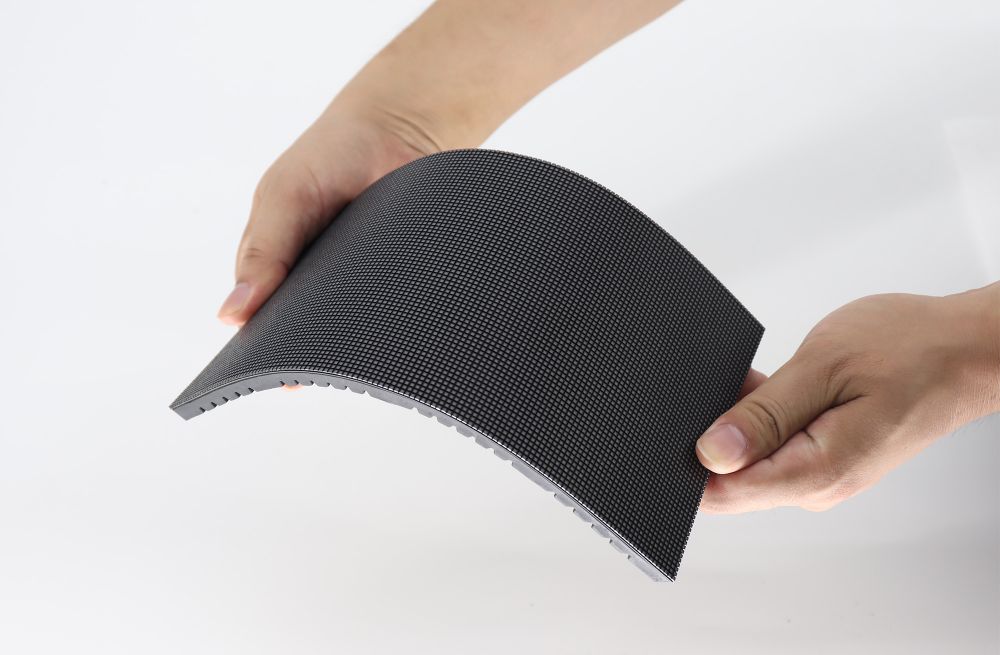

- Soft, thin and light, suitable for any bending effect Flexible,lightweight, easy to install and maintain

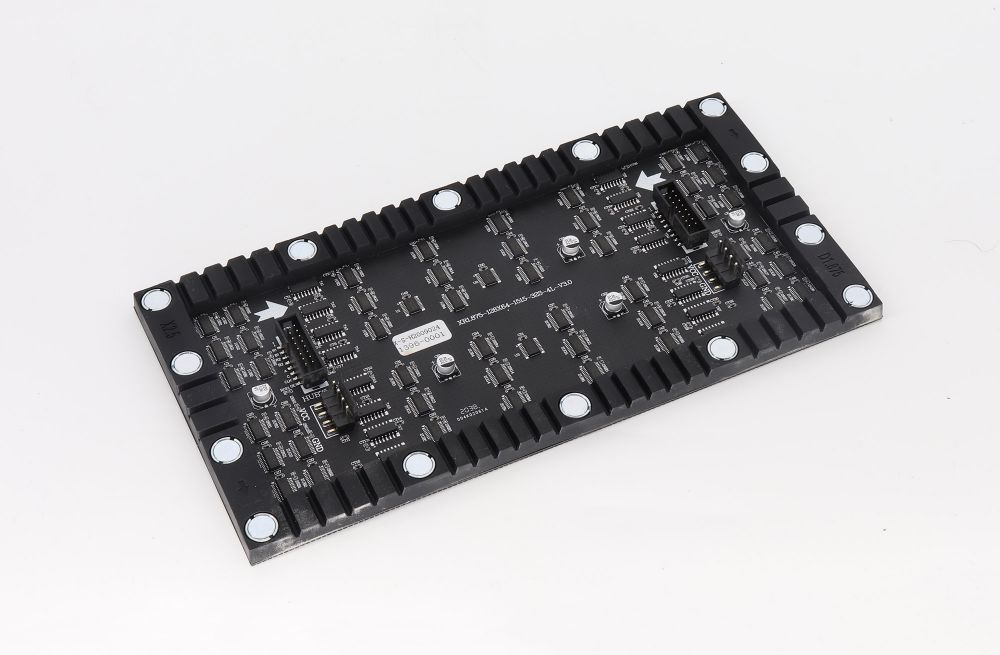

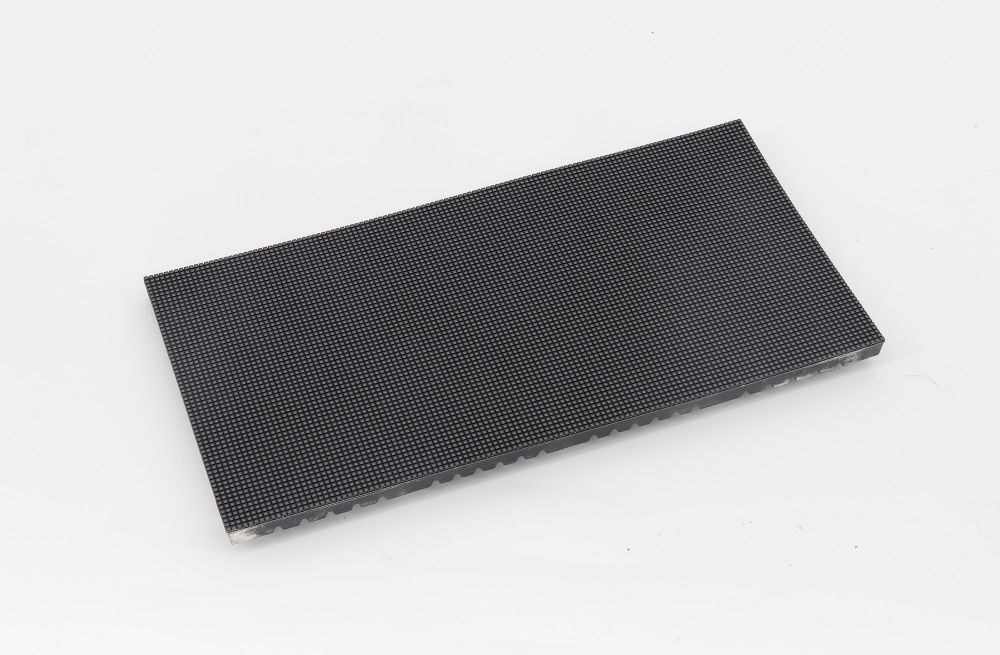

P1.579 Soft Flexible LED Display Module 240×120mm Flexible LED Panel Main Specifications:
| Module Specifications | ||
| 1 | Pixel Pitch | 1.579mm |
| 2 | Pixel Configuration | SMD1010 |
| 3 | Module Resolution | 152x76pixels |
| 4 | Module Pixles | 360000 pixels/module |
| 5 | Module Size | 240x120mm |
| Specifications | ||
| 1 | Screen Brightness | ≥800cd/m2 |
| 2 | Driving Method | 1/38 scan |
| 3 | Min Viewing Distance1 | 1.5m |
| 4 | Max. Power Consumption | 600W/m2 |
| 5 | Average Power Consumption | 200W/m2 |
| 6 | Gray Level | 14bits input, 4096 levels(212) |
| 7 | Display Color | 16M |
| 8 | Frame Frequency | ≥60Hz |
| 9 | Refresh Frequency | ≥1920Hz |
| 10 | Uninterrupted Working Hours | ≥72 hours |
| 11 | Screen Life-span | ≥100,000 hours |
| 12 | MTBF | ≥5,000 hours |
| 13 | Discrete Blind Spot Rate | <1/10000 |
| 14 | Continuous Blind Spot Rate | None |
| 15 | Blind Spot Rate | <1/10000 |
| 16 | Screen Plainness | <±1mm |
| 17 | Power Supply Mode | AC220±10% 50Hz/AC110±10% 60Hz |
| 18 | Environment Temperature & Humidity | Temperature:-20 Celsius~+60 Celsius Humidity:10%~90% RH |
| 19 | Control Mode | Synchronous display with control PC by DVI |
| 20 | Control System | DVI video card + full color control card + fiber system( optional) |
| 21 | Display Content | Video, DVD, VCD, TV, picture, cartoon, graphics, texts.etc. |
| 22 | Interface | Standard Ethernet |
| 23 | Transmission Distance | Multi mode fiber <500m, single mode fiber <30km,internet cable <100m |
Indoor Flexible Soft LED Display Module Specification:
| Pixel Pitch | LED Type | Density（dot/㎡） | Module Pixel | Module Size（mm） | Driving Mode | Brightness(Nits) |
| 240*120mm Series soft flexible led display module | ||||||
| 1.25mm | SMD1010 | 640000 | 192*96 | 240*120mm | 1/64Scan | 700-900 |
| 1.5625mm | SMD1212 | 409600 | 128*96 | 200*150mm | 1/48Scan | 700-900 |
| 1.579mm | SMD1212 | 409600 | 152*76 | 240*120mm | 1/38Scan | 700-900 |
| 1.667mm | SMD1212 | 360000 | 144*72 | 240*120mm | 1/36Scan | 700-900 |
| 1.875mm | SMD1212 | 284444 | 128*64 | 240*120mm | 1/32Scan | 700-900 |
| 1.875mm | SMD1515 | 284444 | 128*64 | 240*120mm | 1/32Scan | 700-900 |
| 2mm | SMD1515 | 250000 | 120*60 | 240*120mm | 1/30Scan | 700-900 |
| 2.5mm | SMD1515 | 160000 | 96*48 | 240*120mm | 1/24Scan | 700-900 |
| 3mm | SMD2121 | 111111 | 80*40 | 240*120mm | 1/20Scan | 700-900 |
| 4mm | SMD2121 | 62500 | 60*30 | 240*120mm | 1/15Scan | 700-900 |
| 320*160mm Series flexible soft led display module | ||||||
| 1.86mm | SMD1212 | 288906 | 172*86 | 320*160mm | 1/43Scan | 700-900 |
| 2mm | SMD1515 | 250000 | 160*80 | 320*160mm | 1/40Scan | 700-900 |
| 2.5mm | SMD1515 | 160000 | 128*64 | 320*160mm | 1/32Scan | 700-900 |
| 3.076mm | SMD1515 | 105625 | 104*52 | 320*160mm | 1/26Scan | 700-900 |
| 5mm | SMD2121 | 40000 | 64*32 | 320*160mm | 1/16Scan | 700-900 |
| 256*128mm Series flexible soft led display panel | ||||||
| 2mm | SMD1515 | 250000 | 128*64 | 256*128mm | 1/32Scan | 700-900 |
| 4mm | SMD2121 | 62500 | 64*32 | 256*128mm | 1/16Scan | 700-900 |
