Description
The Indoor P2 HD LED Screen Module offers a refined visual experience with a 2mm pixel pitch and high-density SMD1515 configuration, delivering 250,000 real pixels per square meter. Its compact size of 256mm by 128mm and a resolution of 128x64 pixels ensure precise and vibrant image quality. Designed with a constant current 1/32 duty driving mode, this module guarantees stable performance and consistent brightness, ideal for detailed indoor displays requiring sharp and clear visuals.

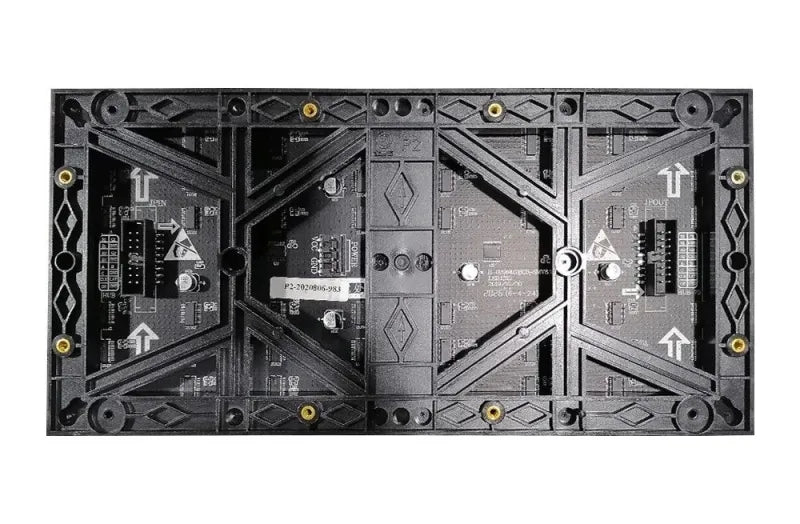

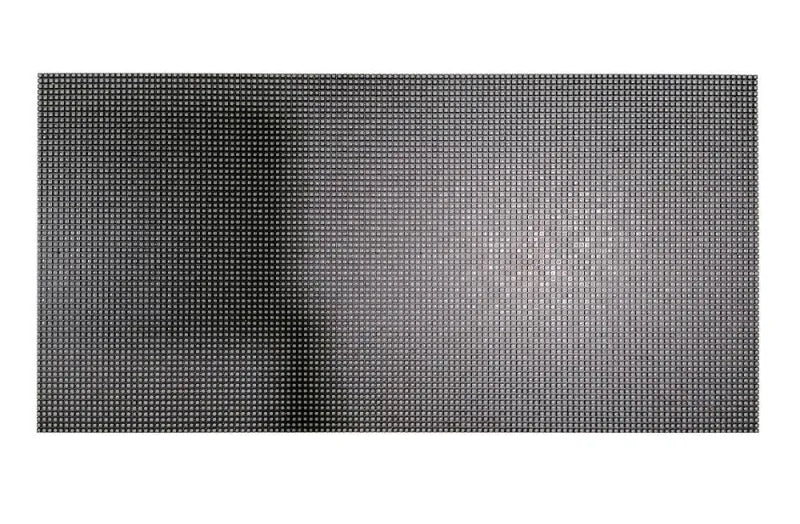

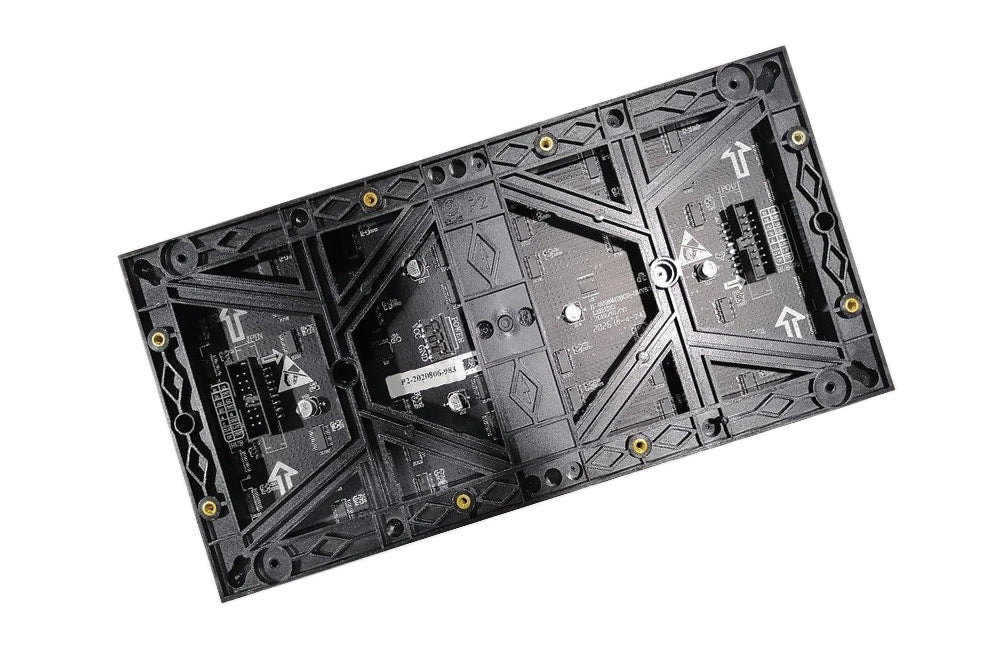

Indoor P2 HD LED Screen Module 256X128mm
|
LED Lamp Specification |
||||||
|
Color |
Package |
Intensity |
Viewing Angle |
Wavelength |
Testing Conditions |
|
|
Red |
SMD1515 |
45-65mcd |
140 °/140° |
620-625nm |
25℃, 10mA |
|
|
Green |
SMD1515 |
120-200mcd |
140 °/140° |
516-530nm |
25℃, 5mA |
|
|
Blue |
SMD1515 |
20-40mcd |
140 °/140° |
465-475nm |
25℃,5 mA |
|
|
Module Parameter |
||||||
|
Pixel Pitch |
2mm |
|||||
|
Pixel Configuration |
SMD1515 |
|||||
|
Density |
250,000 pixels/㎡(real pixel) |
|||||
|
Module Resolution |
128pixel(L) * 64pixel(H) |
|||||
|
Module Dimension |
256mm(L) * 128mm(H) * 18mm(D) |
|||||
|
Driving Mode |
Constant current, 1/32 duty |
|||||
|
Electricity Parameter |
||||||
|
Optical Ratings |
||||||
|
Brightness |
≥1,200 cd/㎡ |
|||||
|
Viewing Angle |
140°(Horizontal); 120°(Vertical) |
|||||
|
Best Viewing Distance |
≥2m |
|||||
|
Gray Grade |
14 bits |
|||||
|
Display Color |
4.4 trillion colors |
|||||
|
Brightness Adjustment |
100 grades by software or automatically by sensor |
|||||
|
Max. Power Consumption |
40W |
|||||
|
control system |
||||||
|
Frame Frequency |
≥60Hz |
|||||
|
Refresh Frequency |
≥1920Hz |
|||||
|
Input Signal |
Composite Video, S-video, DVI, HDMI, SDI, HD-SDI |
|||||
|
Control Distance |
100m(Ethernet cable); 20KM(optical fiber cable) |
|||||
|
Support VGA Mode |
800*600, 1024*768, 1280*1024, 1600*1200 |
|||||
|
Color Temperature |
5000—9300 adjustable |
|||||
|
Brightness Correction |
Pixel by pixel, module by module, cabinet by cabinet |
|||||
|
Reliability |
||||||
|
Working Temperature |
-20～+60 ºC |
|||||
|
Storage Temperature |
-30～+70 ºC |
|||||
|
Working Humidity |
10%～90% RH |
|||||
|
Lifetime |
100,000 hours |
|||||
|
MTBF |
5000 hours |
|||||
|
Continuous Operating Time |
≥72 hours |
|||||
|
Protection Grade |
IP31 |
|||||
|
Out-of-Control Pixel Rate |
≤0.01% |
|||||
