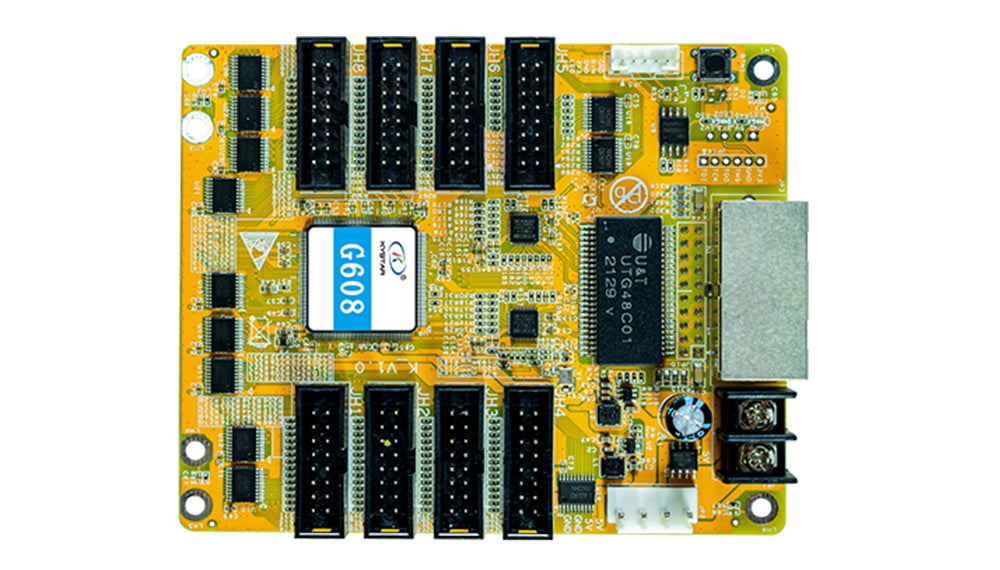

The G608 receiving card of the Kystar Gold Card series is an important part of the main control system of the LED large screen, which receives the data from the transmitting card and decodes it Converted into a module control signal, it is used with the transmission card to form the
main control system of the LED large screen. Adopt the industry’s top design technology, in line with international and industry standards.
The gold card receives the G608 unique color transformation technology, which makes the face complexion more realistic; the unique arbitrary frequency multiplication technology, the mobile phone shoots without scanning lines.

Function

 A single card has 8 standard interfaces, outputs 16 sets of RGB data, and has a maximum load of 98K pixels
 Support high gray high brush, low light high gray display
 The detail handling is more perfect, which can eliminate the detail problems such as dark, low gray and red, ghosting and so on
 Supports point-by-point correction of brightness and chromaticity, provides correction of low gray compensation, and ensures the low gray display effect
 Support a variety of PWM chips, point-by-point detection chips and general purpose chips
 Supports one-click readback of all Configuration information
 Support one-click repair function, card replacement worry-free
 Supports real-time detection of network communication status and detection of network cable connection sequence
 Support any pumping point, easy to achieve a variety of special-shaped screens
 Program upgrades, power outage worry-free
 Unique color transformation technology makes the face complexion more realistic
 Unique arbitrary frequency doubling technology, the phone shoots without scanning lines.

Specification Download:
Kystar G608 LED Display Screen Receiver Card Specification
