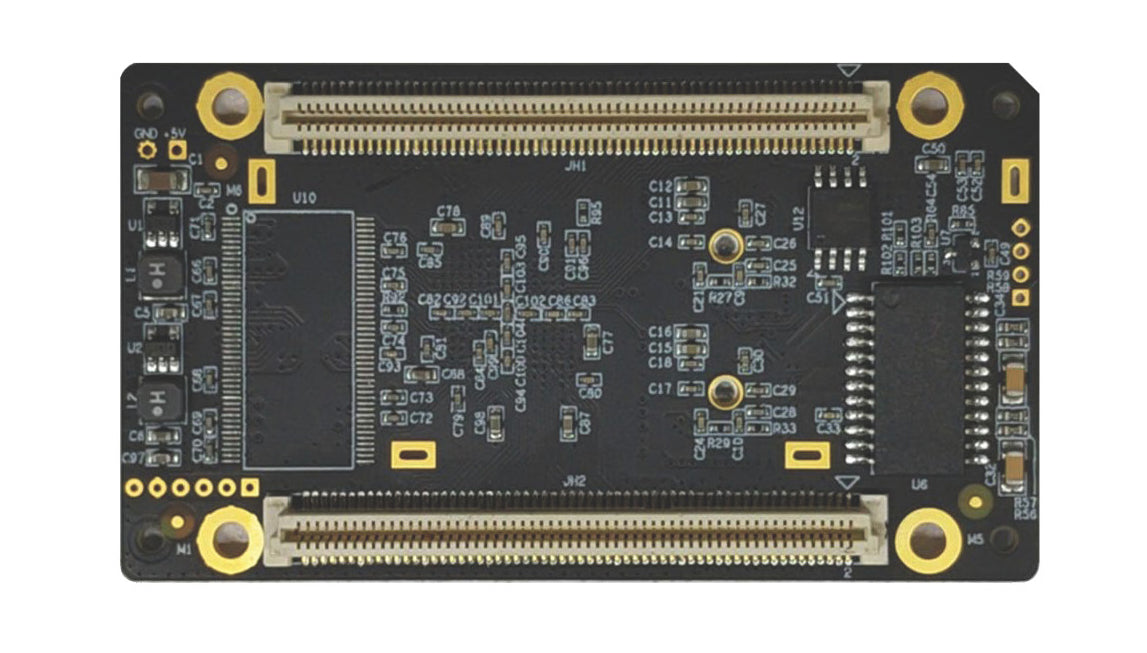

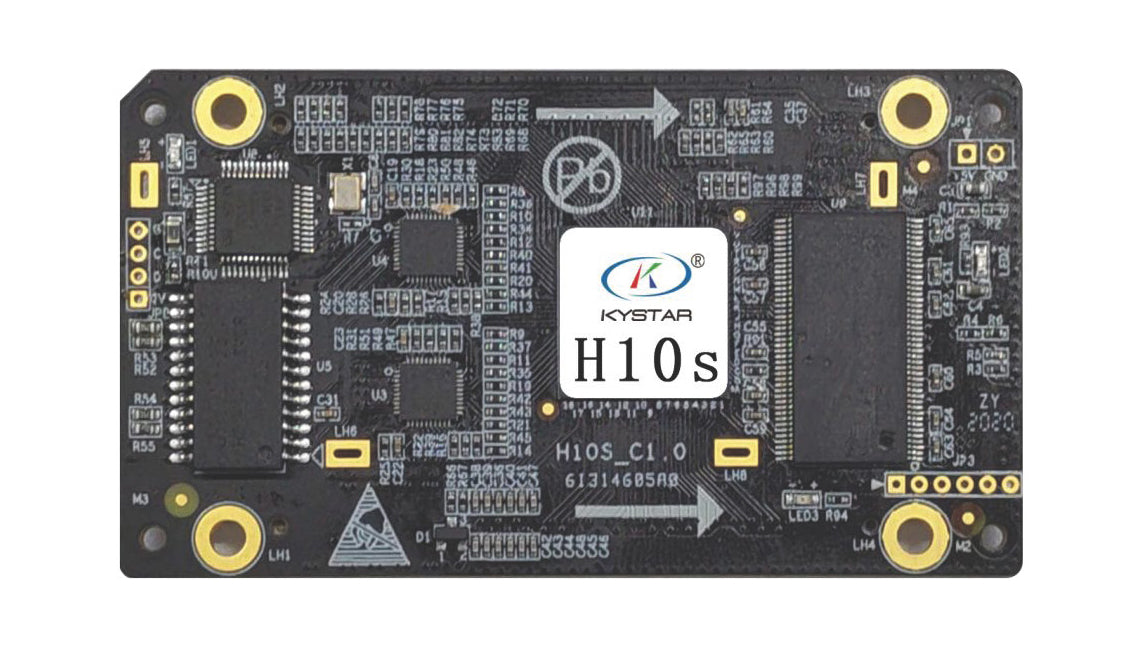

H10s receiver card is a small size full-featured high-end receiving card, appliedto the LED display as a display data receiving device, used to convert thereceived data into a signal that the driver chip can recognize, and spliced intoanimage for display on a large screen.

Features

 Supports 32 groups of parallel data.

 Single card with 512 *512 pixels.

 It adopts high-density connector interface, and the connection is stable andreliable.

 Integrated network transformer for improved electromagnetic compatibility.

 Unique arbitrary frequency doubling technology, the phone shoots without scanning lines.

 Unique color reproduction technology makes the face complexion more realistic.

 Supports a wide range of general-purpose chips, dual-latch chips and PWMchips.

 Support HDR10 high dynamic range display.

 Support low-light high-gray display.

 Supports point-by-point brightness correction function.

 Support dual SIM backup.  Support dual power backup detection function.

 Support external LCD module.  Supports flash management of lightboards.

 Supports its own temperature and voltage monitoring functions.

 Support one-click read back profile information function.

 Support one-click repair function, card replacement worry-free.

 Supports real-time detection of network communication status.

 Support display rotation function at any angle.

Support any extraction point, easy to set up a variety of special-shaped screens.

 Complies with EU RoHS standards.

 Passed CE, FCC certification.

Specification Download:
Kystar H10S LED Display Screen Receiver Card Specification
