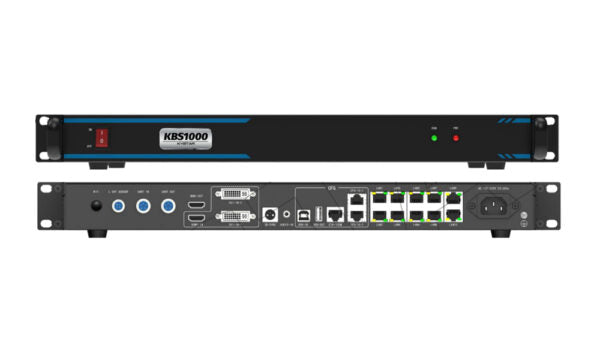

The KBS1000 is a high-performance transmitter with powerful load capacity and rich features. A single device supports one HDMI 2.0 and two DVI inputs, supporting a maximum resolution of 4096×2160@60Hz. It also supports 10 Ethernet outputs, supporting a maximum pixel load of 6.5 million.
The device uses a square USB/Gigabit Ethernet port for communication with a PC, and a Gigabit Ethernet port for cascading control. It supports passive correction, spherical shape change, 3D display, and Ethernet port redundancy. It is primarily used in rental and fixed-installation applications, such as concerts, stadium events, conference rooms, and exhibitions.

Features

 Supports one HDMI 2.0 and two DVI inputs
 Supports HDMI loop-through cascading
 Supports 10-channel Gigabit Ethernet ports
 Supports EDID management
 Supports passive brightness and color correction
 Fast delivery of correction data
 Spherical shape change
 Supports multiple control methods
 Supports cascade control
 Supports 3D display
 Supports brightness and color temperature adjustment

Specification Download:
Kystar KBS1000 LED Display Control System Sending Box Specification(Chinese)
