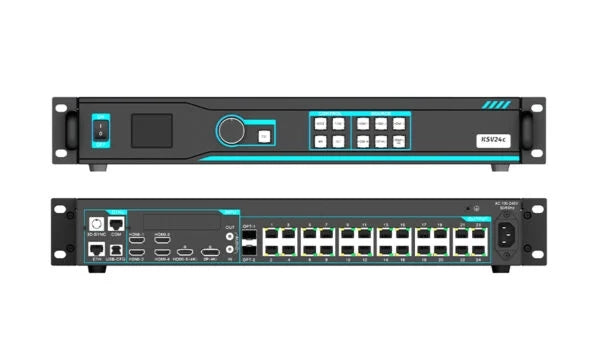

Kystar KSV24c two-in-one controller, specifically designed for LED display solutions, has 24 network port outputs, and a maximum load capacity of 15.6 million pixels. It adopts a pure hardware FPGA architecture and can operate continuously 365×24 hours a day, meeting the configuration requirements of large-screen control systems for small-pitch applications.

Features

 Each unit has 24 network ports, each capable of 650,000 pixels, for a total maximum of 15.6 million pixels, with a maximum width of 24,540 pixels and a maximum height of 15,360 pixels.
 Supports multiple digital signal interfaces, including Four HDMI 1.3, one AUDIO, one HDMI 2.0, and one DP 1.2 input sources.
 Supports eight-screen display with arbitrary layout.
 Supports arbitrary cable routing, ensuring network port load is not restricted by rectangular dimensions, improving network port utilization.
 Supports native output of test images such as solid color, gradients, and scan lines, facilitating on-site debugging and testing.
 EDID configuration management: Supports reading, modifying, and customizing EDID (Extended Display Identification Data).
 Supports one-click black/freeze functions.
 Black border removal/cropping: Resolves black border issues caused by front-end signals and allows you to crop any signal source (while maintaining a full screen).
 Key lock prevents accidental operation.
 Quickly and in real time adjust the brightness and contrast of the overall output image.
