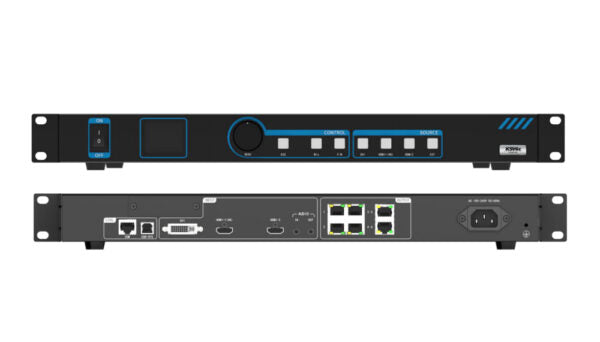

Kystar KSV6c two-in-one controller supports three-way digital signal input, has six network port outputs, and can load up to 3.9 million pixels. It adopts a pure hardware FPGA architecture and can run continuously 24 hours a day, 365 days a week, meeting the configuration requirements of large-screen control systems for small-pitch applications.

Features

 The single unit has six network ports, each capable of 650,000 pixels, and the total maximum capacity is 3.9 million pixels, with a maximum width of 8180 pixels and a height of 4090 pixels.
 Supports multiple digital signal interfaces, including one HDMI 1.3, one DVI-D, and one HDMI 1.4 input source.
 Supports three-screen display with arbitrary layout.
 Supports arbitrary cable routing, and the network port load is not restricted by rectangular shape, improving network port utilization.
 Supports output of test images such as solid color, gradient, and scan line, facilitating on-site debugging and testing.
 EDID configuration management: Supports reading, modifying, and customizing EDID (Extended Display Identification Data).
 Supports one-click black screen/freeze function.
 Border removal/cropping: Resolves the problem of black borders generated by front-end signals and allows arbitrary cropping of any signal source (while maintaining full screen).
 Supports key lock to prevent accidental operation. The brightness and contrast of the overall output image can be adjusted quickly and in real time.

Specification Download:
Kystar KSV6C 2-in-1 LED Display Video Controller Specification(Chinese)
