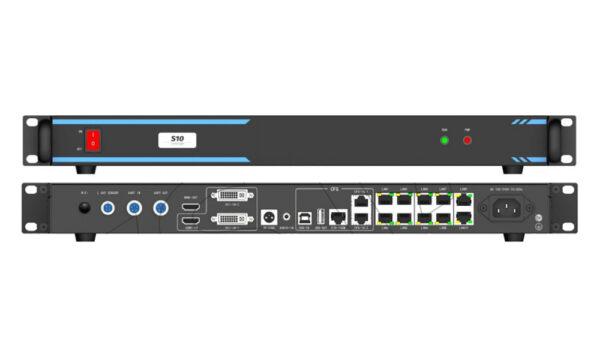

The S10 is a high-performance transmitter with powerful load capacity and rich features. A single device supports one HDMI 2.0 and two DVI inputs, supporting a maximum resolution of 4096×2160@60Hz. It also supports 10 Ethernet outputs, supporting a maximum pixel density of 6.5 million.
The device uses a square USB/Gigabit Ethernet port for communication with a PC, and a Gigabit Ethernet port for cascading control. It supports passive calibration, 3D display, and Ethernet port redundancy. It is primarily used in rental and fixed-installation applications, such as concerts, stadiums, conference rooms, and exhibitions.

Features

Supports one HDMI 2.0 and two DVI inputs
Supports HDMI loop-through cascading
Supports 10 Gigabit Ethernet ports
Supports EDID management
Supports passive brightness and color correction
Supports fast data transmission
Supports multiple control methods
Supports cascade control
Supports 3D display
Supports brightness and color temperature adjustment

Specification Download:
Kystar S10 LED Display Control System Sending Box Specification
