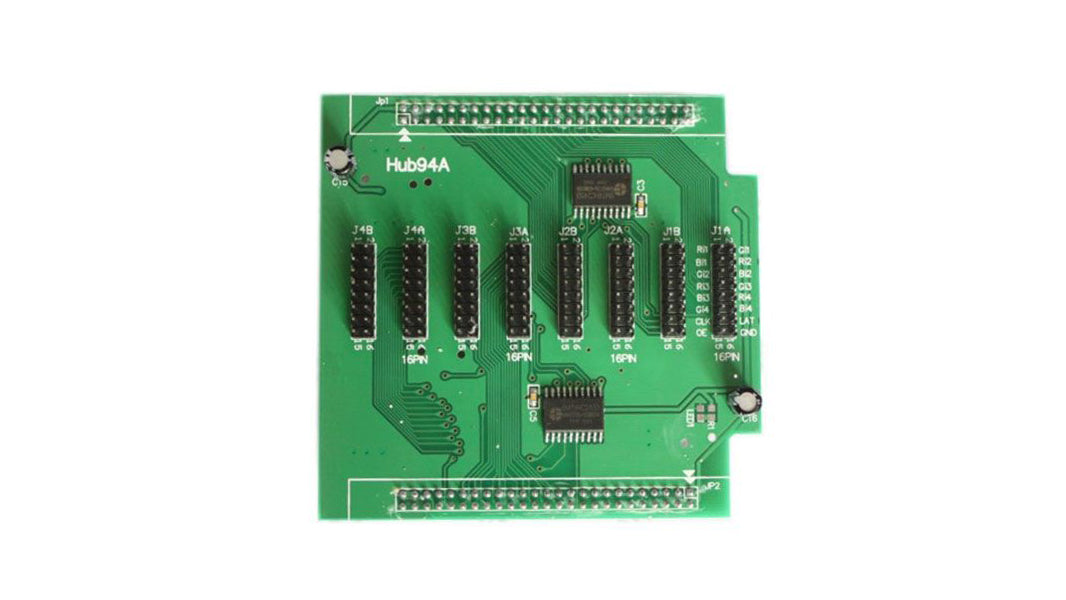

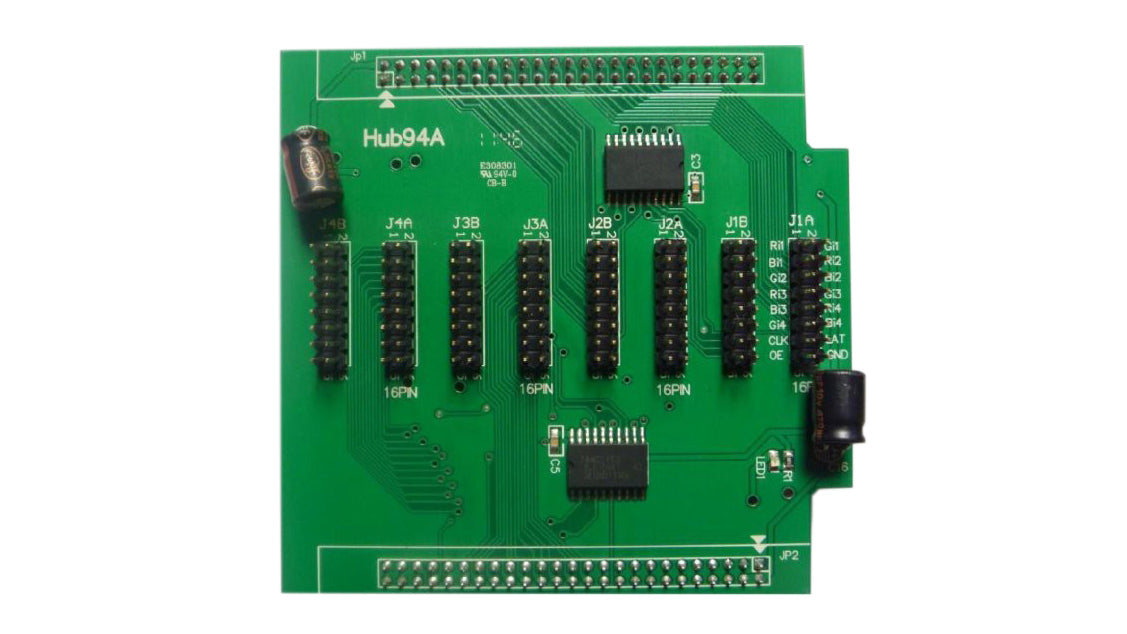

Linsn Hub94A LED Control Card

Linsn Hub94A LED Control Card

  1. Allocate the right signals of receiving card to LED module.

     Specification:

    • Socketed in RV801.
    • HUB Model is chosen according to the pin-out of LED Module.
    • To allocate the right signals to LED Module pins.
    • Use flat cable (IDE).
    • If the HUB pin-outs is not exactly the same as the LED module pin-ins,jumper wire can be applied.



HUB94A
N.O Des.   N.O Des.
1 DR1 2 DG1
3 DB1 4 DR2
5 DG2 6 DB2
7 DR3 8 DG3
9 DB3 10 DR4
11 DG4 12 DB4
13 CLK 14 LAT
15 OE 16 GND
