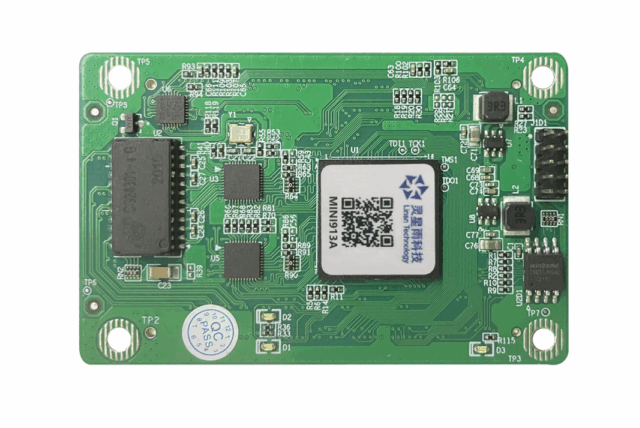

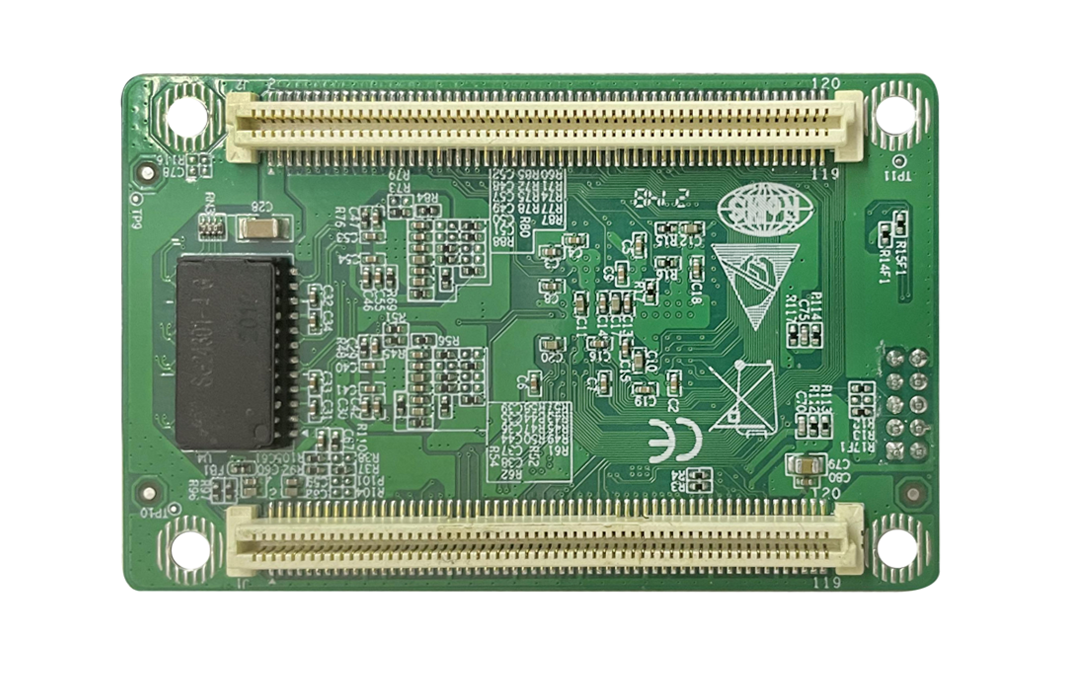

Mini913A is a high-end and full-featured ultra-small size mini-receiver card.Compared with traditional receiver card, Mini913A uses high-density BTB connector. It is more flexible and it adapts to a variety of electronic circuit structure, achieving a card suitable for all applications, which will considerably reduce the types of purchasing receiver card. The system, specific circuits and program design of Mini913A, can effectively reduce the electromagnetic radiation and effectively help product seasily pass through the EMC test. Specific features are as follows:

Functions and features

1. Single card can support 32- group RGB data output mode;
2. Supports 64-group serial data output mode;
3. Realize high refresh and high gray level effect
4. Supports general driver IC and PWM IC;
5. Maximum supports 512X512 pixels;
6. Use 18-bit signal processor, maximum supporting 18-bit (260,000) gray (each of red, green and blue);
7. Supports single-card color space conversion;
8. Supports configuration file read back;
9. Supports network cable BER test;
10.Supports hot backup with dual receiver cards, dual power supplier, etc

Specification Download:
Linsn Mini913A LED Display Screen Receiver Card Specification
