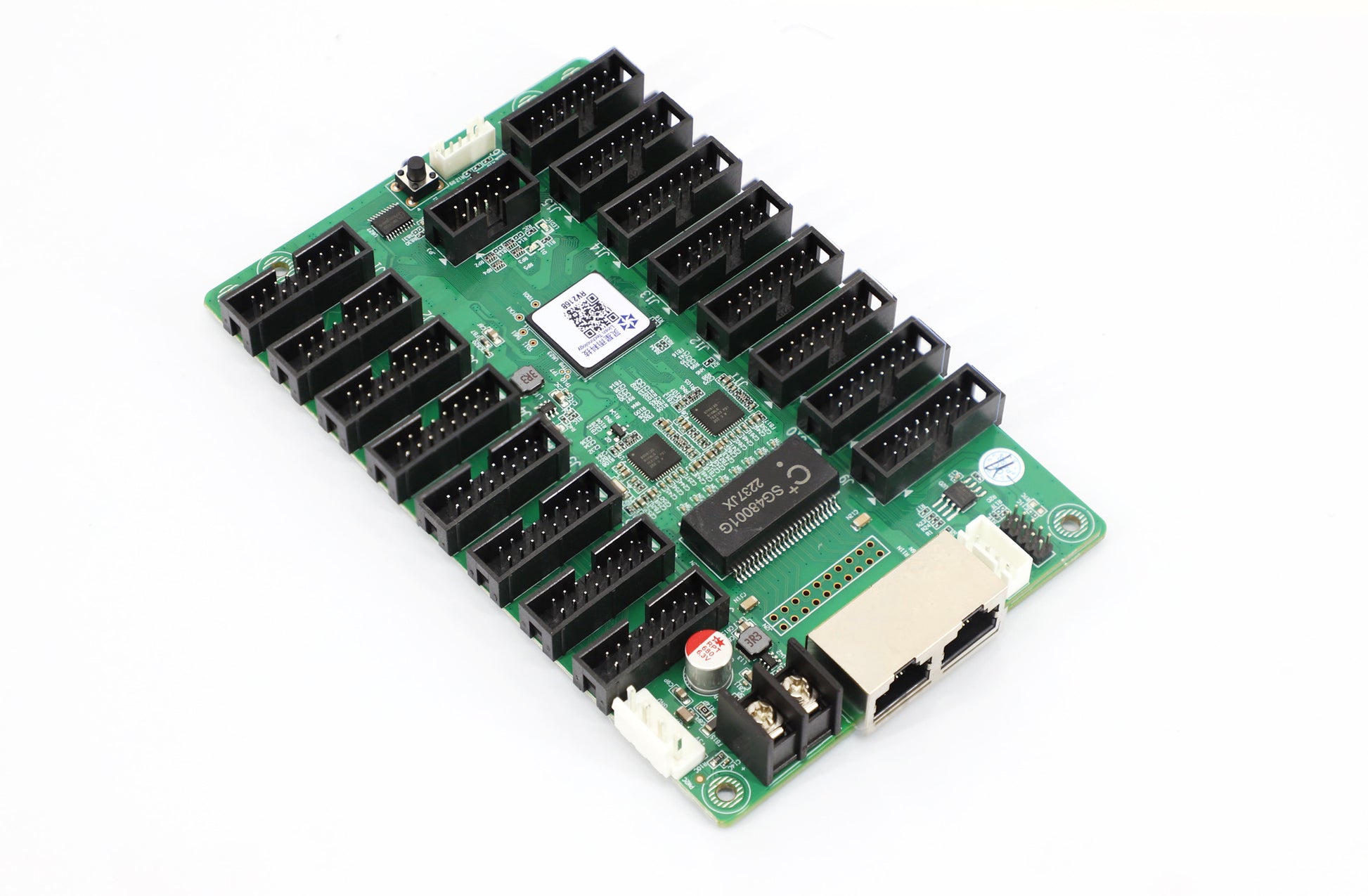

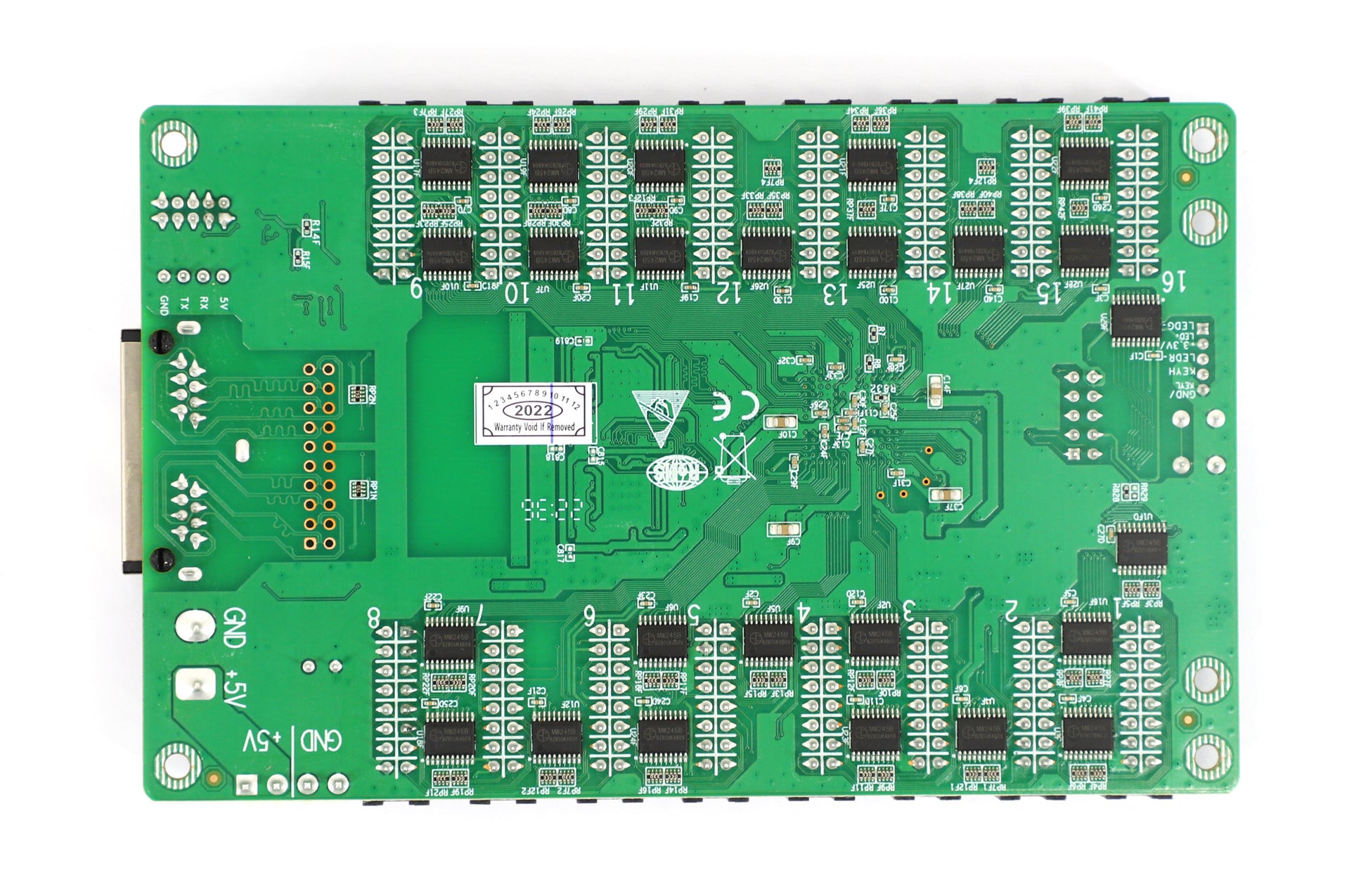

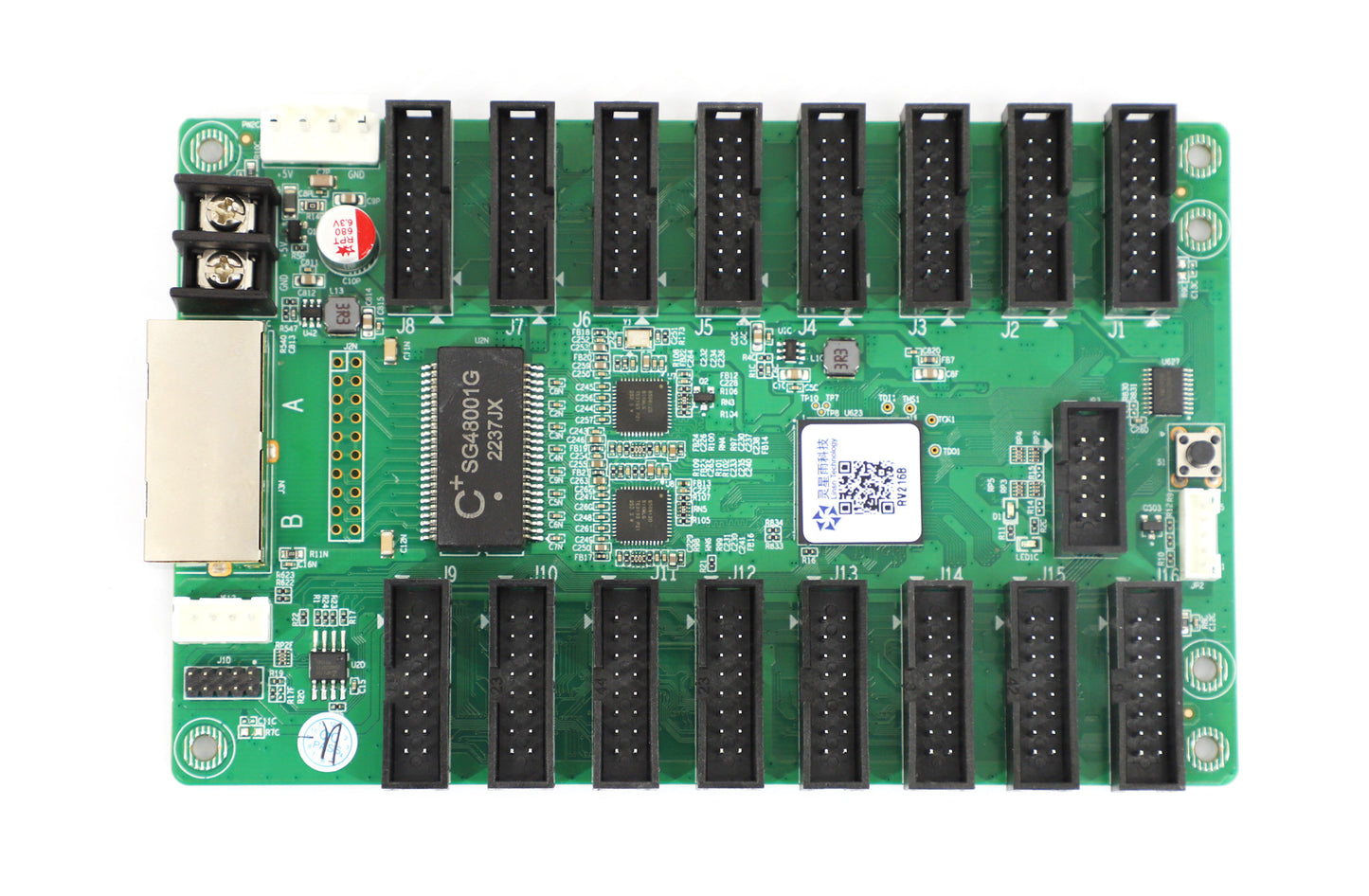

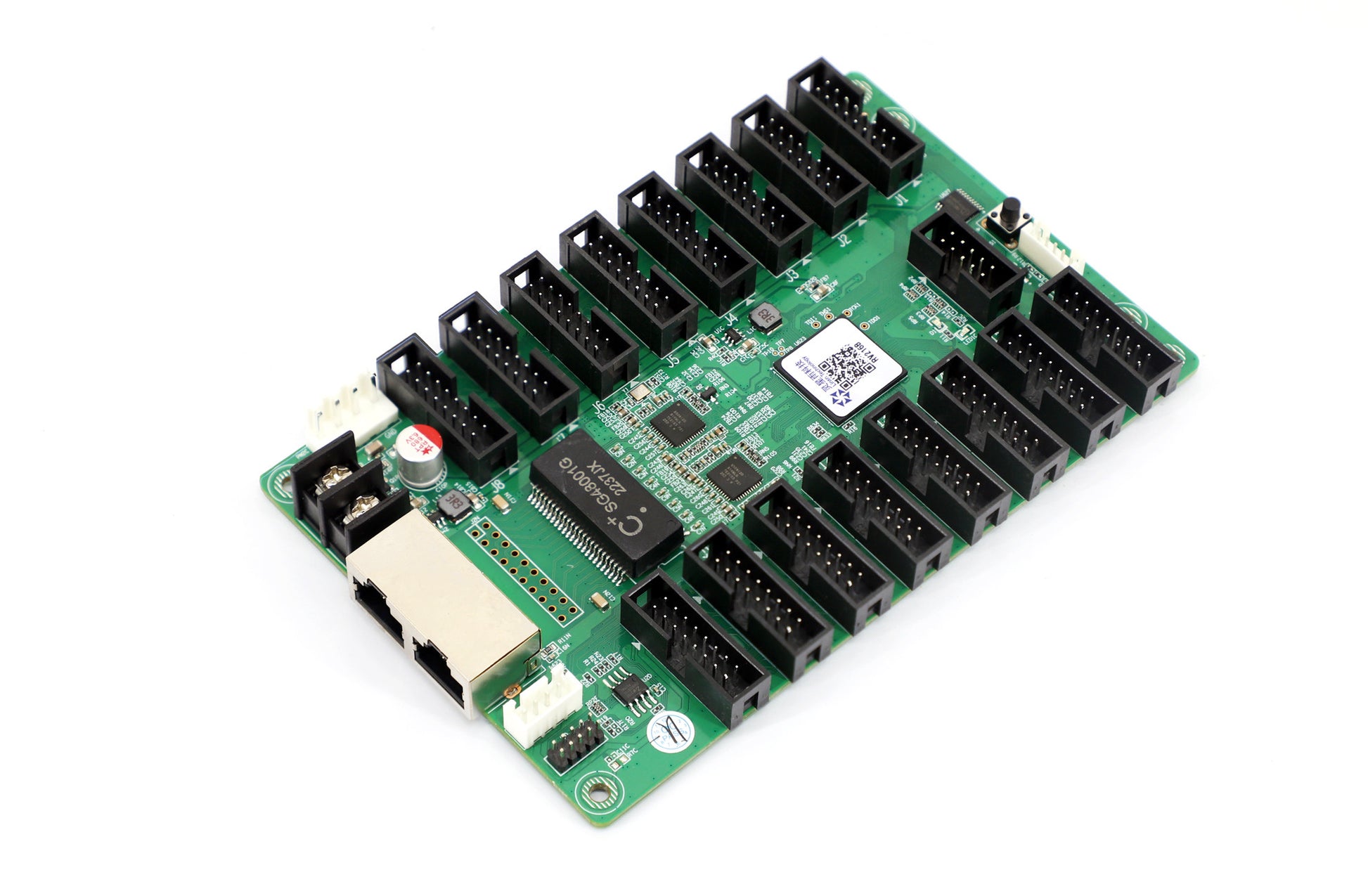

Linsn RV216B is a standardize product for LED screen manufacturer, which is integrated with 16 standard hub75-type connectors and does not require an extra hub card. One card supports up to 512*512pixels and up to 32 sets of RCG data.

Functions and features

1. Single card can support 32 group of RGB data output mode

2. Maximum supports 512X512(Please note that there are recommended values depending on the design of LED screen pixels)

3. Supports brightness calibration pixel by pixel and single-card color space conversion

4. Supports configuration file read back

5. Supports 138 decode, 595 serial decode and so on

6. Realizes high refresh and high gray level effect

7. Dual card backup
