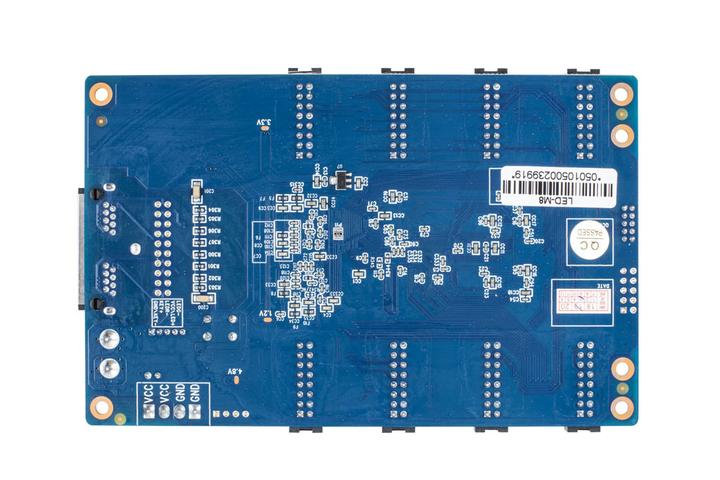

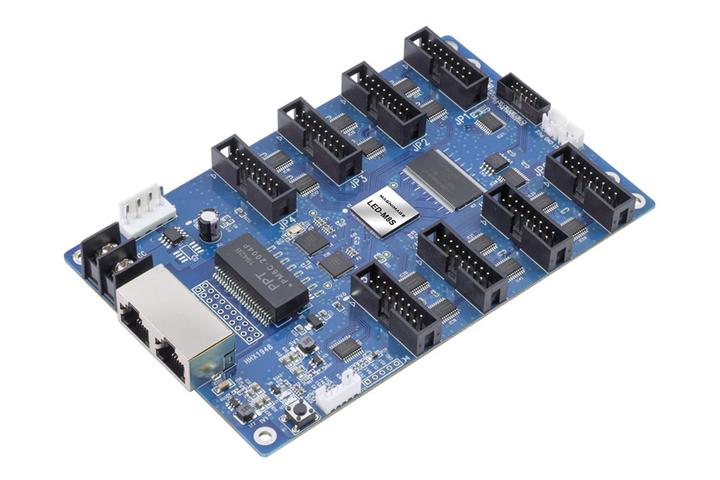

LED-M8S is a general-purpose FPGA receiver card from Magnimage, which integrates 8 HUB75 interfaces and carries a maximum of 96K (256*384) pixels on a single card, which is more stable and reliable with CLINK software to ensure the display effect.
1) 8 integrated HUB75 interfaces, no need for a HUB board.
2) Support 16 groups of RGB signal parallel output
3) Single card can carry 96K (256*384) pixels.
4) Safety upgrade, support mainstream chip upgrade free debugging
5) Support readback of receiving card parameters, support readback of firmware.
6) With network cable hot backup function
7) Support receiving card preset screen
8) Support display 90° multiplier rotation
9) Support all receiver card parameter monitoring functions
10) Support point by point correction, support for fast light and dark line repair
11) Support automatic data search
12) Support for intelligent sequencing
13) Support network port error monitoring
14) RoHS compliant
15) Comply with CE-EMC standards

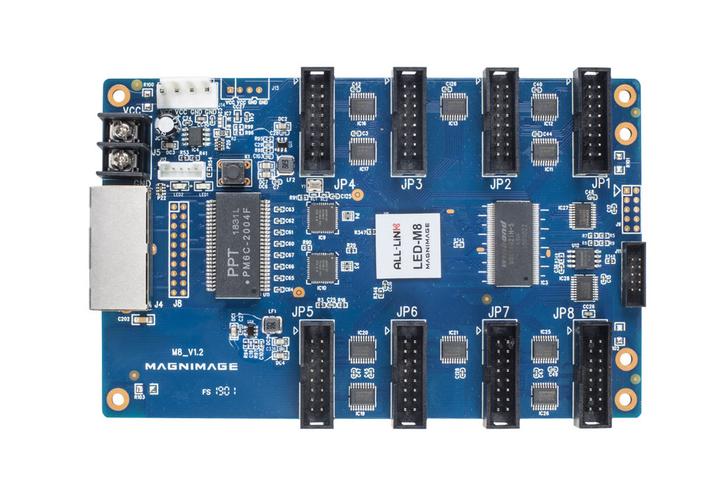

LED-M8 LED Receiving Card Features

• Integrate 8 HUB75E ports
• 16 groups of RGB signal parallel output
• Support 64K(256×256) pixels
• High refresh, high brightness, high grey levels
• Receiving card parameter backward reading
• LAN cable hot backup
• Support brightness, chroma point by point correction
• N×90° rotation
• Receiving card parameter monitoring

 LED-M8 LED Receiving Card Parameters
