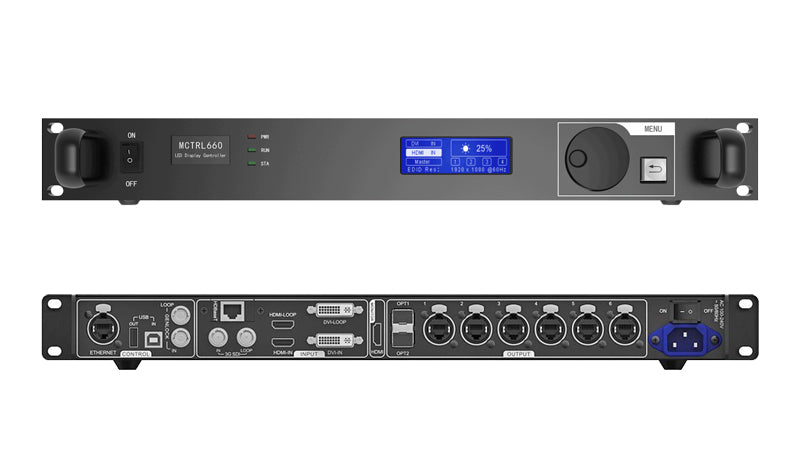

Novastar MCTRL660 send controller is a controller developed by Novastar with a single-unit loading capacity of 1920×1200@60Hz.

Nova Mctrl660utilizes UART to cascade and control multiple units.


Suitable for a variety of applications, especially rental and fixed installations such as stage broadcasts, monitoring centers, sports arenas, and more competitive mctrl660 price.

True hot backup, No flickering, no blackout
One-button upload of settings and parameters
12bit/10bit HDMI input, DVI input
HDMI.DVI loop output for cascading or monitoring
HDCP Blue-ray directly input
8bit video source loading capacity of 1920×1200@60Hz.
12bit video source loading capacity of 1440×900@60Hz

• 1 × DVI input

• 1 × HDMI input

• 4 × Gigabit Ethernet outputs

• Supports the new generation of NovaStar calibration technology, which is fast and efficient.

• Supports resolutions up to 1920×1200@60Hz and downward compatibility.

• Multiple controllers can be cascaded.

• Supports 18-bit grayscale processing and display.

• Manual screen brightness adjustment, which is fast and convenient.

• Quick screen configuration without using a computer.

• Adopts an innovative architecture to implement smart screen configuration, allowing a screen to be configured within 30 seconds and greatly shortening the stage preparation time.

• Adopts NovaStar G4 engine to realize a perfect display image with no flickering or scanning lines, as well as fine quality and good sense of depth.

• Supports a variety of video formats, as described in Figure 2-1.
