ELG-1 50 series is a 1 50W AC/DC LED driver featuring the dual mode constant voltage and constant current output. ELG-1 50 operates from 1 OO—-3O5VAC and offers models with different rated voltage ranging between 1 2V and 54V. Thanks to the high efficiency up to 91%, with the fanless design, the entire series is able to operate for -40°C +90°C case temperature under free air convection. The design of metal housing and 1P67/1P65 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-1 50 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system

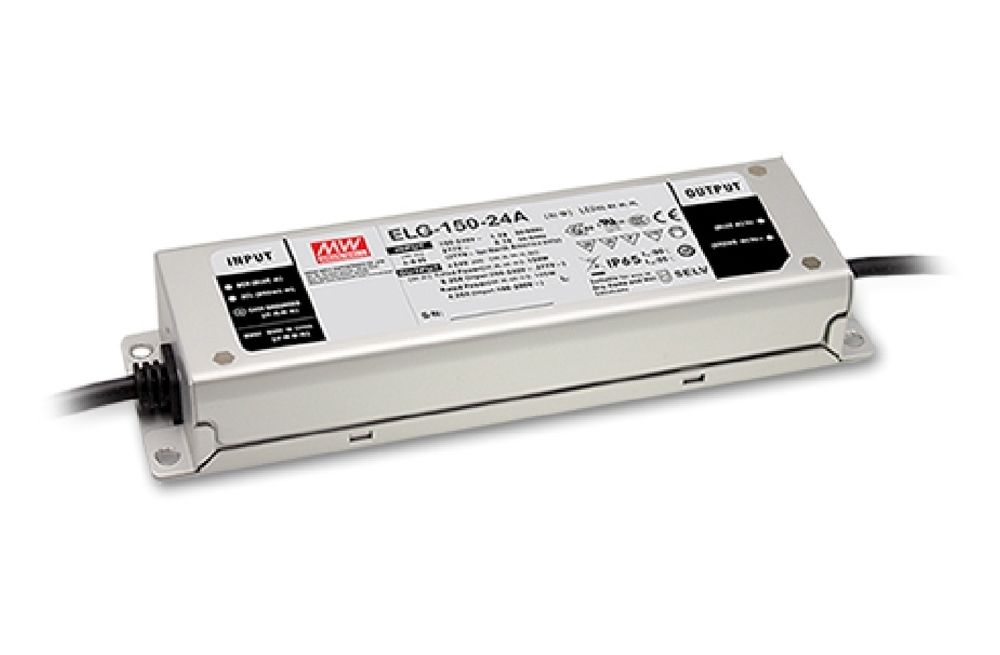

Meanwell ELG-150-24 / ELG-150-36 / ELG-150-48 Lighting Power Supplies Features:

Constant Voltage + Constant Current mode output
Metal housing design with functional Ground
Built-in active PFC function
No load / Standby power consumption <0.5W
1P67 / 1P65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer;
3 in 1 dimming (dim-to-off); Smart timer dimming; DALI;
Auxiliary DC output
Typical lifetime>50000 hours
