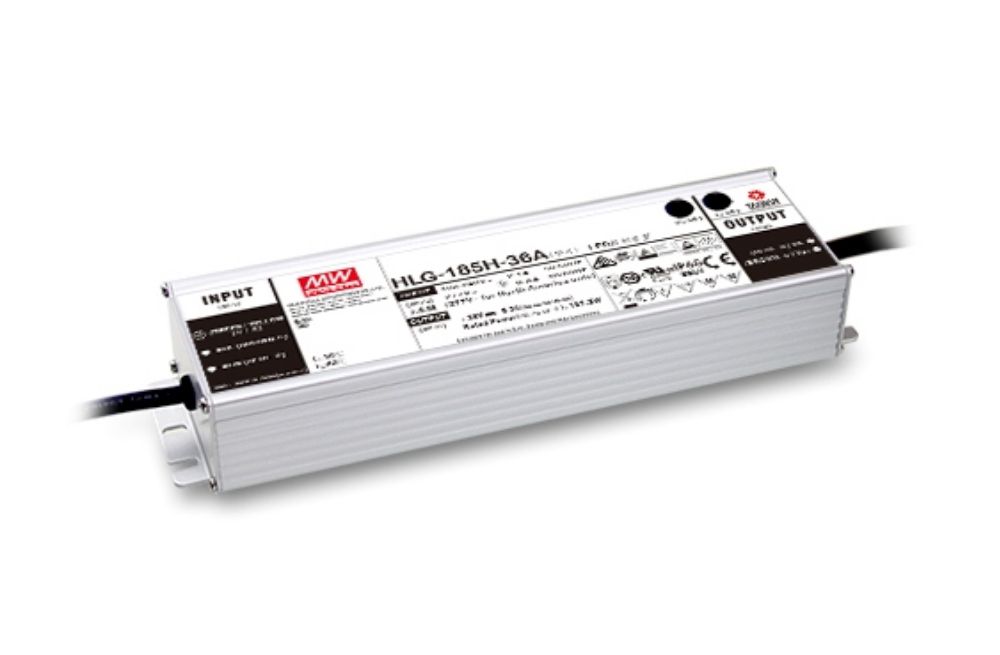

HLG-1 85H series is a 1 85W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HLG-1 85H operates from 90 3O5VAC and offers models with different rated voltage ranging between 1 2V and 54V. Thanks to the high efficiency up to 94%, with the fanless design, the entire series is able to operate for -40°C +90°C case temperature under free air convection. The design of metal housing and 1P67/1P65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-185H is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Meanwell HLG-185H LED Lamp Lighting Power Supply Features:

Constant Voltage + Constant Current mode output Metal housing with class I design lP67 / 1P65 rating for indoor or outdoor installations Function options: output adjustable via potentiometer; 3 in 1 dimming Typical lifetime > 62000 hours
